Half/Pack
®
Issued April 2018
Body Controller Hardware
Copyright 2018, Heil Environmental
Printed in the U.S.A.
Body Controller Hardware
80

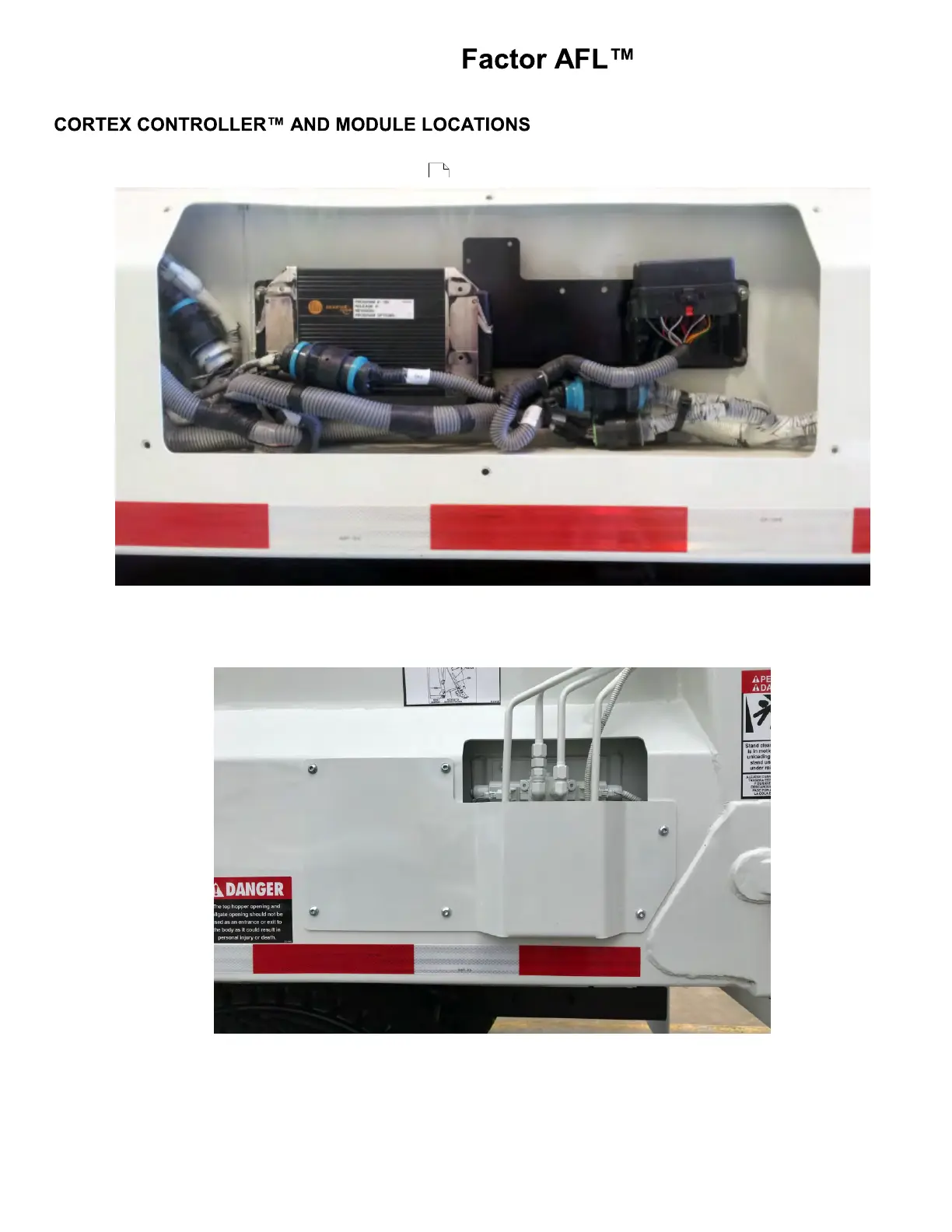

The 32-bit, 80 I/O Cortex Controller is located midway within the street side of the body behind a steel cover. See the
image below and Body Controller Hardware section .
Figure 22. Cortex Controller Location
The 32 I/O Cortex Controller Module is located on the street side of the body behind a steel cover, left of the tailgate valve.
Figure 23. Cortex Controller Module Location
79
