SIDE ACCESS DOOR PROXIMITY SWITCH
One 18mm sourcing or sinking proximity switch located by the side access door. This switch is adjusted properly when the
sensing gap between switch and target is 1/8”. See the figure below.
Side door must be closed and latched prior to adjustment of the side door proximity switch.

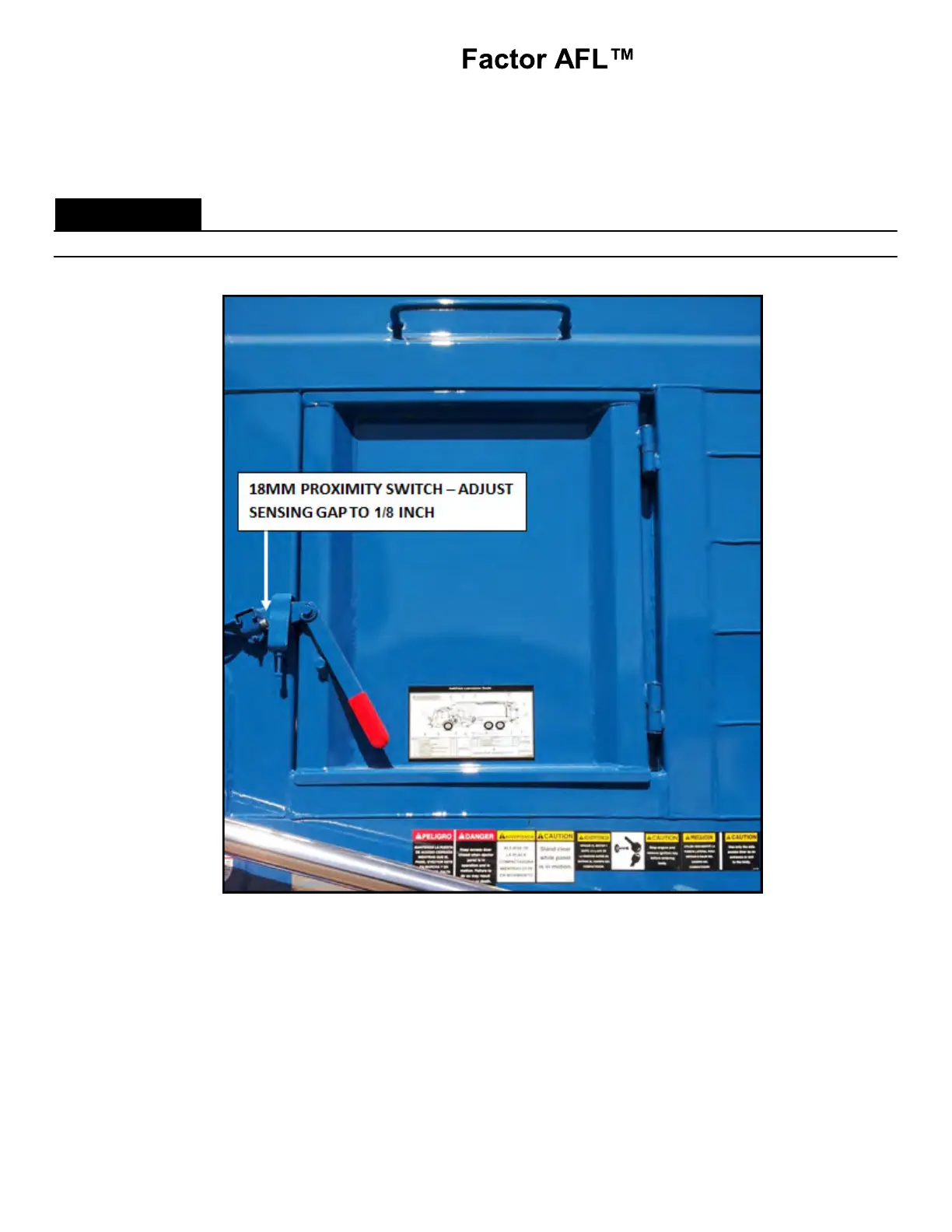

Figure 14. Side Door Proximity Switch
