Dover HEIL Half/Pack Factor AFL - Pin Number Diagram

Half/Pack
®
Issued April 2018
Body Controller Hardware
Copyright 2018, Heil Environmental
Printed in the U.S.A.
Body Controller Hardware
87
plastic for pin numbers 1 and 19 (top row left to top row right), 20 and 37 (middle row left to middle row right), and 38 and
55 (bottom row left and bottom row right).

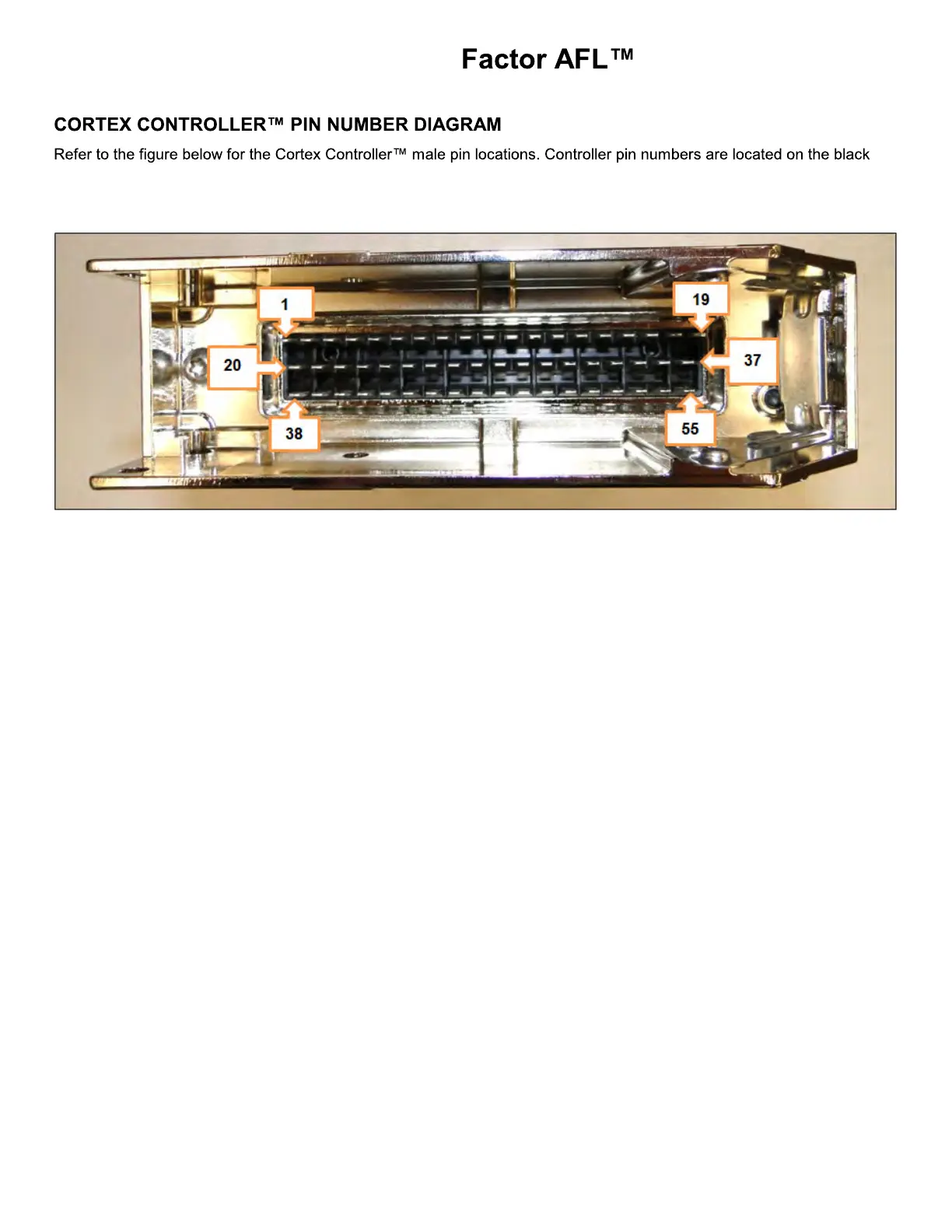

Figure 26. Controller Pin Number Locations (For 80 I/O, Same for Both Controller Sides)
