TORQUE FOR HYDRAULIC TUBES AND FITTINGS
FLAT FACE ORFS FITTINGS
SET WRENCH TO
NOMINAL TUBE OD
TORQUE WRENCH SETTING
ALTERNATE TORQUE UNITS
1/4"
21 ft-lbs.
250 in-lbs.
3/8"
33.5 ft-lbs.
400 in-lbs.
1/2"
50 ft-lbs.
600 in-lbs.
5/8"
50 ft-lbs.
600 in-lbs.
3/4"
75 ft-lbs.
900 in-lbs.
1"
105 ft-lbs.
1260 in-lbs.
1-1/4"
130 ft-lbs.
1560 in-lbs.
1-1/2"
178.5 ft-lbs.
2140 in-lbs.

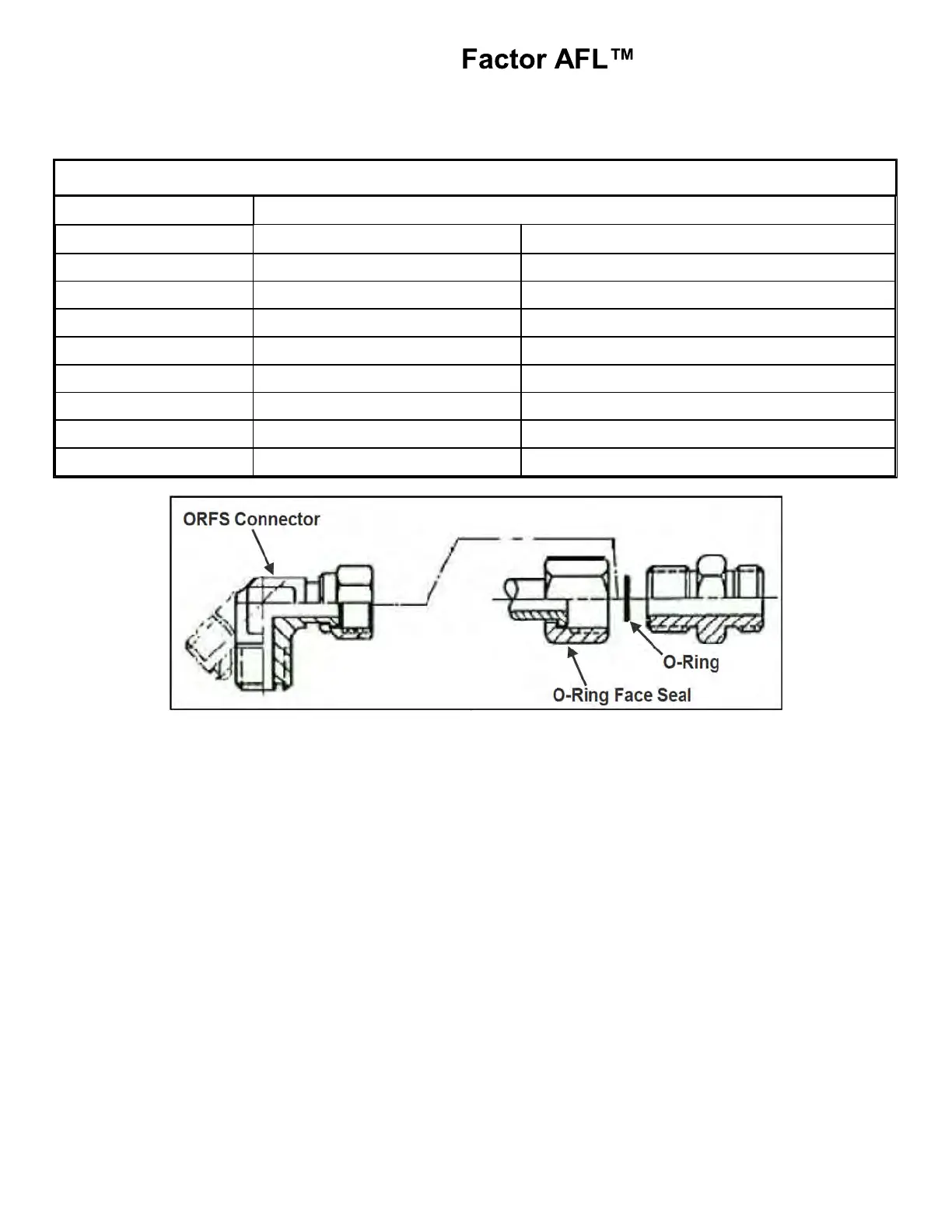

Figure 2. Torque for Hydraulic Tubes and Fittings
