General Information
17

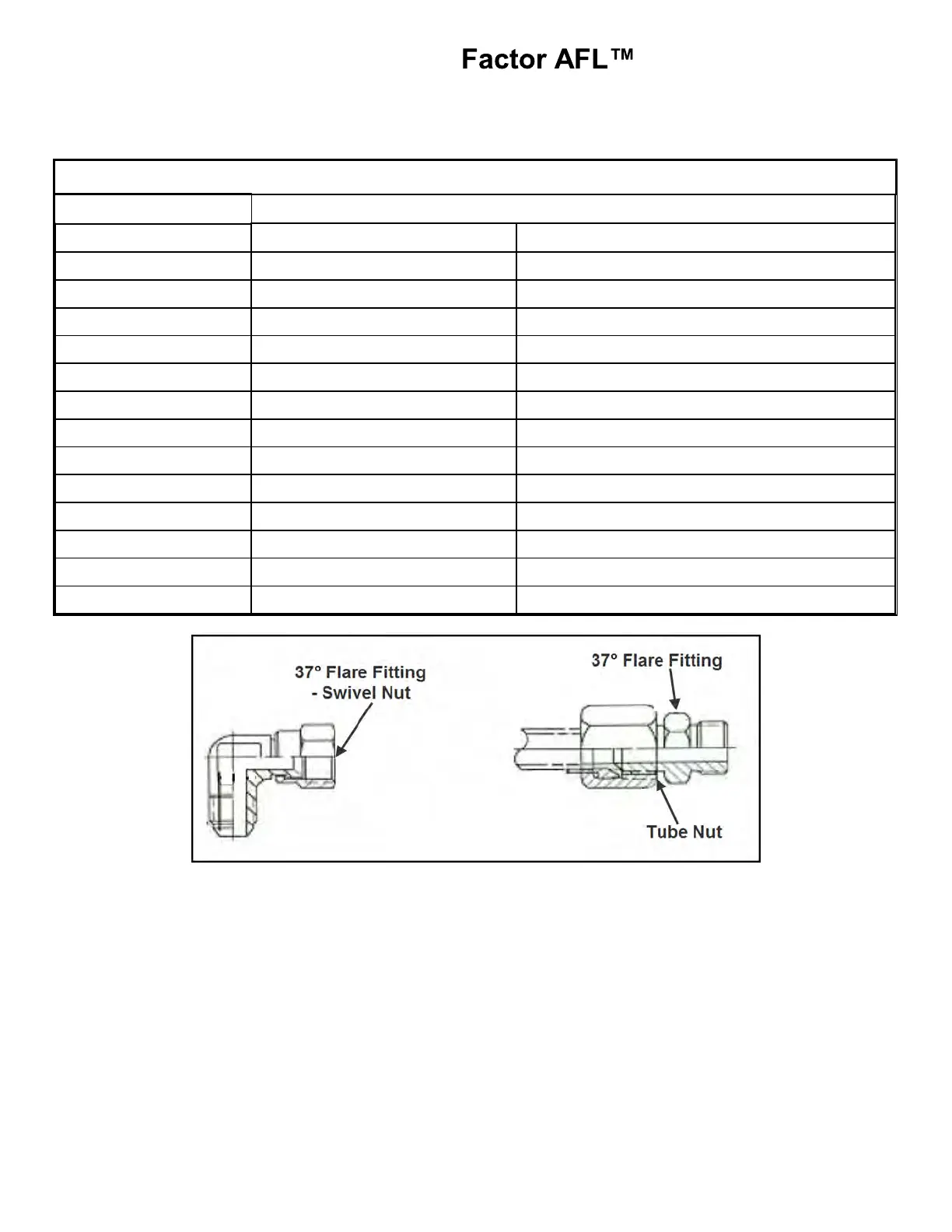

TORQUE FOR HYDRAULIC TUBES AND FITTINGS (CONTINUED)
37 DEGREE FLARE (JIC) FITTINGS
SET WRENCH TO
NOMINAL TUBE OD
TORQUE WRENCH SETTING
ALTERNATE TORQUE UNITS
1/8"
6.5 ft-lbs.
80 in-lbs.
3/16"
9 ft-lbs.
110 in-lbs.
1/4"
12.5 ft-lbs.
150 in-lbs.
5/16"
16.5 ft-lbs.
200 in-lbs.
3/8"
21 ft-lbs.
250 in-lbs.
1/2"
41 ft-lbs.
490 in-lbs.
5/8"
64 ft-lbs.
770 in-lbs.
3/4"
89 ft-lbs.
1070 in-lbs.
7/8"
105 ft-lbs.
1260 in-lbs.
1"
130 ft-lbs.
1560 in-lbs.
1-1/4"
142.5 ft-lbs.
1710 in-lbs.
1-1/2"
178.5 ft-lbs.
2140 in-lbs.
2"
250 ft-lbs.
3000 in-lbs.
Figure 3. Torque for Hydraulic Tubes and Fittings
