CYLINDER SENSORS
Half/Pack (featuring Odyssey Controls) uses linear position sensors inside the street side arm and fork cylinders to transmit
recommended to calibrate these sensors annually to compensate for mechanical drifting of components. See Cylinder
Sensors / Arc Sensor Calibration.
Additionally, the unit uses high pressure proximity sensors (Part Number 063-0151) inside the tailgate lock cylinders (QTY
2), tailgate raise cylinder (QTY 1), and top door cylinder (QTY 1).
CYLINDER SENSORS / ARC SENSOR CALIBRATION
Cylinder Sensors Calibration may be needed when a cylinder with sensor or the arc sensor for the packer is changed and
needs to be re-calibrated. Calibration should be performed on an annual basis ONLY by authorized service personnel. This
procedure requires a password to place the unit in Calibration Mode. This password can be provided to authorized service
personnel by contacting Heil Technical Services at 866-310-4345.
NOTICE
The unit does NOT have to be placed in Service Mode prior to being placed in Calibration Mode.

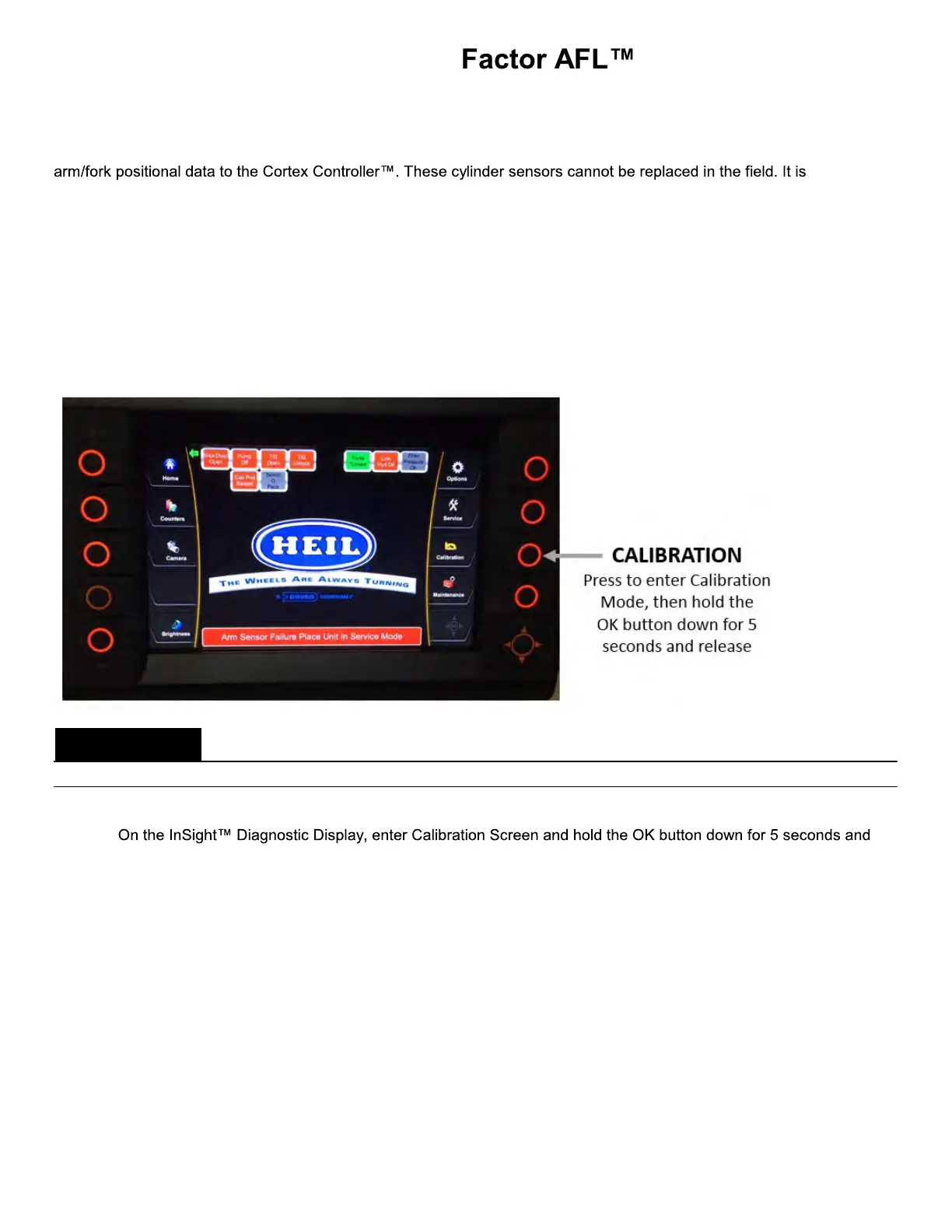

1. Place the unit in Calibration Mode
a.
release.
b. The password screen will appear on the display.
c. Enter the Calibration Password provided by Heil Technical Services and press OK. Contact Heil Technical
Services for the Calibration Password.
d. The display will now walk the Authorized Service Person through the calibration routine with prompts on the
display.
e. The Authorized Service Person can cancel the calibration routine at any point or skip a section by selection ESC
or SKIP from the menu.
