Dover HEIL Half/Pack Factor AFL - Body Nomenclature

Half/Pack
®
Issued April 2018
Body and Tailgate
Copyright 2018, Heil Environmental
Printed in the U.S.A.
Body and Tailgate
38
BODY NOMENCLATURE
The figure below shows the major components and their typical locations on the unit.

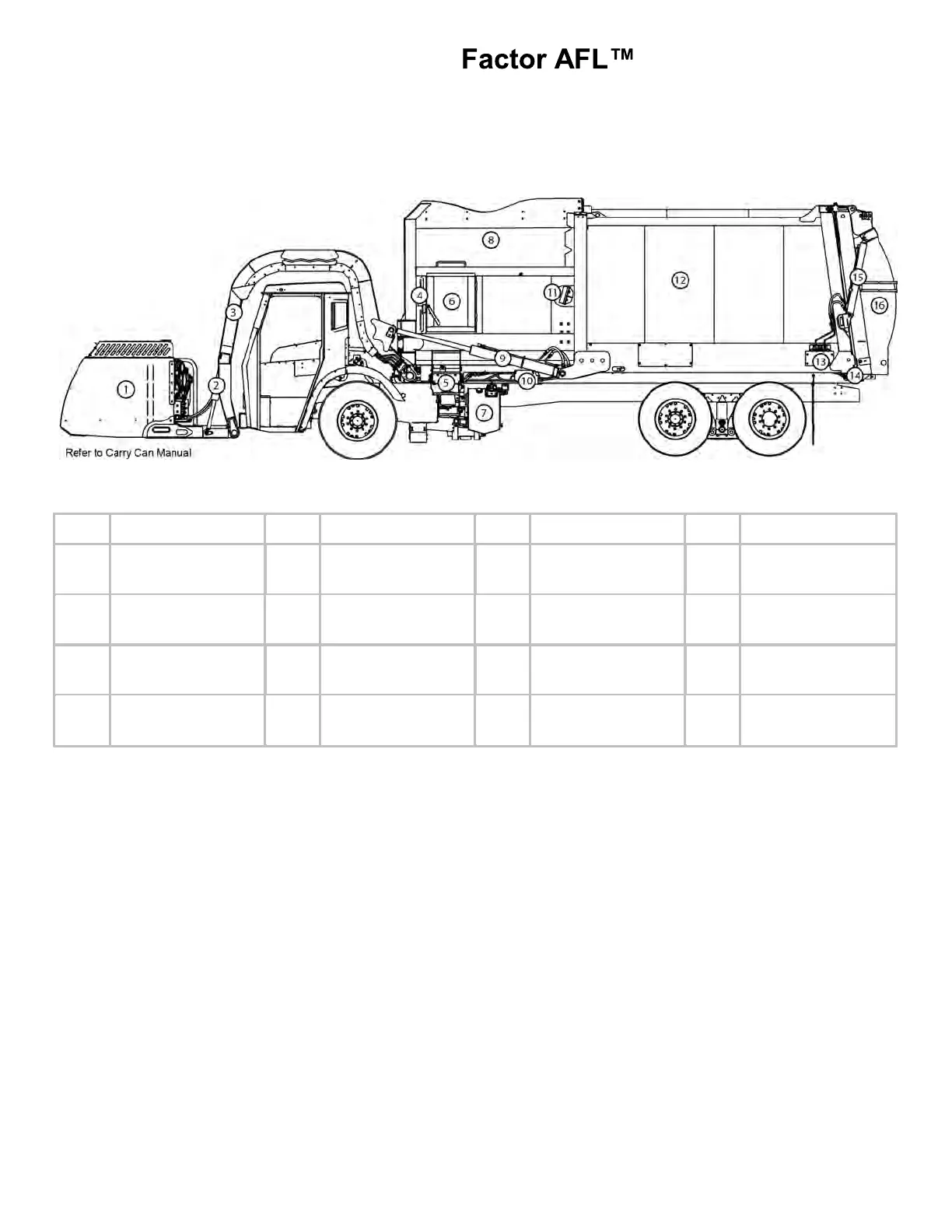

Figure 8. Body Nomenclature
NO.
DESCRIPTION
NO.
DESCRIPTION
NO.
DESCRIPTION
NO.
DESCRIPTION
1
CARRY CAN
5
SIDE DOOR ACCESS
LADDER
9
LIFT ARM CYLINDERS
13
TAILGATE VALVE
2
FORKS & FORK
CYLINDERS
6
SIDE DOOR
10
BODY VALVE
14
TAILGATE LOCK
CYLINDER
3
LIFT ARMS
7
HYDRAULIC OIL
TANK
11
ARM STOP
15
TAILGATE LIFT
CYLINDER
4
PACKER/EJECTOR
PANEL & CYLINDERS
8
HOPPER
12
BODY
16
TAILGATE
