Dover HEIL Half/Pack Factor AFL - Programming Cables and Adapters

Half/Pack
®
Issued April 2018
Body Controller Hardware
Copyright 2018, Heil Environmental
Printed in the U.S.A.
Body Controller Hardware
83

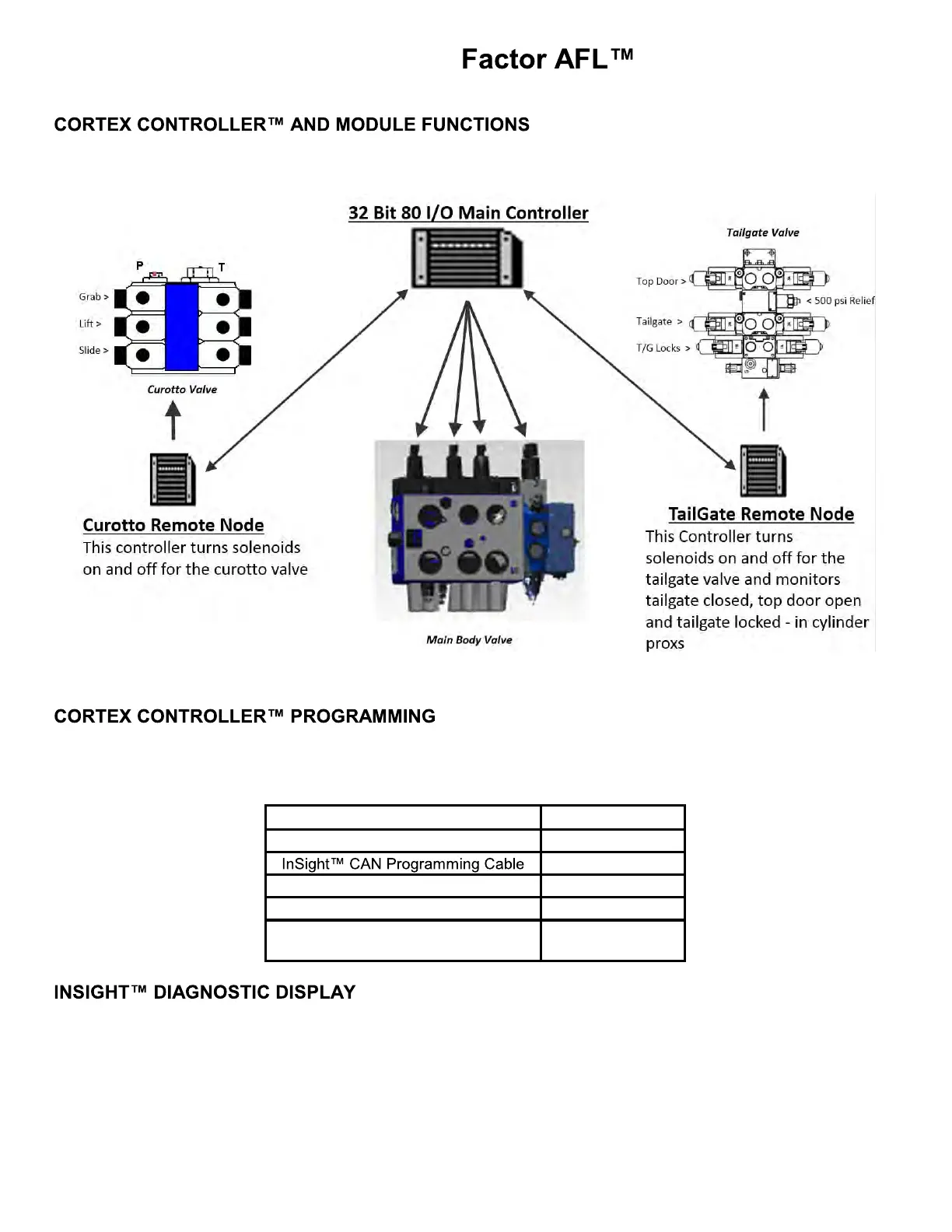

For residential units, remote controller nodes reduce wiring in the body harness and decrease troubleshooting time, i.e. if
power ground and signal are going to node, the tech then knows issues is between node and valve.
Contact Heil Environmental for re-programming of the Cortex Controller.
PROGRAMMING CABLES AND ADAPTERS
Description
Part Number
Cortex Controller RS232 Cable
263-1678
263-1721
USB to RS232 Adapter
108-8619
USB to CAN Adapter
108-8620
USB to M12 Cable (USB to 7" and
12" Displays)
108-8714
The Half/Pack Factor AFL comes standard with a 7" InSight Diagnostic Display or optionally with a 12" InSight Diagnostic
Display. Contact Heil for re-programming of the display.
NOTES
