INPUTS / OUTPUTS
A. Inputs
Inputs are signals the controller receives from sensors or switches. Examples being: Prox switch signals, fork cylinder
sensors, arm cylinder sensors, packer position sensor, pump on/off push button, system power button, packer extend or
retract push buttons and so on. Any switch or sensor that sends signals to the controller are called INPUTS. All inputs
can be viewed on the Cortex Controller InSight Diagnostic Display. These screens will show the state of all inputs. Once
you are on an input screen, you may need to scroll down to see all inputs on that screen.
Example Input:

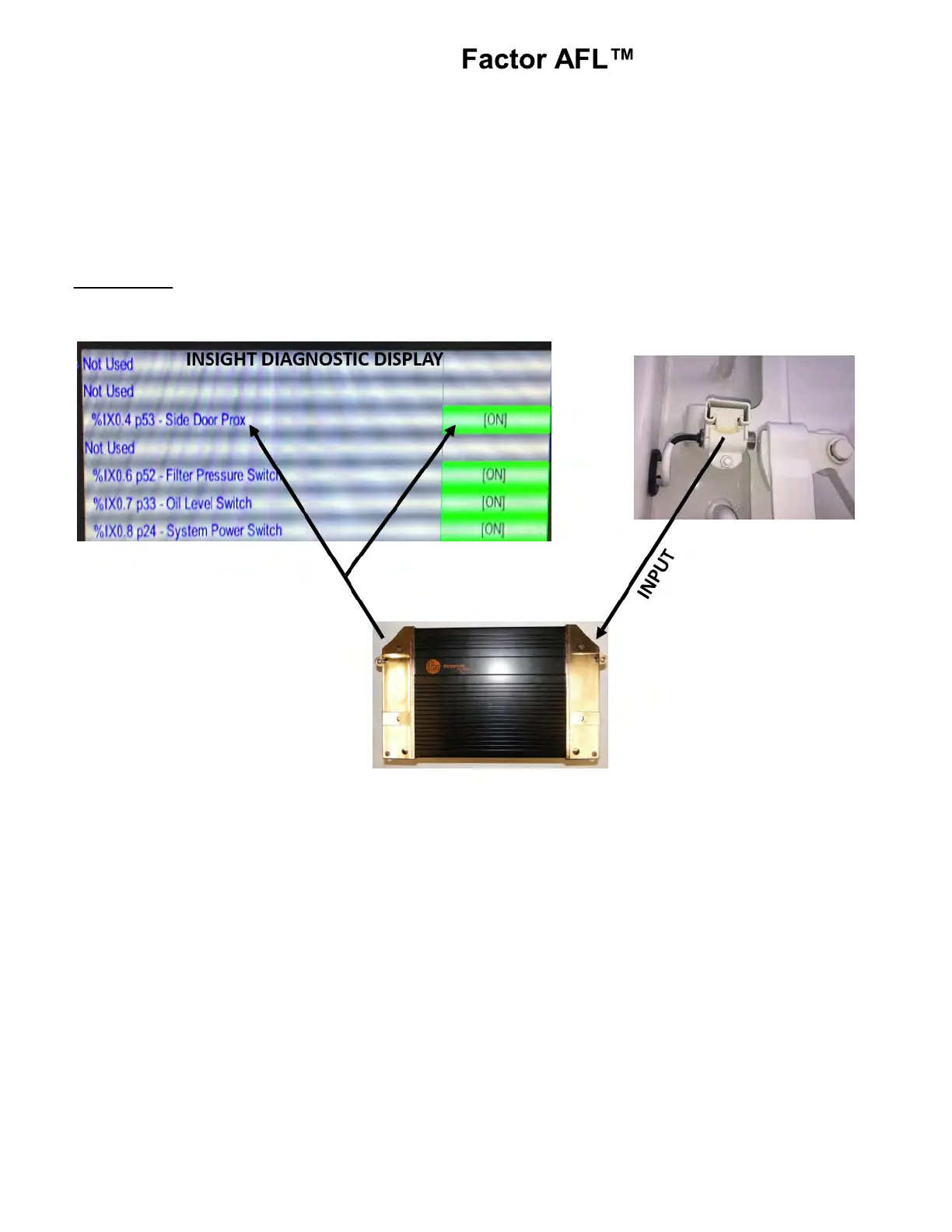

Side Door Proximity Switch is CLOSED: the signal from the Side Door Proximity Switch will travel to the Cortex
Controller. When this happens, the InSight Diagnostic Display will show the Input to be ON. See the figure below.
