INPUTS / OUTPUTS (CONTINUED)
B. Outputs
Outputs are signals sent out of the Cortex Controller to turn something ON or to make something happen. Any signal
that is sent out of the controller is an output. Output examples are: Signals sent to valve coils that move a valve spool or

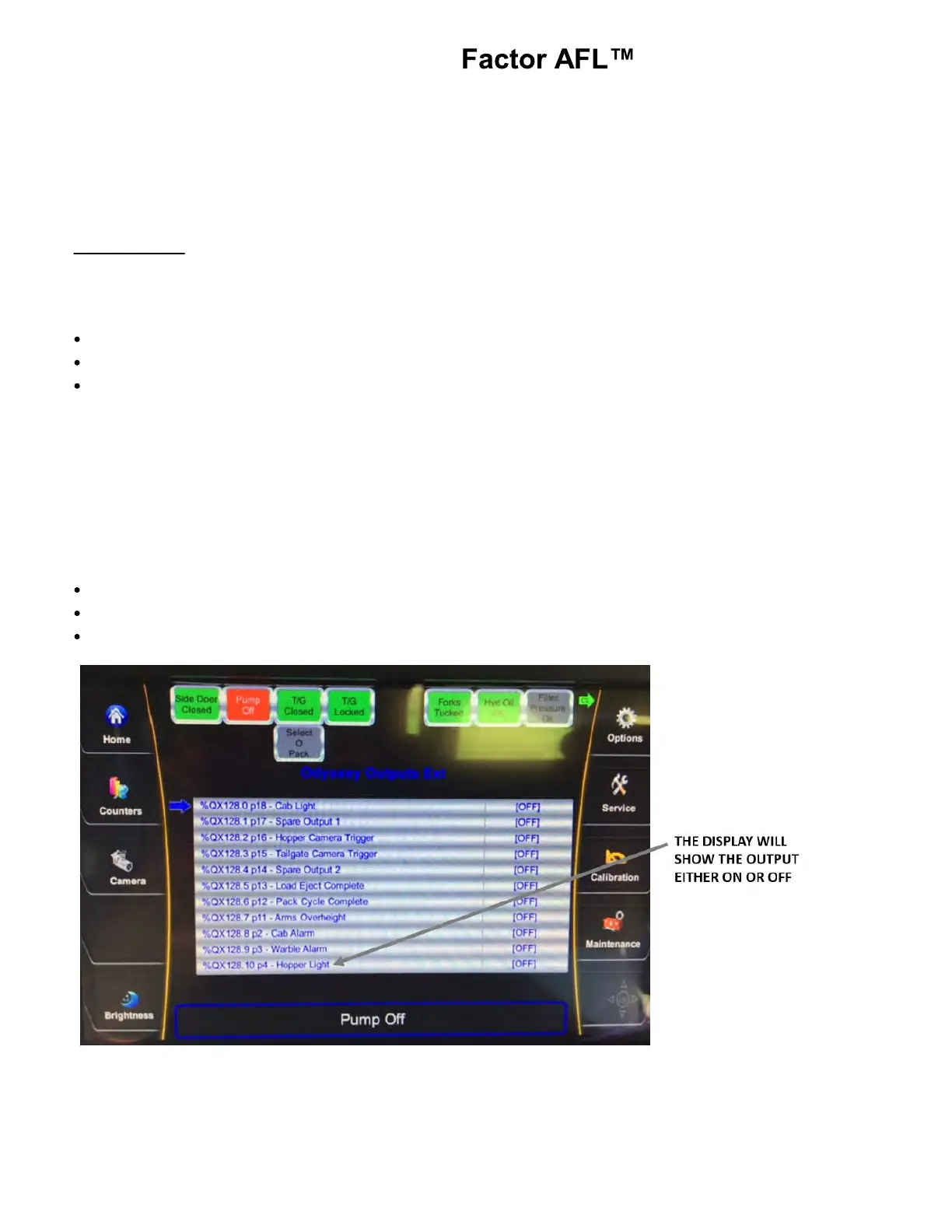

to turn on a light. See the figure below.
Example Output:
Hopper Lights are ON: Turning the HOPPER LIGHT switch ON sends an Input signal from the switch to the controller
and the controller sends an Output signal to the light to turn the light ON.
Output signals send power to:
Coils/Solenoids
Lights
Body Valve Coils/Pulse Width Modulation (PWM)
o Packer Extend PWM
o Packer Retract PWM
o Forks Up PWM
o Forks Down PWM
o Arms Up PWM
o Arms Down PWM
o Tailgate Flow PWM
o Curotto-Can Flow PWM
Curotto-Can Valve Coils/SOL
Tailgate Valve Coils/SOL
Screen readouts
