CUROTTO-CAN TOP WEEKLY CHECKS
Always complete an Operational Lock-Out/Tag-Out before starting inspection. If any check does not complete
successfully the Curotto-Can must be repaired before use otherwise the Warranty is void and equipment damage or
operator injury could result.

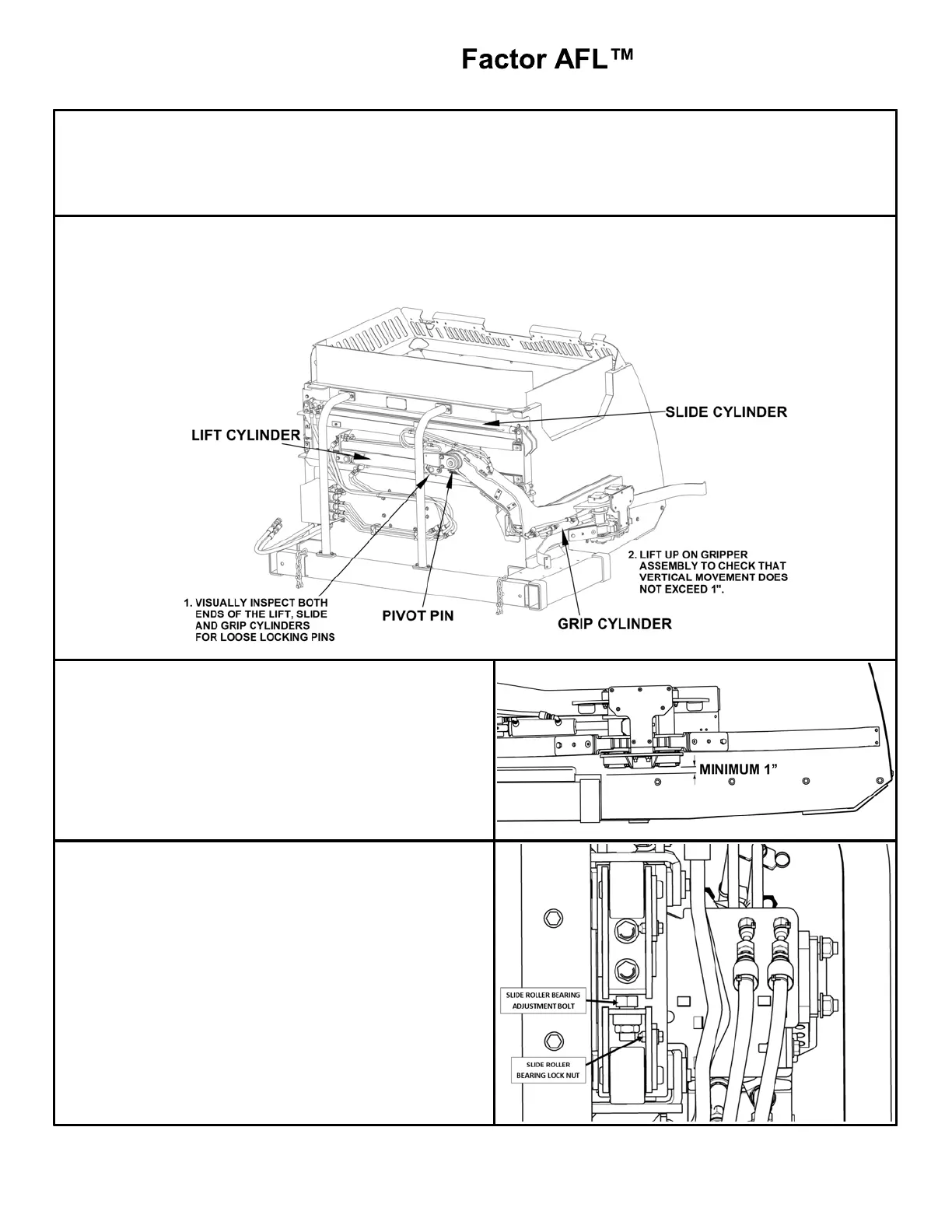

CYLINDER PIN CHECK / DUMP ARM PIVOT PEN CHECK
1. Visually inspect both ends of the Lift, Slide and Grip Cylinders for loose locking pins.
2. Lift up on Gripper Assembly to check that vertical movement does not exceed 1".
DOGBONE CLEARANCE CHECK
1. Check that the dogbone assembly is NOT sagging too
close to the fork pocket. There must be a minimum of 1”
between the dogbone and fork pocket.
2. If sagging, inspect pivot pin (see #1 for location) and the
wear strips (see item #4).
3. If sagging, also adjust the lower roller bearing adjustment
bolt (see Adjustable Roller for Slide/Carriage below).
ADJUSTABLE ROLLER FOR SLIDE/CARRIAGE
CHECK
As the slide track wears, the arm starts to slump and the
dogbone plate could come into contact with the fork tube.
Check for arm slump weekly and, if needed, adjust the lower
roller bearing position to keep the slide alignment parallel to the
carriage.
1. Loosen lower roller bearing lock nut.
2. Turn adjustment bolt counter-clockwise until slide is
parallel to the carriage.
3. Tighten lower roller bearing lock nut.
