The Heil InSight Display is the information center for the operator and troubleshooting tool for the service mechanic. The
next few pages cover basic functionality. For additional information, see Dedicated Half/Pack Factor AFL Cortex
in the Body Controller Software section of this manual.
For the operator, it shows operation warnings and explains why the system may prevent a function so the operator can
correct and operate in a safe and productive manner.
For the service technician, it displays information regarding sensor failures, and with proper training, can be used to test
sensors and other inputs and output functions.

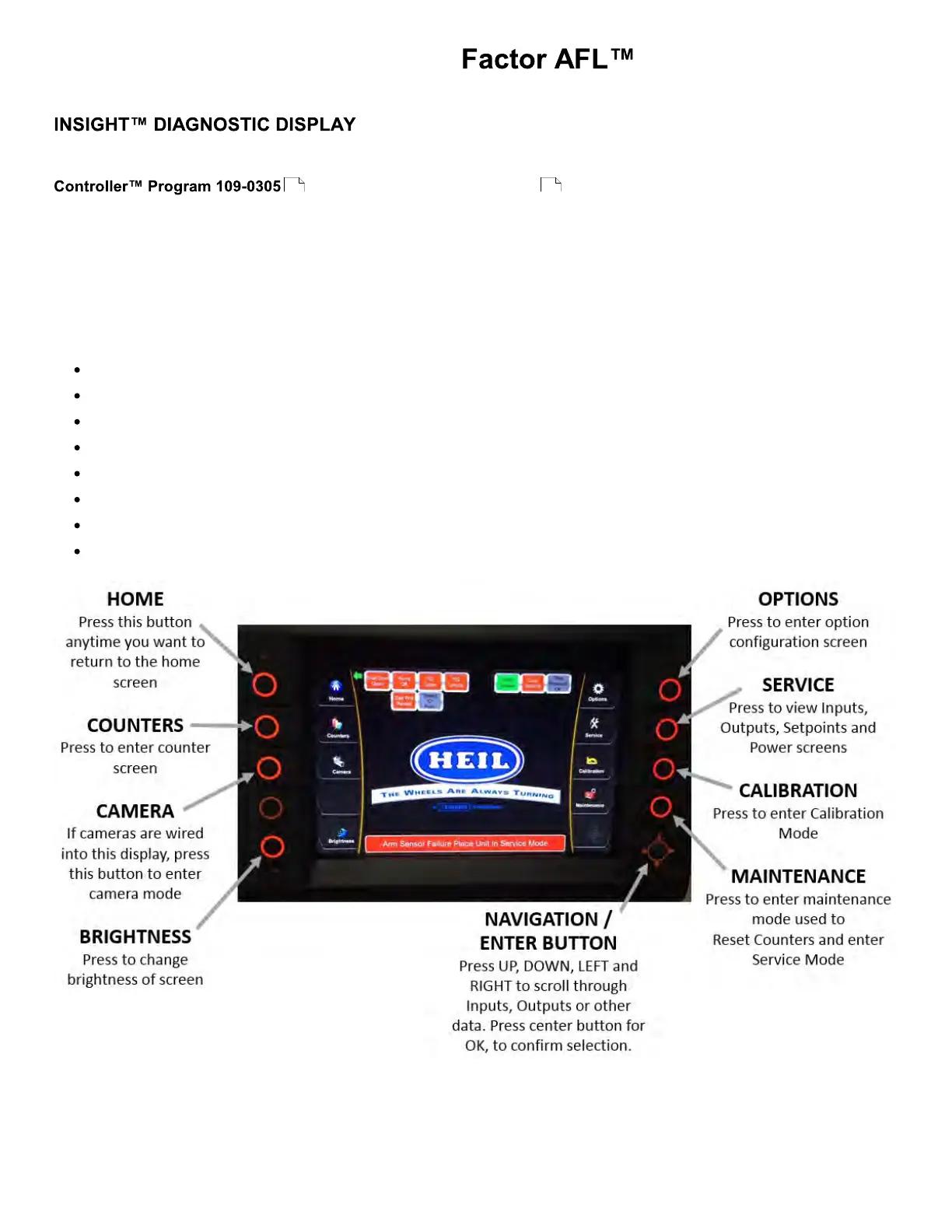

When the truck key switch is on, the home screen below will be displayed. This screen will show the operator various cab
control conditions, including if:
Pump is on/off,
Side Door is closed,
Tailgate is closed,
Tailgate is locked,
Select O Pack on/off
Forks Tucked
Hydraulic Oil Low/OK,
Filter Pressure OK.
