PREPARING THE UNIT TO CHECK THE OIL LEVEL
Before checking the oil level or adding oil, make sure the unit is in the following position with all cylinders collapsed:
Truck – on level ground
Tailgate and Body – fully down and locked
Packer Panel – at the front of the body
Forks – fully tucked
Lift Arms – fully raised
The oil tank is mounted behind the chassis cab. The oil level in the standard tank must be kept between the low and full
marks as indicated on the sight gauge. See the figure below.

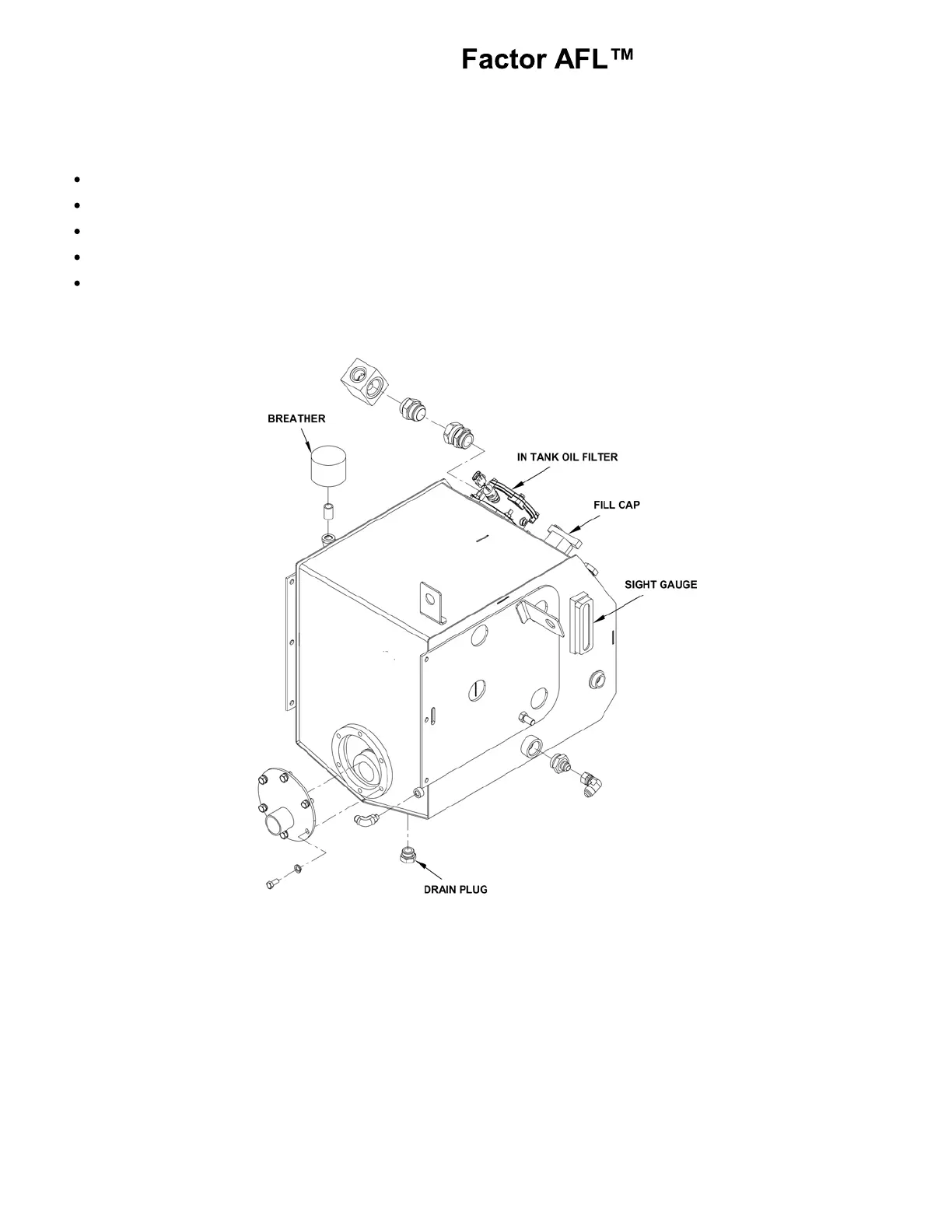

Figure 16. Hydraulic Oil Tank and Sight Gauge
