Dover HEIL Half/Pack Factor AFL - Curotto-Can Nomenclature; Curotto-Can Wear Parts

Half/Pack
®
Issued April 2018
Body and Tailgate
Copyright 2018, Heil Environmental
Printed in the U.S.A.
Body and Tailgate
40

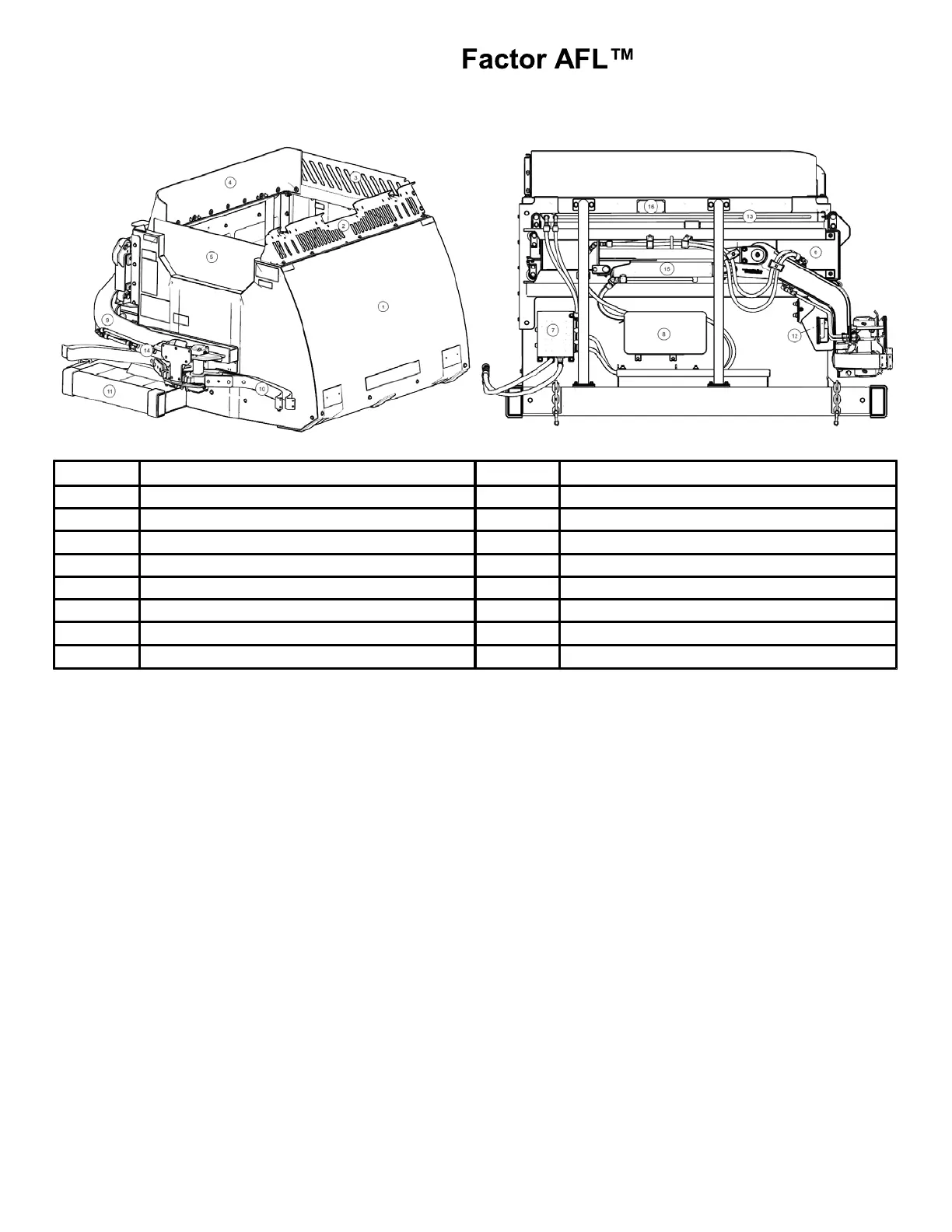

CUROTTO-CAN NOMENCLATURE
ITEM
DESCRIPTION
ITEM
DESCRIPTION
1
Curotto-Can Body
9
Grabber Beam Subassembly
2
Front Windscreen
10
Gripper Arms x 2
3
Street Side Windscreen
11
Fork Pocket Assembly x 2
4
Rear Spill Guard
12
Hinge Main Assembly
5
Curb Side Spill Guard
13
Slide Cylinder
6
Slide Assembly
14
Gripper Arm Cylinder
7
Hydraulic Valve/Manifold
15
Can Pivot Arm Cylinder
8
Controller Module
16
Serial Number Plate
NOTE: To order Curotto-Can replacements parts, refer to the Curotto-Can Parts Book and contact Heil Parts Central at
800-528-5308.
