Follow these steps to assemble the Cortex Controller Cable.
A. Cable and Controller Parts Identification
See the figure below to identify the 55-Pole Cable Connector parts.

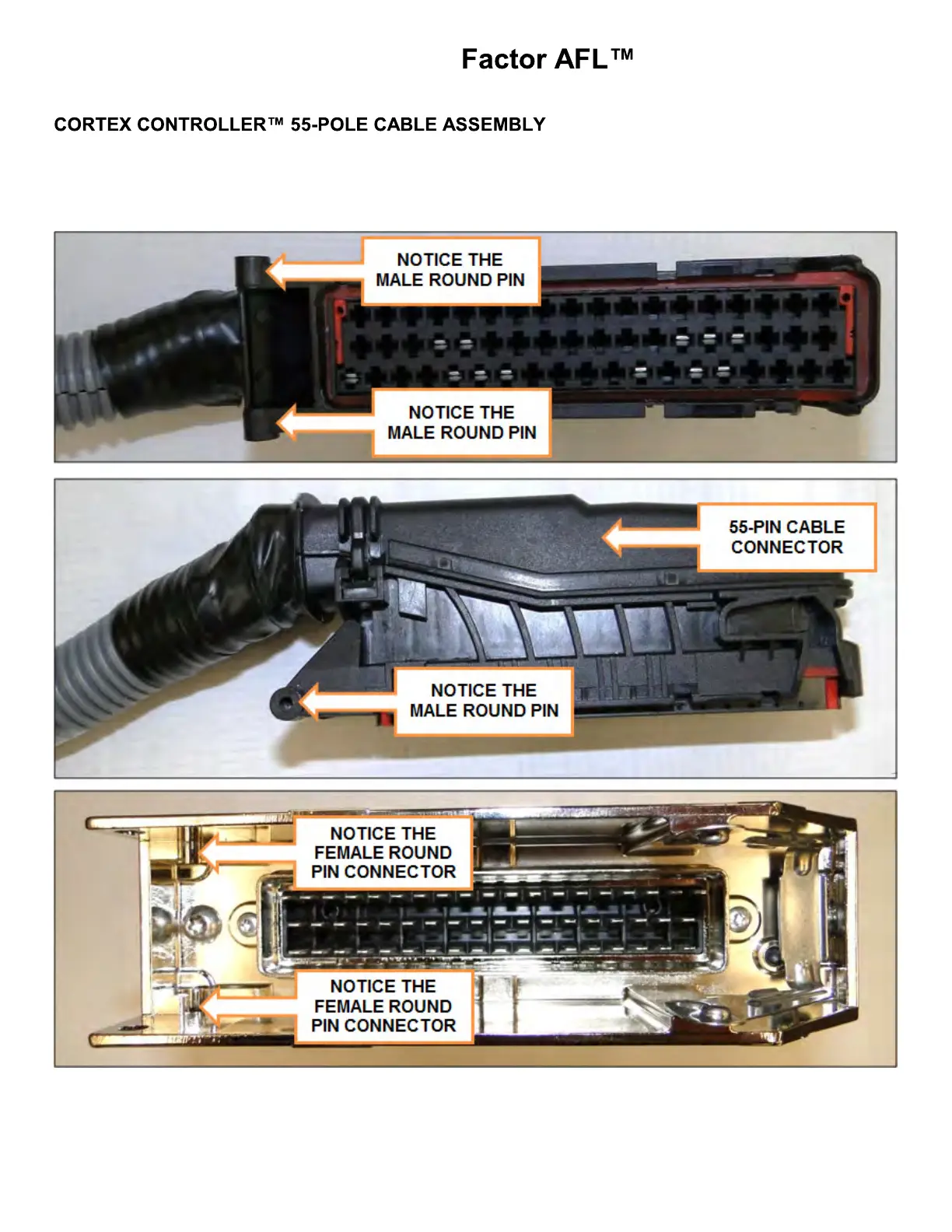

Figure 27. Cable Controller Plastic Male Hinge Pins and Controller Female Slot Connectors
