Body and Tailgate
52
INSTRUCTIONS OF INSPECTION FOR OVER-PACKING (CONTINUED)
C.Over-Packing Inspections
1. Thoroughly clean the inside and outside of the body before you inspect the unit for cracks.
2. Inspect for cracks in the metal of the unit as shown in the following illustrations. (The red dots indicate the inspection
points.) Check both sides of the body.
(a) For Point 1, check inside of body where the Packer track meets front hopper head.
(b) For Points 2 and 3, check underneath the body:
For Point 2, check the top edge of cross shaft lug attachment to floor sheet
For Point 3, check the longmember to front subframe crossmember corner.
(c) For Points 4 and 5, check:
For Point 4, check the lower joint at which the three bolsters shown meet
For Point 5, check around the boss for the pin to attach the arm cylinder.
(d) For Point 6, check the upper joint at which the three bolsters shown meet.
(e) For Point 7, check the body side at the center of the body and the bend in the body side sheet.
(f) For Point 8, check the end of the bolster on the body side.
(g) For Point 9, with the tailgate open, check the back surface of the rear body bolster.
(h) For Point 10, check the body roof sheet in the corner. See the figure on the next page.

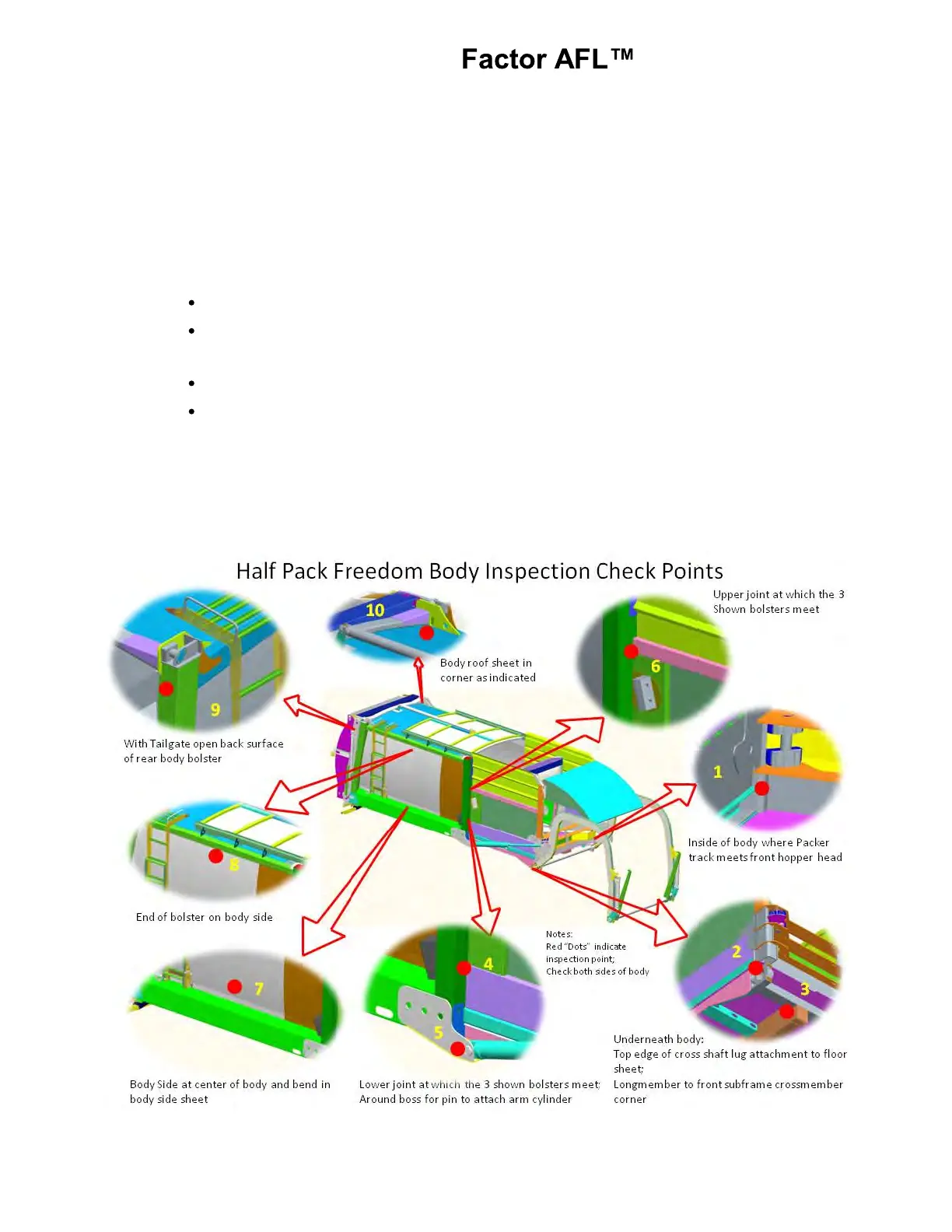

Figure 15. Front Loaders Body Inspection Check Points
