Body Controller Hardware
91
D.Pivot Cable Connector and Latch
1. While keeping left side of cable connector seated, carefully pivot cable connector until flush with controller. See the
figure below.

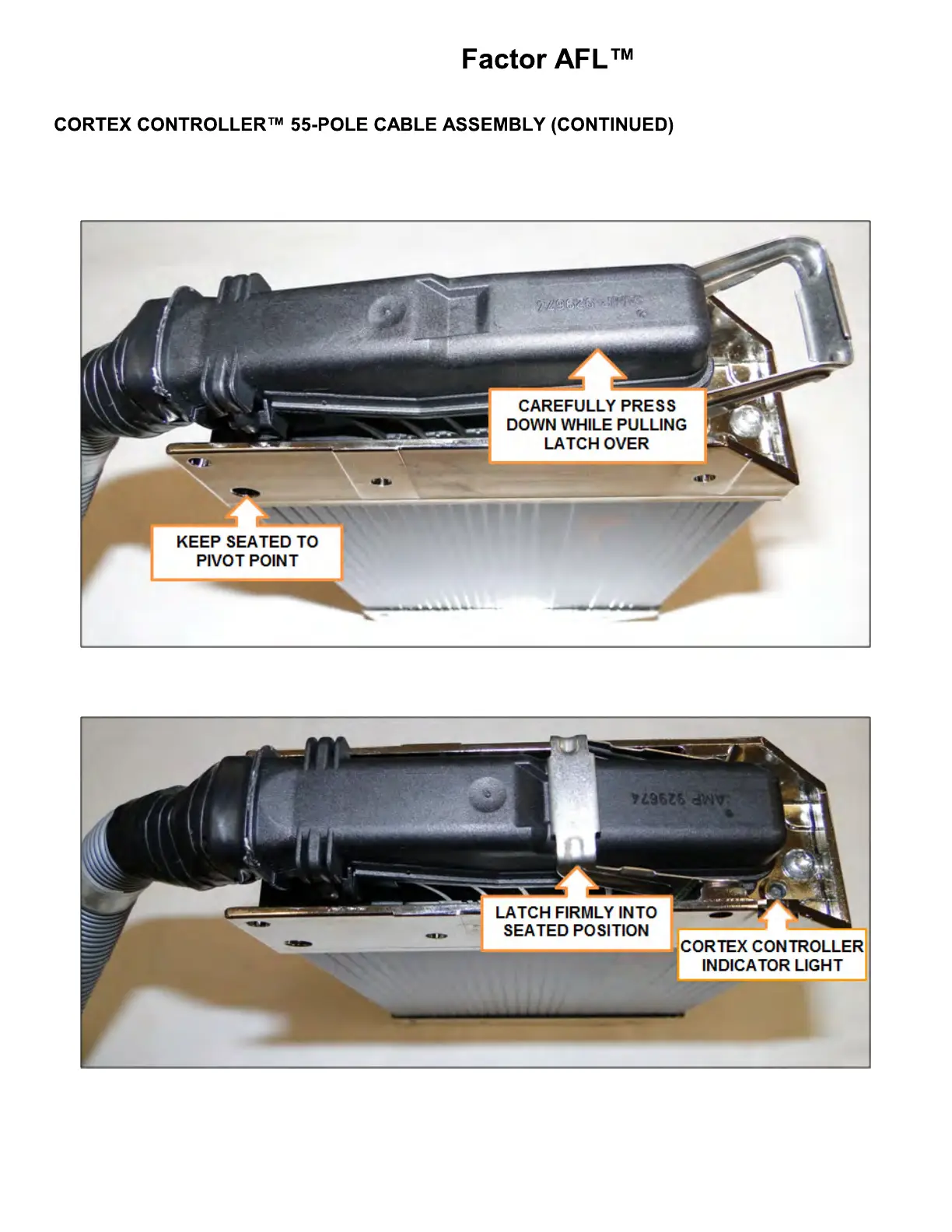

Figure 30. Slowly Press Down While Keeping Left Cable Connector Pivot Point in Place
2. Latch cable to controller until latch is secure and flush with rear of cable connector. See the figure below.
Figure 31. Latch Controller to Cable Connector
3. Repeat steps 1 through 5 to attach the second cable connector to the reverse side of the controller.
4. To remove cable from controller, reverse above process.
