W2940305 Rev 07 8/2019 Dover Fuelin
g Solutions
129

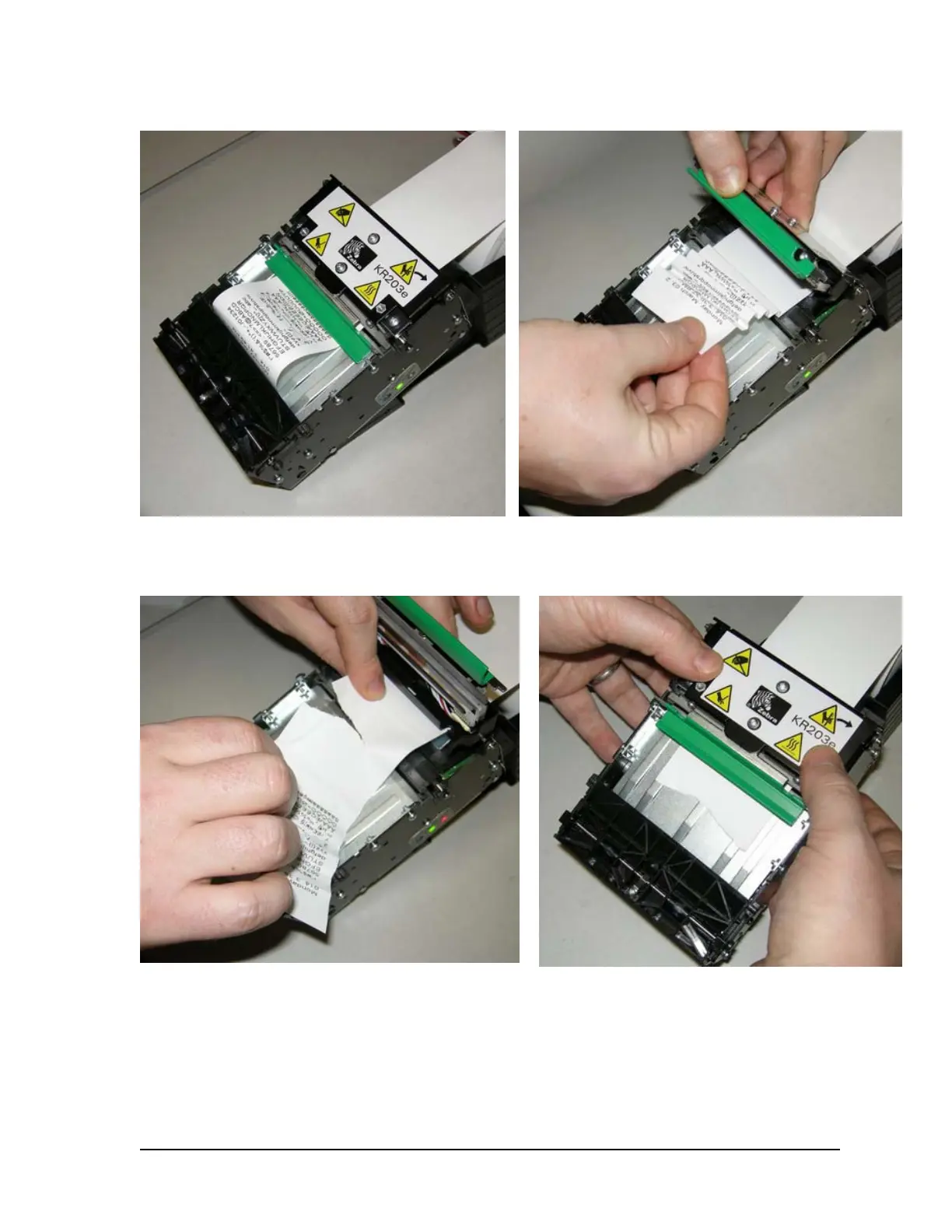

Clearing Paper Jams – 5 Flash Error
Paper Feed Error
–
5 Flash Erro
r
Push green lever forward. Lift print
head and lift paper away from cutter.
Tear paper.
Push print head down firmly until it latches. Printer
will automatically advance the paper and cut.
132
134
Table of Contents
Table of Contents
5
Introduction
9
Dispensers Covered
9
Model Description
10
Model Designation Format
11
Technical Information
12
Site Design & Preparation
15
Local, State, and Federal Codes
15
Safety Precautions
16
Ethanol and Bio-Diesel Installations
17
DEF Installations
17
Existing Installations
17
Island Construction, Dispenser Anchoring, Piping, and Bollards
18
Installation
19
Equipment Inspection
19
Typical Site Layout
19
Electrical Wiring
20
General
20
Electrical Termination Descriptions - All Dispensers
20
Electrical Termination Descriptions - Pulse Output Interface Option
21
Circuit Breakers & Emergency Electrical Disconnect
23
Grounding
23
Wire Type
24
Conduit
24
Gasoline & Diesel Hose and Accessories Installation
25
General
25
Vapor Recovery Nozzles
26
DEF Hose and Accessories Installation
26
Nozzle
26
Breakaway/Swivel
26
Hose
26
Sealant
26
Start-Up
27
Initial Checkout
27
Configuring the Dispenser Software
28
General
28
Making Configuration Changes
28
Configuration Start-Up (Units Without Price Displays)
29
Configuration Start-Up (Units with Price Displays)
30
Set the Pulse Output Resolution (Pulse Output Interface Option Only)
34
Operating Units W/ Pulse Output I/F Option before Control System Is Operational
36
Bleeding Product Lines
37
Initial Delivery
37
Meter Check (Calibration)
38
General
38
Accuracy Verification
38
Calibration Procedure
39
Voltage Test
40
Complete Installation
40
Complete Warranty Registration
40
Operation
41
Safety Items You Should Know
41
Portable Tanks and Containers
42
Health Note
42
Dispenser Operation
42
Displays
43
Electromechanical Totalizer
44
Restarting after Power Failure or Shutdown
44
Cycling Power to Clear Faults
44
Dispenser Statistics & Diagnostics
45
General
45
Password Protection
46
Changing Your Passwords
46
Viewing the Electronic Totalizers
48
Maintenance
51
Preventive Maintenance
51
Strainer/Filter - Gasoline & Diesel Dispensers
51
Strainer/Filter - DEF Dispensers
52
Cleaning and Corrosion Prevention Instructions
52
Meter Maintenance Issue
52
How to Get Service on Your Pump
52
Appendix A: Dimensions & Base Layouts
53
Appendix B: Electrical Ratings & Wiring Diagram
61
Electrical Ratings
61
Wiring Diagram: All Models
62
Appendix C: Pulse Output Interface
63
Pulse Output Interface Wiring Diagram
63
Pulse Output Interface Board Layout
64
Appendix C: Dispenser Current Loop & T7 Payment Terminal Connections
65
C.1 General
65
C.2 General Notes
65
C.3 Site Layouts
66
Site Layout a
66
Site Layout B
67
Site Layout C
68
Site Layout D
69
Site Layout E
70
Point-To-Point Dispenser to Fusion Forecourt Controller Wiring
71
Point-To-Point Dispenser to Fusion UDB Replacement Wiring
72
Point-To-Point Dispenser to Data Distribution Cabinet Wiring
73
Wiring Using One Data Distribution Cabinet (up to 16 Dispensers)
74
Wiring Using Two Data Distribution Cabinets (up to 24 Dispensers)
75
Payment Terminal RS485 Wiring
76
C.10 Ethernet Connection
77
Appendix E: Dispenser Software Configuration, Statistics & Diagnostics
79
General
79
Entering Functions and Statistics
79
IRC Commands
80
Changing Subfunction Values
81
Resetting Totals
81
Exiting Functions
82
Exiting Statistics
82
Quick Exit from Functions or Statistics
82
Pulse Output Interface Option Settings
83
E.10 List of Statistics
84
E.11 Meter Number Assignments
85
E.12 Configuration Functions
86
Appendix F: Local Authorize / Standalone Operation
99
General
99
Place Dispenser into Standalone Operation from Pulse Output
100
Place Dispenser into Standalone Operation from Serial Mode
101
Appendix G: Weights & Measures Mode
103
General Information
103
Upper Level Menu
103
Unit of Measure Menu
105
Pulse Output Menu
106
Automatic Temperature Compensation (ATC) Menu
107
Product Pressurization Menu
108
Program Change Menu
109
Meter Totals
110
Metrological Settings Menu
111
G.10 Metrological Configuration Parameter Definitions
112
G.11 Automatic Temperature Compensation (ATC) Testing
113
Appendix H: IX Fleet Fuel Control System
115
General
115
Power Requirements
115
Ethernet Connection
115
IX Fleet Board Setup
119
Appendix J: Bezel Security
121
General
121
Secure Access Modes
121
One-Shot Control
121
Local Passcode Control
121
Servterm Loading
121
Function Settings
121
Enabling Security Mode
122
Clearing a Breach
123
One-Shot Control Breach Clear
123
Localized Control Breach Clear
123
Maintenance/Service
124
Maintenance with One-Shot Control
124
Maintenance with Localized Control
124
Testing the Switches
125
Appendix K: T7 Receipt Printer
127
General
127
Description of Indicator Lights & Control Button
128
Replace Paper
129
Paper Jams
132
Appendix L: Error Codes
135
Appendix M: Internal Wiring & Connections
139
Internal Wiring
139
Internal Wiring - Ixfleet & Connectors
140
Appendix N: Warranty Registration
141
Warranty Registration Instructions
141
