Dräger Infinity Series User Manual

Page 8-12 Infinity Gamma Series VF4
Pulse Tone Source
You can select either ECG or SpO
2
as the pulse tone source. With
ECG as the pulse tone source, the tone’s pitch is constant (rather
than modulated -- see the chapter Pulse Oximetry) and a pulsating
♥ symbol appears in the HR parameter box with each detected
heart beat.

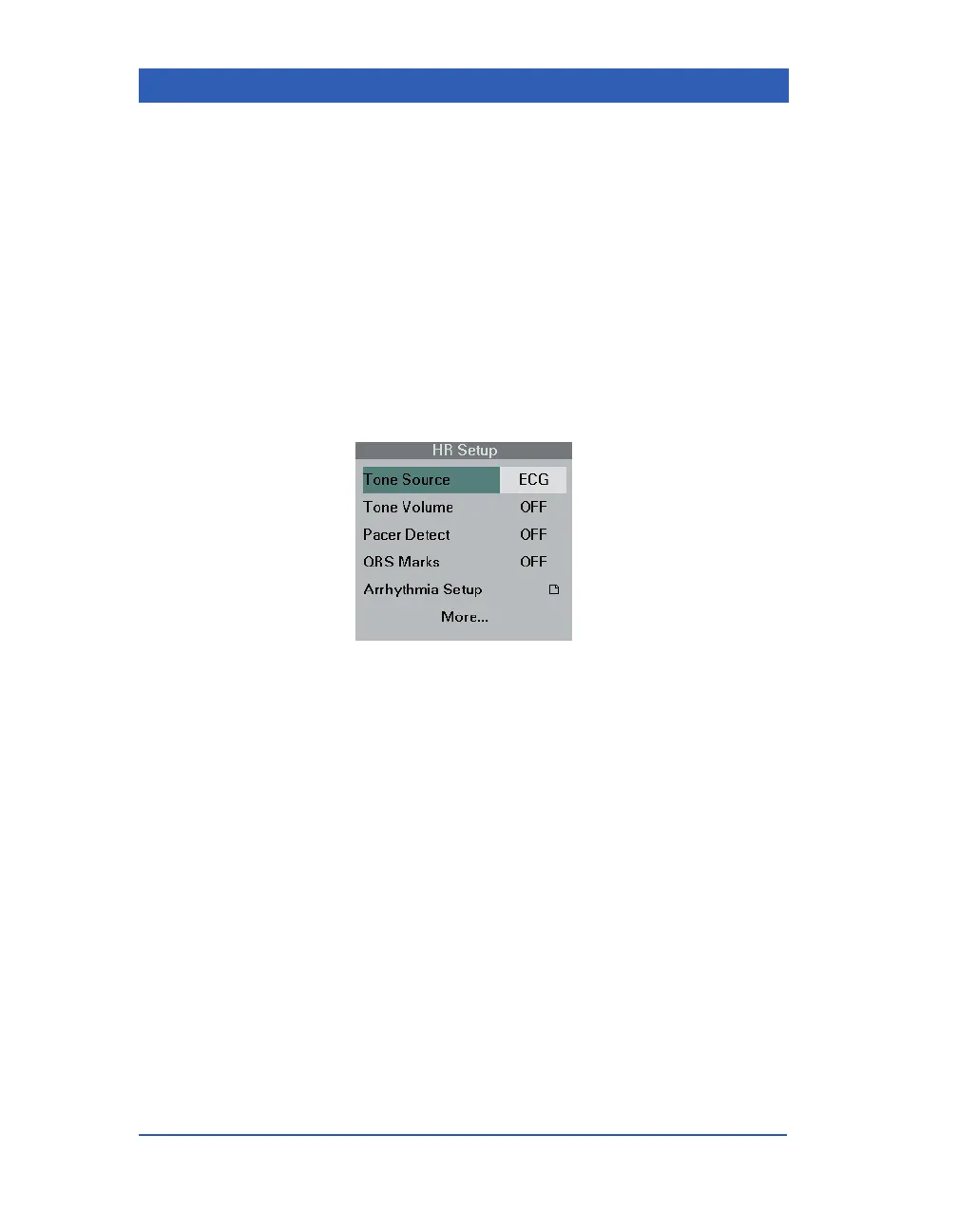

STEPS: Selecting the Pulse Tone Source
1. Click on the HR parameter box.
2. Click on
Tone Source.
3. Select
ECG and click the knob.

Dräger Infinity Series Specifications

General

Manufacturer	Dräger
Device Type	Patient Monitor
Weight	5 kg to 10 kg (depending on the model and configuration)
Connectivity	Ethernet, USB, WLAN (optional)
Parameters Monitored	ECG, SpO2, NIBP, Temperature, Respiration
Alarm System	Visual and audible alarms, customizable alarm limits
Device Category	Medical Device
Series	Infinity
Display	Color TFT
Display Size	12.1 inches
Power Supply	AC Power, Internal Battery
Battery Life	Up to 4 hours (depending on configuration)
