Dräger Infinity Series User Manual

Page 15-10 Infinity Gamma Series VF4
Measurement Tone
The end of an NBP measurement can be indicated by an end-of-
measurement tone (2 beeps). The loudness of the tone depends on
the setting for the monitor’s speaker volume. If the volume is
turned off, the tone does not sound.

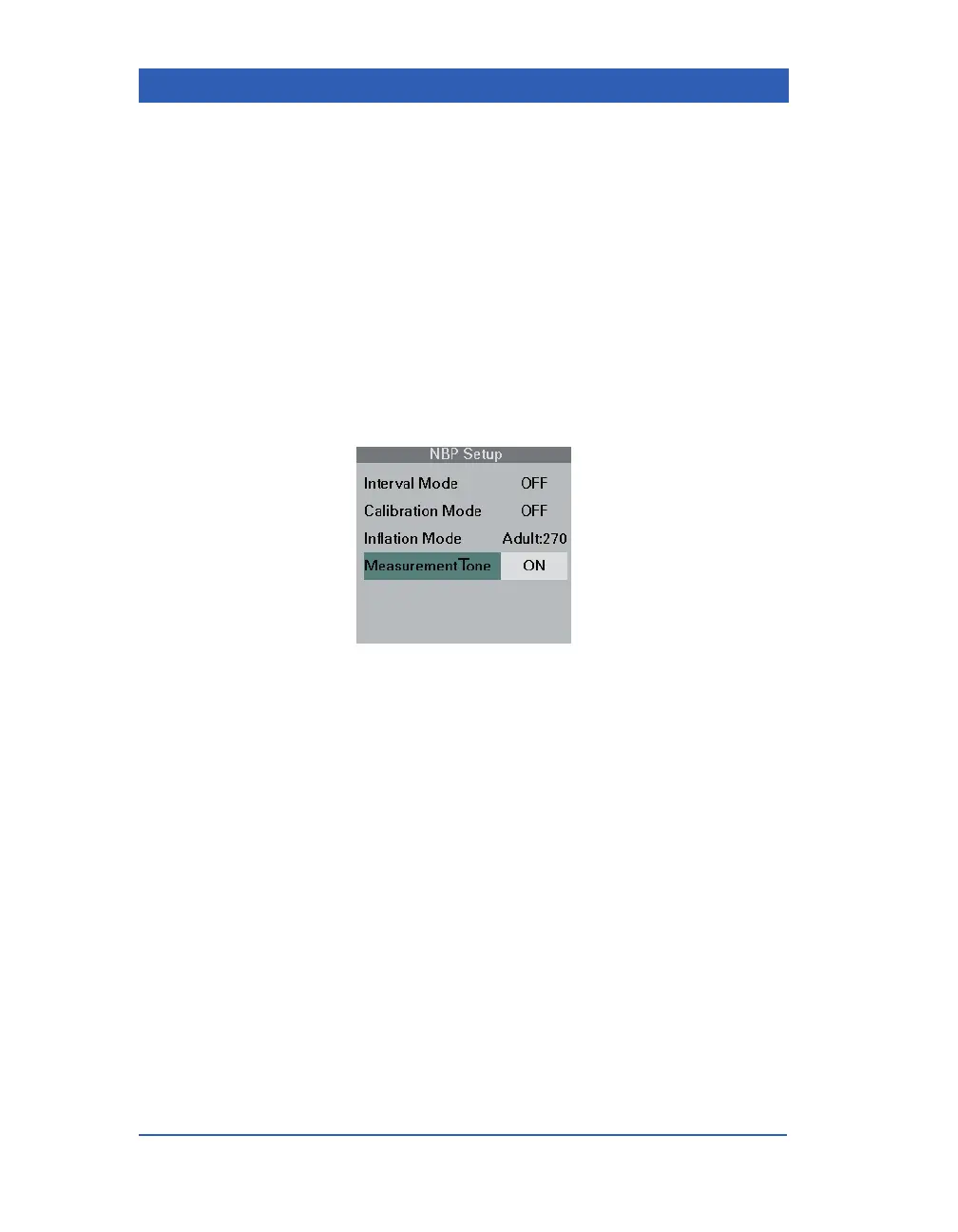

STEPS: Turning the Measurement Tone ON/OFF
1. Click on the NBP parameter box.
2. Click on
Measurement Tone.
3. Select
ON or OFF and click the knob.

Dräger Infinity Series Specifications

General

Manufacturer	Dräger
Device Type	Patient Monitor
Weight	5 kg to 10 kg (depending on the model and configuration)
Connectivity	Ethernet, USB, WLAN (optional)
Parameters Monitored	ECG, SpO2, NIBP, Temperature, Respiration
Alarm System	Visual and audible alarms, customizable alarm limits
Device Category	Medical Device
Series	Infinity
Display	Color TFT
Display Size	12.1 inches
Power Supply	AC Power, Internal Battery
Battery Life	Up to 4 hours (depending on configuration)
