Dräger Infinity Series User Manual

Overview
VF4 Infinity Gamma Series Page 1-17

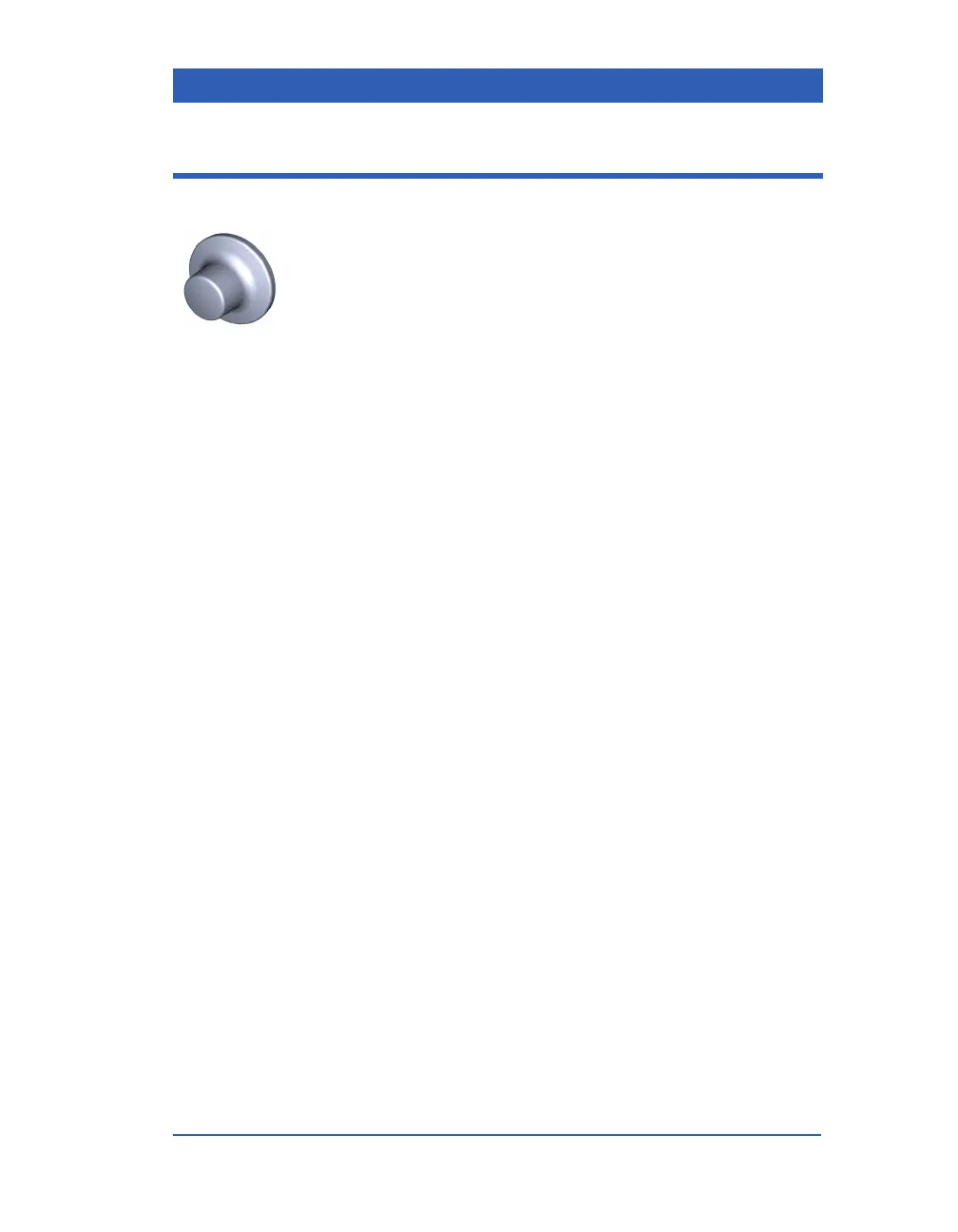

Rotary Knob
Using the rotary knob, you can:
! Select a screen area (parameter box or waveform field).
! Call up a menu and change menu options.
! Scroll through trend tables and graphs.
! Scroll through stored events.
! Switch between trend tables and graphs.
STEPS: Calling up a menu
1. Turn the knob clockwise or counterclockwise to navigate the
screen. Selected areas appear framed.
2. Press (click) the knob to call up a screen area’s menu (a
parameter menu or a waveform channel menu).
STEPS: Changing menu options
1. Dial to highlight the desired menu option.
2. Press the knob to activate the option.
3. Dial in the desired setting.
4. Press the knob to confirm the change.
5. To exit the menu, press the
Main Screen fixed key.

Dräger Infinity Series Specifications

General

Manufacturer	Dräger
Device Type	Patient Monitor
Weight	5 kg to 10 kg (depending on the model and configuration)
Connectivity	Ethernet, USB, WLAN (optional)
Parameters Monitored	ECG, SpO2, NIBP, Temperature, Respiration
Alarm System	Visual and audible alarms, customizable alarm limits
Device Category	Medical Device
Series	Infinity
Display	Color TFT
Display Size	12.1 inches
Power Supply	AC Power, Internal Battery
Battery Life	Up to 4 hours (depending on configuration)
