Dräger Infinity Series User Manual

ECG and Heart Rate
VF4 Infinity Gamma Series Page 8-5
Positioning the Electrodes
Position the electrodes on the chest at locations that provide the
clearest and most informative electrocardiogram for each patient.
The following table identifies each lead and its associated color
for the IEC 2 (AHA/US) and IEC 1 color schemes.
The following pictures show possible configurations of 3-, 5-,
and 6-lead electrode sets. Note that these configurations are
examples only; final configuration must be determined by a
trained clinical personnel.

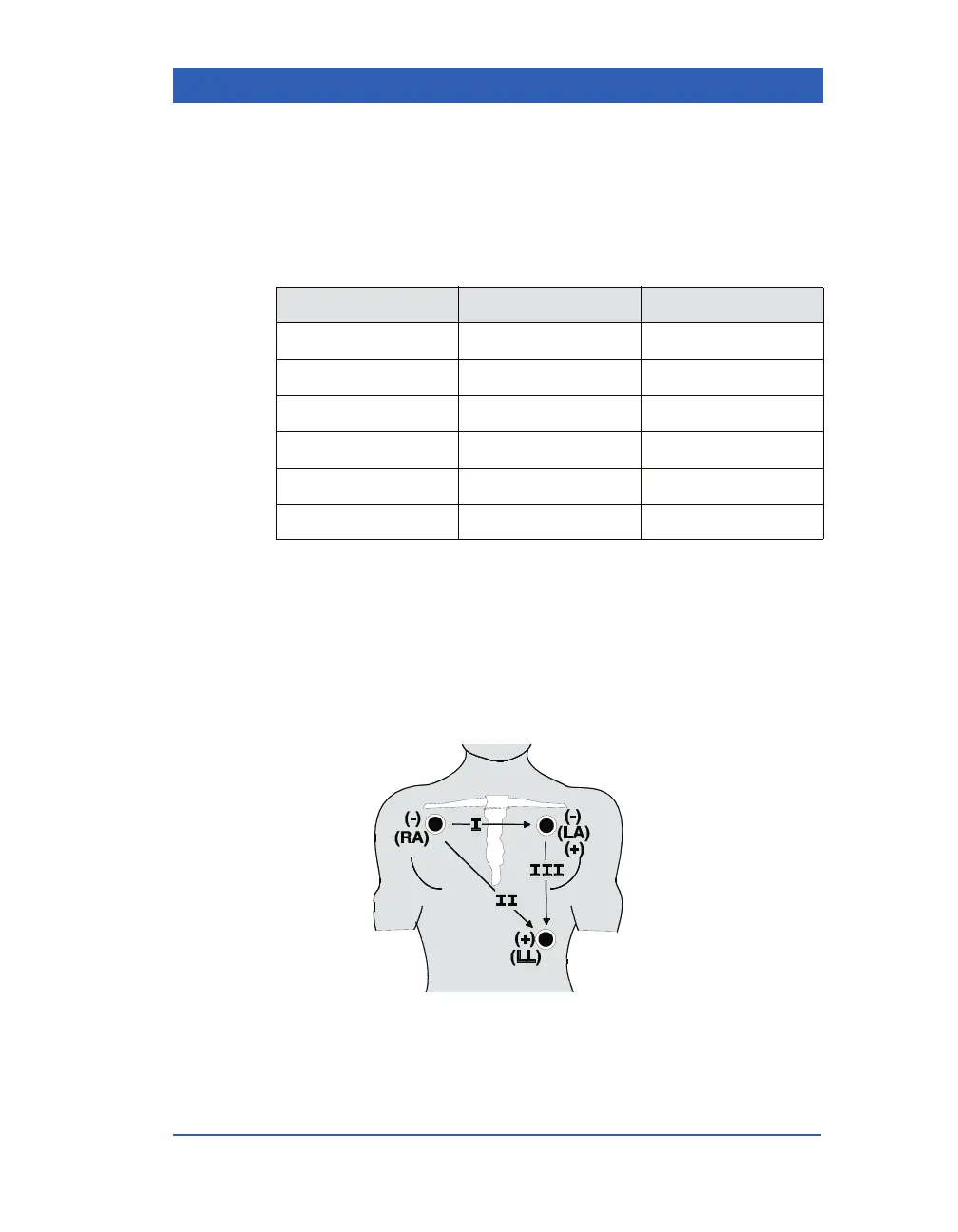

3-Lead Standard Configuration
Lead IEC 2 (AHA/US) IEC 1
LL Red Green
RL Green Black
LA Black Yellow
RA White Red
VBrownWhite
V+ Gray and White Gray and White

Dräger Infinity Series Specifications

General

Manufacturer	Dräger
Device Type	Patient Monitor
Weight	5 kg to 10 kg (depending on the model and configuration)
Connectivity	Ethernet, USB, WLAN (optional)
Parameters Monitored	ECG, SpO2, NIBP, Temperature, Respiration
Alarm System	Visual and audible alarms, customizable alarm limits
Device Category	Medical Device
Series	Infinity
Display	Color TFT
Display Size	12.1 inches
Power Supply	AC Power, Internal Battery
Battery Life	Up to 4 hours (depending on configuration)
