Drager Medizintechnik
Drager

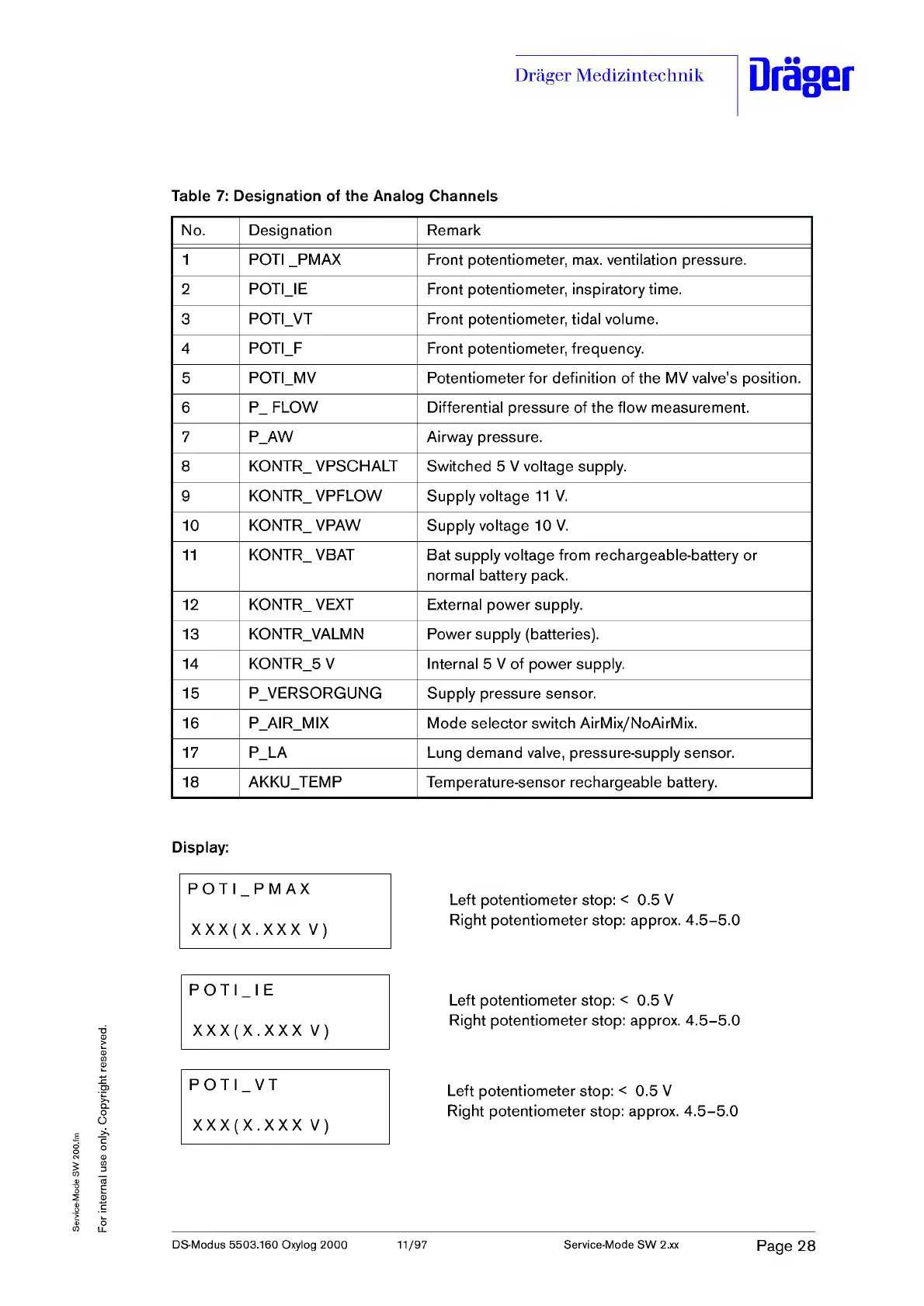

Table 7: Designation of the Analog Channels
No. Designation Remark
1
POTI _PMAX
Front potentiometer, max. ventilation pressure.
2 POTIJE Front potentiometer, inspiratory time.
3 POTI_VT Front potentiometer, tidal volume.
4 POTI_F Front potentiometer, frequency.
5 POTI_MV Potentiometer for definition of the MV valve’s position.
6 P_ FLOW Differential pressure of the flow measurement.
7 P_AW Airway pressure.
8 KONTR_ VPSCHALT Switched 5 V voltage supply.
9 KONTR_ VPFLOW
Supply voltage 11 V.
10
KONTR_ VPAW Supply voltage 10 V.
11 KONTR_ VBAT Bat supply voltage from rechargeable-battery or
normal battery pack.
12 KONTR_ VEXT External power supply.
13
KONTR_VALMN Power supply (batteries).
14 KONTR_5 V Internal 5 V of power supply.
15 P_VERSORGUNG
Supply pressure sensor.
16 P_AIR_MIX Mode selector switch AirMix/NoAirMix.
17 P_LA Lung demand valve, pressure-supply sensor.
18 AKKU_TEMP Temperature-sensor rechargeable battery.
Display:
Left potentiometer stop: < 0.5 V
Right potentiometer stop: approx. 4.5-5.0
Left potentiometer stop: < 0.5 V
Right potentiometer stop: approx. 4.5-5.0
Left potentiometer stop: < 0.5 V
Right potentiometer stop: approx. 4.5-5.0
DS-Modus 5503.160 Oxylog 2000 11/97 Service-Mode SW 2.xx
Page 28
