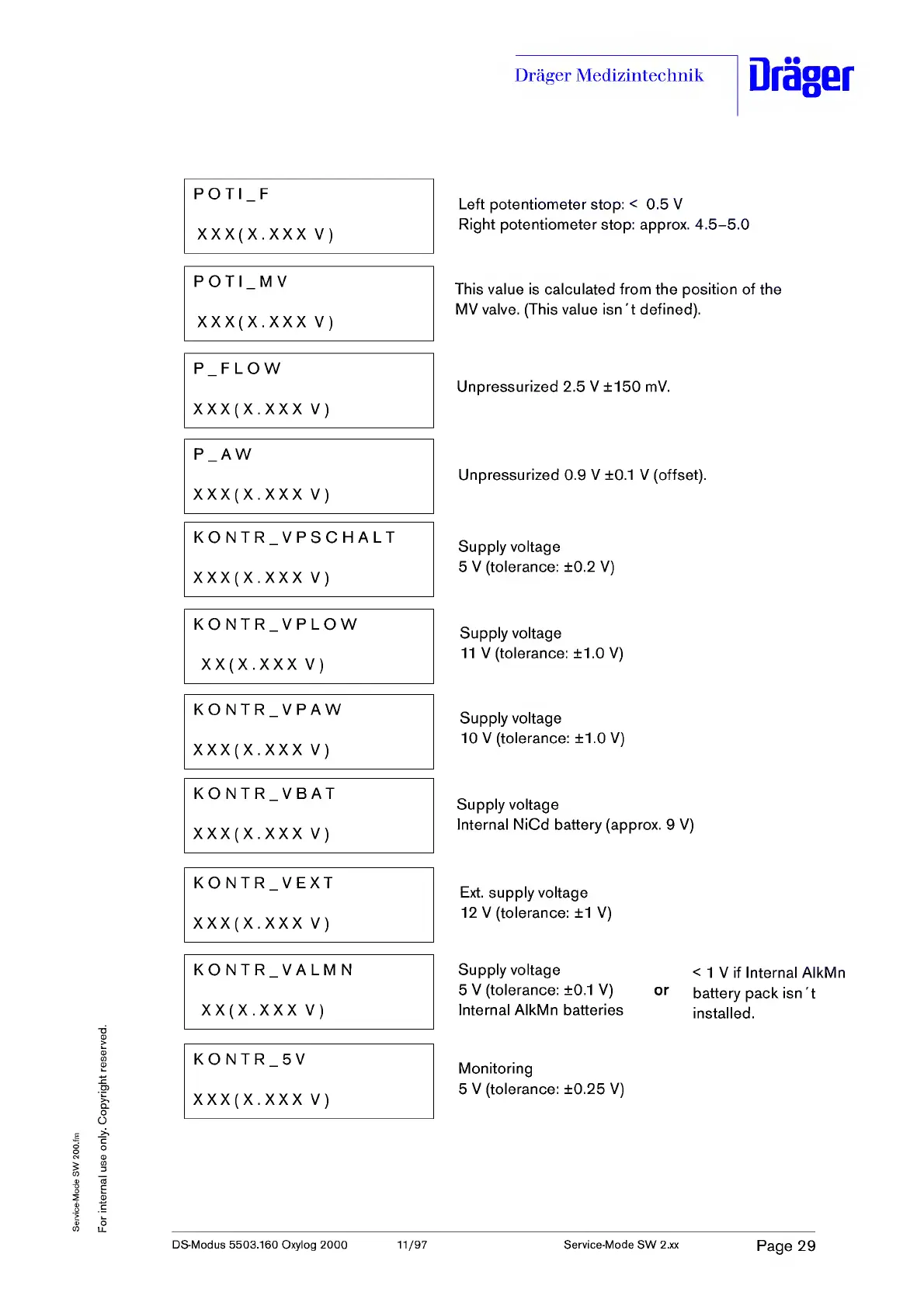

Left potentiometer stop: < 0.5 V
Right potentiometer stop: approx. 4.5-5.0
This value is calculated from the position of the
MV valve. (This value isn t defined).
Unpressurized 2.5 V +150 mV.
Unpressurized 0.9 V +0.1 V (offset).
Supply voltage
5 V (tolerance: +0.2 V)
Supply voltage
11 V (tolerance: ±1.0 V)
Supply voltage
10 V (tolerance: +1.0 V)
Supply voltage
Internal NiCd battery (approx. 9 V)
Ext. supply voltage
12 V (tolerance: +1 V)
Supply voltage < 1 V if Internal AlkMn
5 V (tolerance: +0.1 V) or battery pack isn't
Internal AlkMn batteries installed.
Monitoring
5 V (tolerance: +0.25 V)
DS-Modus 5503.160 Oxylog 2000 11/97 Service-Mode SW 2.xx
Page 29
