Troubleshooting
70 Instructions for use Polaris 600

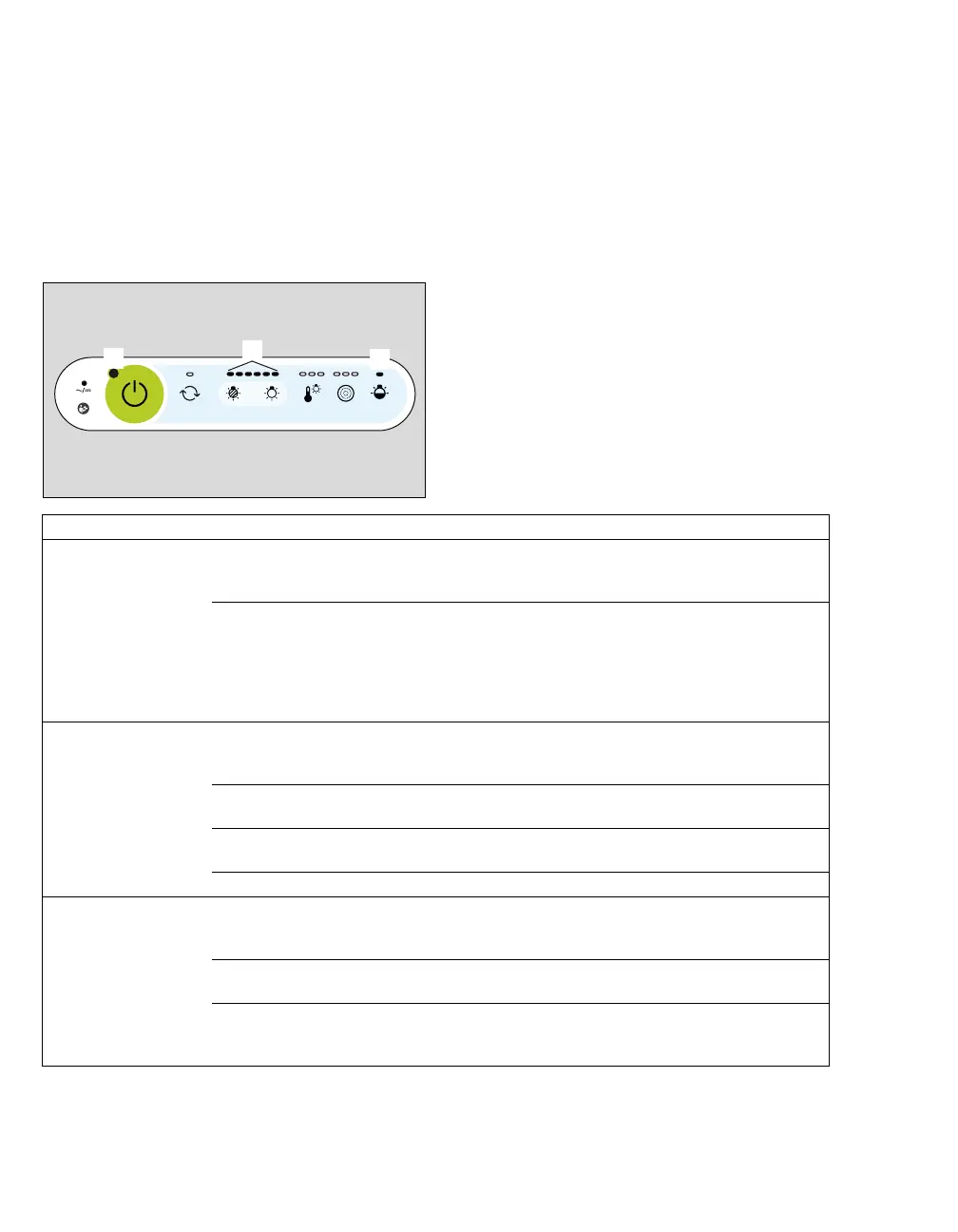

LEDs on the light control panel and on
the wall-mounted control panel
The description of this function applies to both the
light control panel and the wall-mounted control
panel. Only the light control panel is shown in the
illustrations.
27795
B
C
A
D
LED Status Cause Remedy
LED indicator (A)
Off Light is in standby mode
Ambient light mode (Endo light)
is switched on
No remedial action nec-
essary
Continuously white
on the light control
panel
Continuously orange
on the wall-mounted
control panel
Indicates the illuminance in OR
light mode (the more LEDs are
lit, the stronger the illuminance)
No remedial action nec-
essary
Status LED (B)
Off Light is not supplied with power Notify the in-house
technician or Dräger-
Service
Off Light is not on
Light is in standby mode
No remedial action nec-
essary
Continuously green Light is in operation No remedial action nec-
essary
Continuously orange Electronics fault Notify DrägerService
Status LED (C)
Off Light system is not supplied with
power
Notify the in-house
technician or Dräger-
Service
Continuously green Mains power is available No remedial action nec-
essary
Continuously orange Mains power is interrupted (light
system is being supplied with
emergency power)
Notify the in-house
technician
