Vigor2862 Series User’s Guide
162
Info
Settings in this page only applied to LAN port but not WAN port.
Available settings are explained as follows:
Item Description
Enable Click it to enable VLAN configuration.
LAN P1 – P4 – Check the LAN port(s) to group them under the
selected VLAN.
Wireless LAN (2.4GHz) SSID1 – SSID4 – Check the SSID boxes to group them under the
selected VLAN.
Wireless LAN (5GHz) SSID1 – SSID4 – Check the SSID boxes to group them under the
selected VLAN.

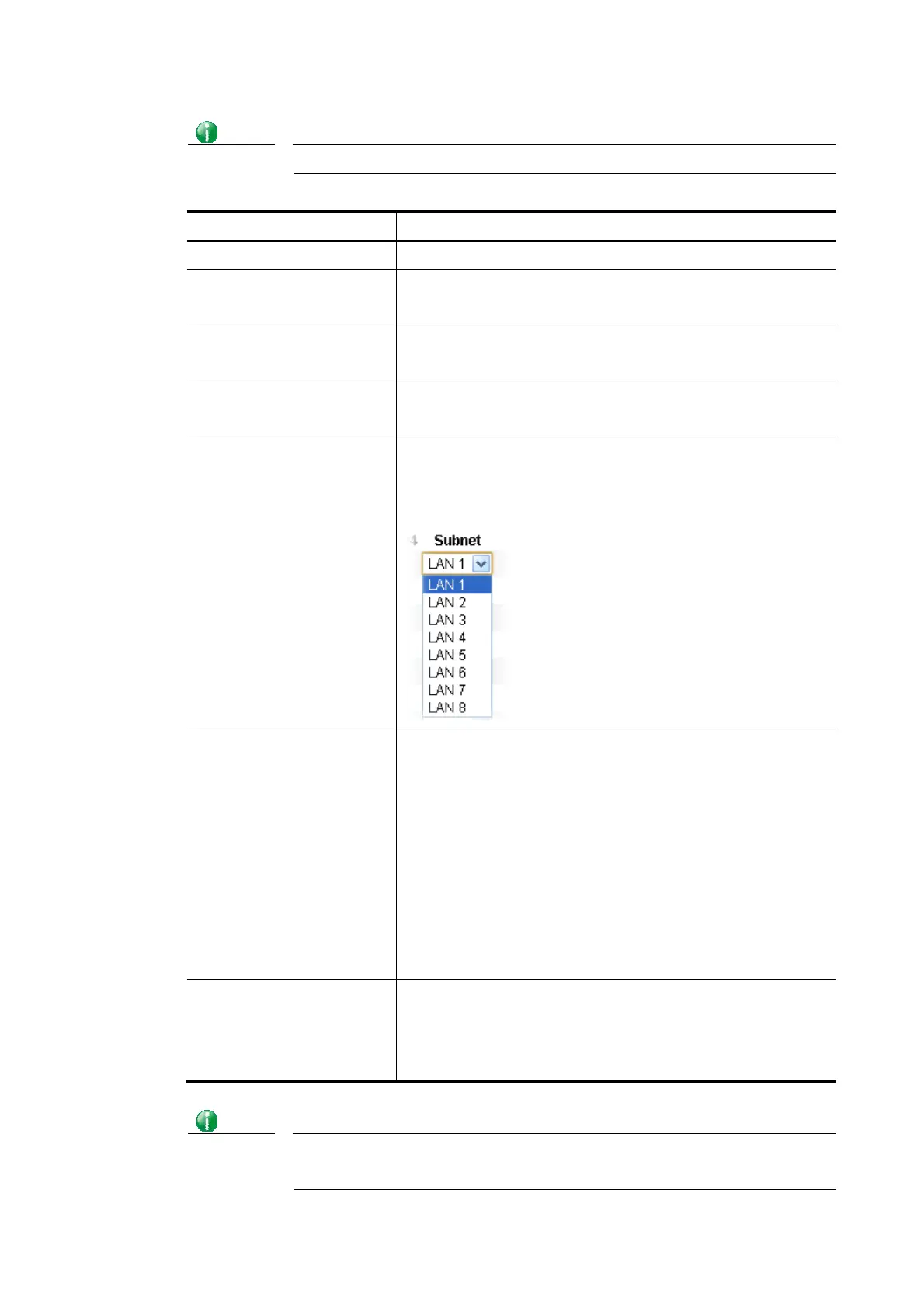

Subnet Choose one of them to make the selected VLAN mapping to
the specified subnet only. For example, LAN1 is specified for
VLAN0. It means that PCs grouped under VLAN0 can get the
IP address(es) that specified by the subnet.
VLAN Tag
Enable – Check the box to enable the function of VLAN with
tag.
The router will add specific VLAN number to all packets on
the LAN while sending them out.
Please type the tag value and specify the priority for the
packets sending by LAN.
VID – Type the value as the VLAN ID number. The range is
form 0 to 4095. VIDs must be unique.
Priority – Valid values are from 0 to 7, where 1 has the
lowest priority, followed by 0, and finally from 2 to 7 in
increasing order of priority.
Permit untagged device in
P1 to access router
Select to allow untagged hosts connected to LAN port P1 to
access the router. In case you have incorrectly configured
VLAN functionality, you will still be able to access the router
via the Web UI, and telnet and SSH shells to adjust the
configuration.
Info
Leave one VLAN untagged at least to prevent from not connecting to Vigor
router due to unexpected error.
