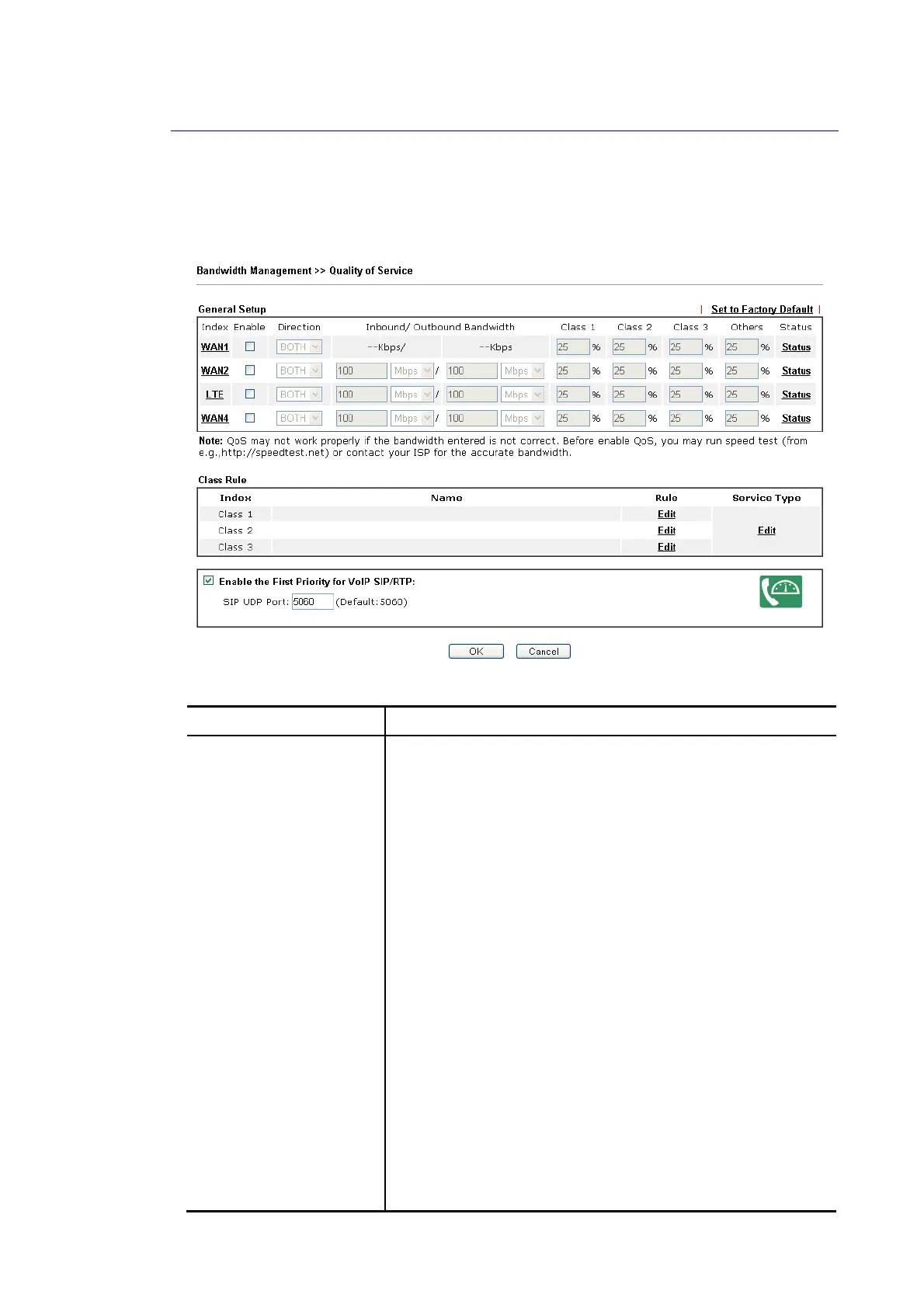

In the Bandwidth Management menu, click Quality of Service to open the web page.
You can configure general setup for the WAN/LTE interface, edit the Class Rule, and edit the
Service Type for the Class Rule for your request.
Available settings are explained as follows:
Item Description
General Setup
Index – Display the WAN/LTE interface number link that you
can edit.
Enable – Check the box to enable the QoS function for
WAN/LTE interface. If it is enabled, you can configure general
QoS setting for each WAN/LTE interface.
Direction –Define which traffic the QoS Control settings
will apply to.
IN- apply to incoming traffic only.
OUT-apply to outgoing traffic only.
BOTH- apply to both incoming and outgoing traffic.
Inbound/Outbound Bandwidth –Set the connecting
rate of data input/output for other WAN. For example, if
your ADSL supports 1M of downstream and 256K
upstream, please set 1000kbps for this box. The default
value is 10000kbps.
Class 1 ~ 3 / Others –Define the ratio of bandwidth to
upstream speed and bandwidth to downstream speed.
There are four queues allowed for QoS control. The first
three (Class 1 to Class 3) class rules can be adjusted for
your necessity. In which, the “Others” field is used for
the packets which are not suitable for the three class
rules.
Status – Display the online statistics of WAN interface.
