Vigor2862 Series User’s Guide
3
Off The DMZ function is disabled.
Blinking The data is transmitting.
LED on Connector
On The port is connected.
Off The port is disconnected.
Left
LED
Blinking The data is transmitting.
On The port is connected with 1000Mbps.
LAN
P1~P4
Right
LED
Off The port is connected with 10/100Mbps
On The port is connected.
Off The port is disconnected.
Left
LED
Blinking The data is transmitting.
On The port is connected with 1000Mbps.
P5 /
WAN2
Right
LED
Off The port is connected with 10/100Mbps

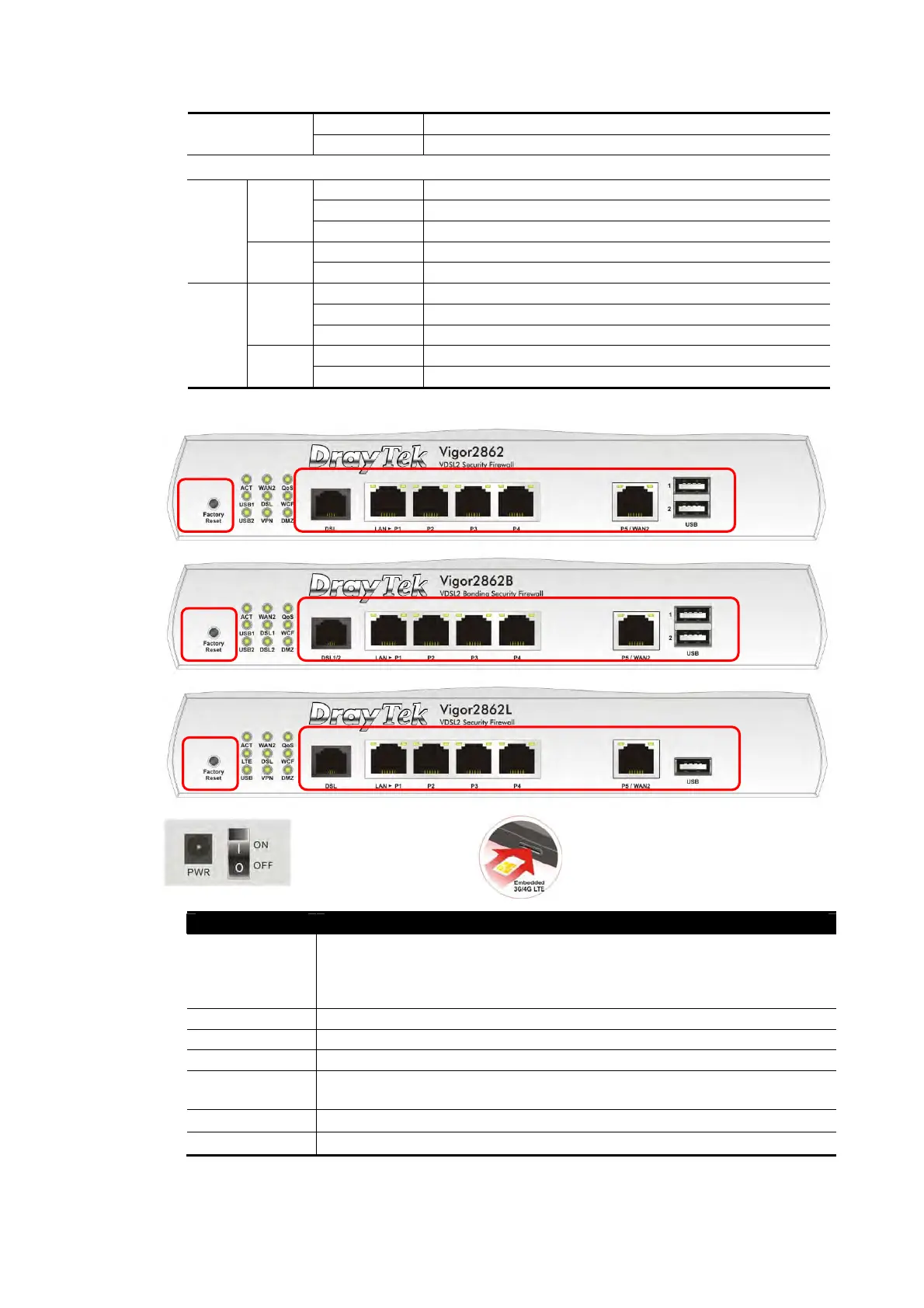

Switch on Rear Side (Available for Vigor2862L)
Interface Description
Factory Reset Restore the default settings. Usage: Turn on the router (ACT LED is
blinking). Press the hole and keep for more than 5 seconds. When you
see the ACT LED begins to blink rapidly than usual, release the button.
Then the router will restart with the factory default configuration.
DSL / DSL 1/2 Connecter for accessing the Internet.
LAN P1~P4 Connecters for local network devices.
P5 / WAN2 Connecter for local network devices or modem for accessing Internet.
USB 1~2 Connecter for a USB device (for 3G/4G USB Modem or printer or
thermometer).
PWR
Connecter for a power adapter.
ON/OFF
Power Switch.
