Vigor2862 Series User’s Guide
264

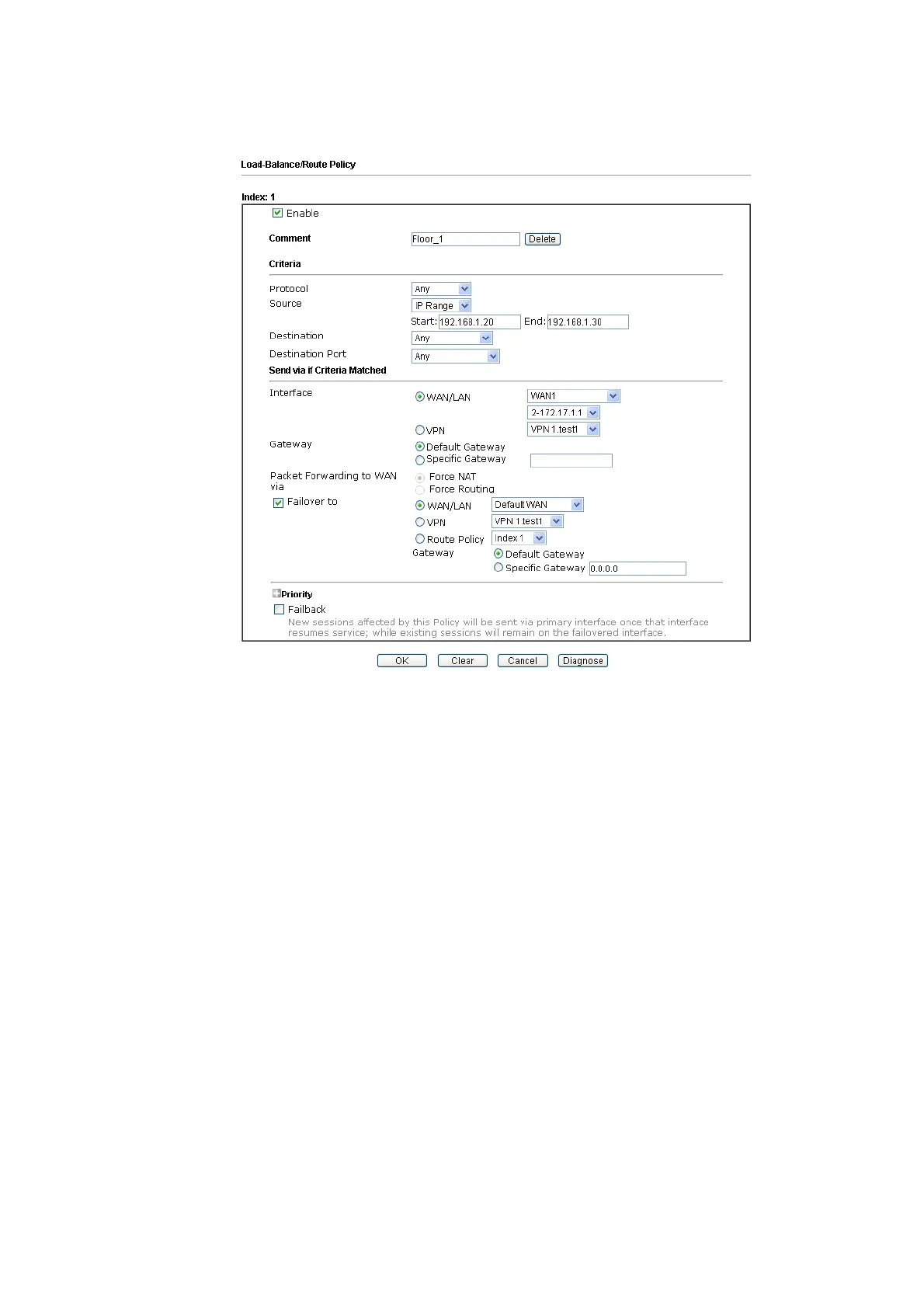

2. Go to Load Balance/Route policy. Create a Route Policy for specific IP address to send
from specific WAN IP Address.
Enable this policy.
Enter Source IP as the range of private IP address.
Leave the Destination IP and Port as Any.
Select Interface as WAN, and then select Interface address from the drop-down list.
(The List can be edited in WAN IP Alias setting.)
Enable Failover to other WAN so the traffic will be sent via other Interface when
the path fails. But do not enable this option if you want the traffic only to use a
designated IP address.
Click OK to save.
3. After the above configuration, packet source from the range between 192.168.1.20 and
192.168.1.30 sent to the Internet will use the public IP 172.17.1.1.
