VigorAP 800 User’s Guide
2
1
1
.
.
2
2
L
L
E
E
D
D
I
I
n
n
d
d
i
i
c
c
a
a
t
t
o
o
r
r
s
s
a
a
n
n
d
d
C
C
o
o
n
n
n
n
e
e
c
c
t
t
o
o
r
r
s
s

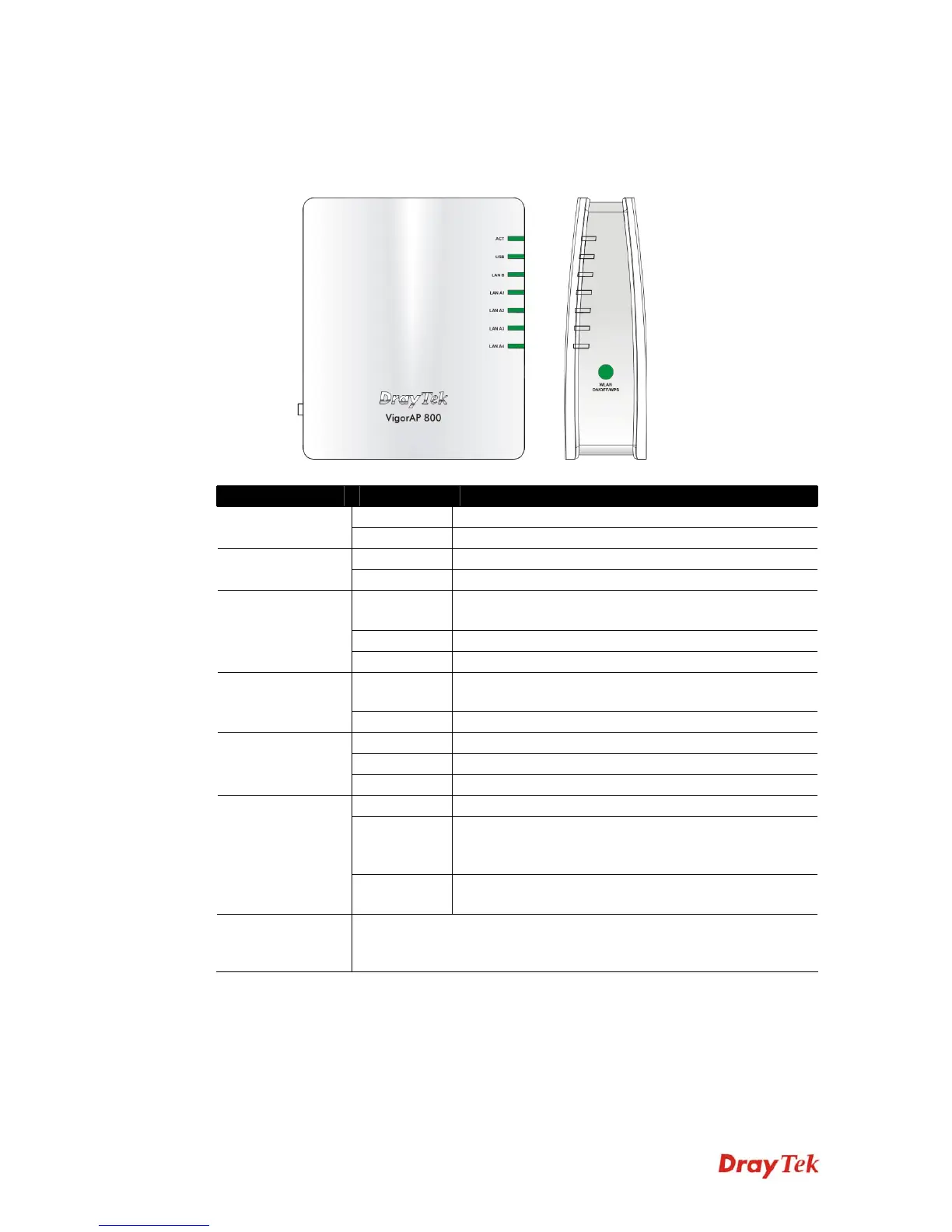

Before you use the Vigor modem, please get acquainted with the LED indicators and
connectors first.
LED Status Explanation
Off The system is not ready or is failed. ACT
Blinking The system is ready and can work normally.
On A USB device is connected and active. USB
Blinking The data is transmitting.
On A normal connection is through its corresponding
port.
Off LAN is disconnected.
LAN B
Blinking Data is transmitting (sending/receiving).
On A normal connection is through its corresponding
port.
LAN A1 - A4
Off LAN is disconnected.
On Wireless function is ready.
Off Wireless function is not ready.
WLAN
(Green LED) on
WLAN button
Blinking Data is transmitting (sending/receiving).
Off The WPS is off.
Blinking
(Orange)
Blink with 1 second cycle for 2 minutes - - WPS is
enabled and waiting for wireless client to connect
with it.
WPS
(Orange LED) on
WLAN button
Blinking
(Orange)
Data is transmitting (sending/receiving).
WPS Button Press this button for 2 seconds to wait for client device making
network connection through WPS. When the orange LED lights up,
the WPS will be on.
