Draytek VigorAP 902 User Manual

VigorAP 902 User’s Guide
8
1
1
.
.
3
3
.
.
4
4
P
P
o
o
E
E
C
C
o
o
n
n
n
n
e
e
c
c
t
t
i
i
o
o
n
n
VigorAP 902 can gain the power from the connected switch, e.g., VigorSwitch P2260. PoE
(Power over Ethernet) can break the install limitation caused by the fixed power supply.

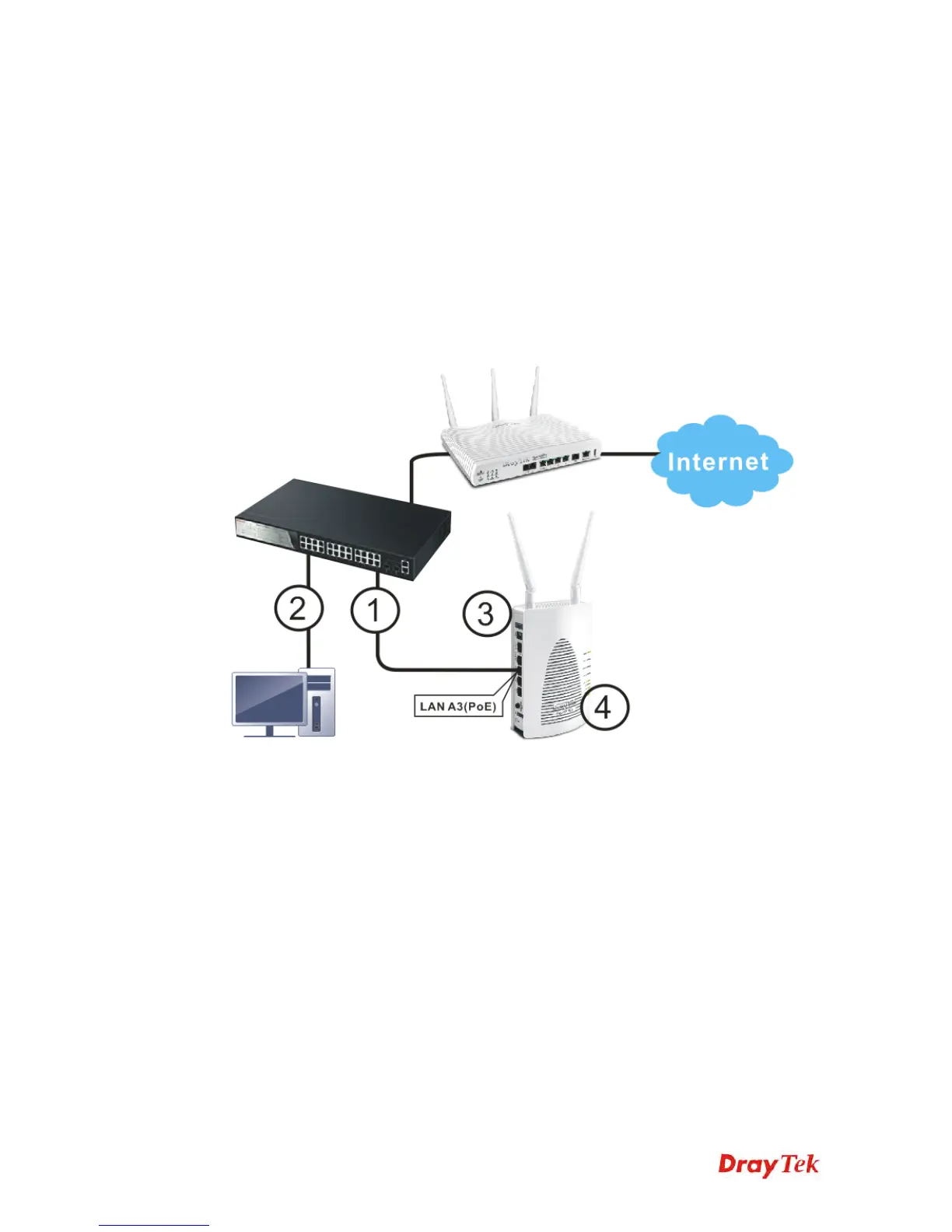

1. Connect VigorAP 902 to a switch in your network through the LAN A3 (PoE) port of
the access point by Ethernet cable.
2. Connect a computer to VigorSwitch P2260. Make sure the subnet IP address of the PC
is the same as VigorAP 902 management IP, e.g., 192.168.1.X.
3. Power on VigorAP 902.
4. Check all LEDs on the front panel. ACT LED should be steadily on, LAN LEDs
should be on if the access point is correctly connected to the ADSL modem, router or
switch/hub.

Draytek VigorAP 902 Specifications

General

Brand	Draytek
Model	VigorAP 902
Category	Wireless Access Point
Language	English
