VigorSwitch P2280 User’s Guide
141
V
V
-
-
1
1
-
-
5
5
D
D
S
S
C
C
P
P
M
M
a
a
p
p
p
p
i
i
n
n
g
g

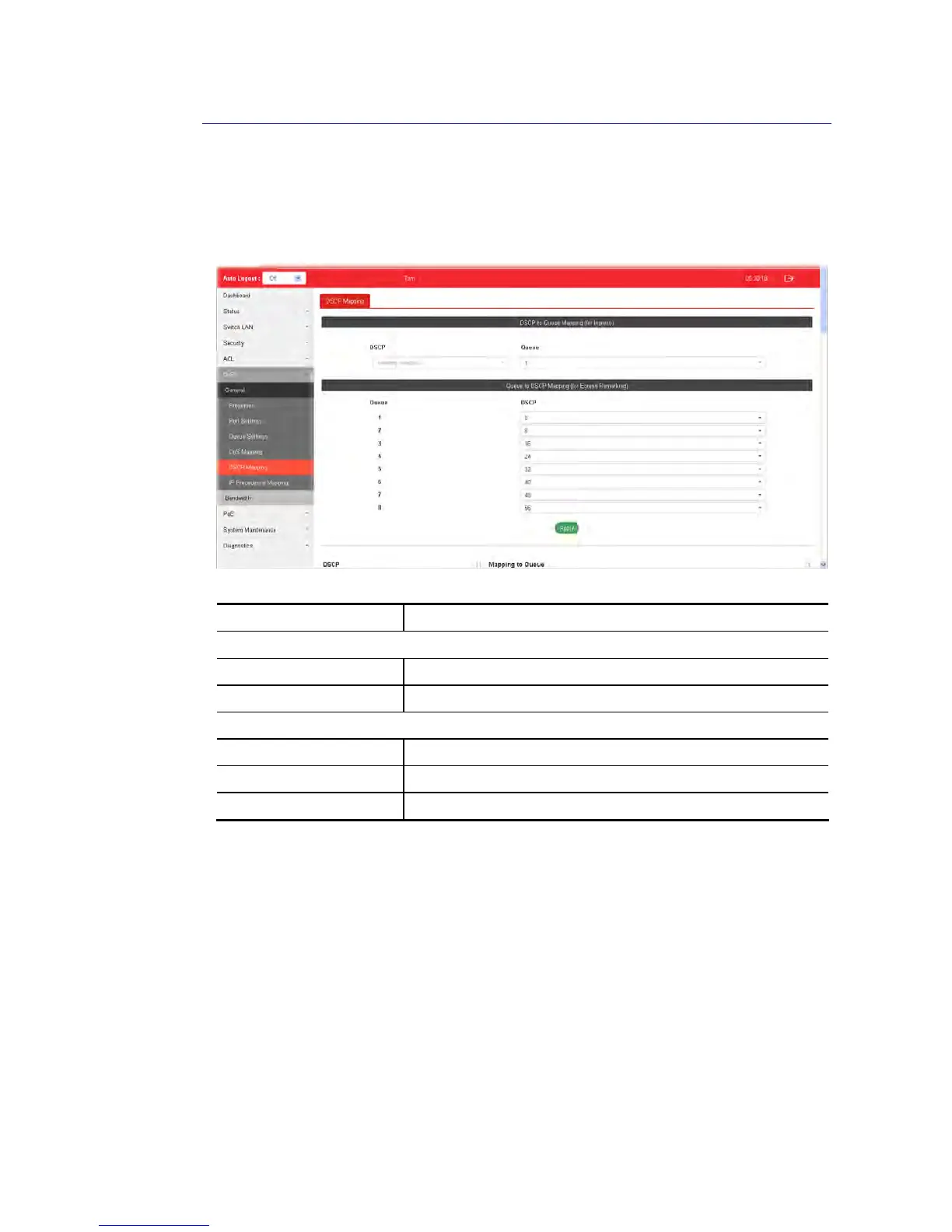

This section allows user to configure how ingress packets with DSCP tag map to QoS queues,
and QoS queues to DSCP on egress packets.
Actual effectiveness is based on how QoS is configured in previous QoS section. This page
provides settings for user to configure mapping only.
Available settings are explained as follows:
Item Description
DSCP to Queue Mapping (for Ingress) – Settings for the incoming packets.
DSCP Display the DSCP value (0 to 7).
Queue Define the queue ID (level 1 to 8) for different DSCP values.
Queue to DSCP Mapping (for Egress Remarking) - Settings for outgoing packets.
Queue Display the queue ID (level 1 to 8) for different DSCP values.
DSCP Define the DSCP value (0 to 7).
Apply Apply the settings to the switch.
