6
Follow these steps to install the Escort5580. Review
the installation and programming sections of this
manual before you begin.
2.1 Installation Steps
Step 1: Mount the Escort5580 Module
Mount the Escort5580 module in the same cabinet
as the main control panel using the nylon standoffs
provided. You can mount the module in a separate
cabinet, but it must be located close to the control
panel in order to hook up the telephone line.
Step 2: Connect the Keybus
(Section 2.2)
Connect the 4 wire Keybus according to the diagram
in
Section 2.2 “Keybus Wiring”.
Step 3: Telephone Line Connection
(Section 2.3)
Connect the incoming telephone line according to
the diagram in
Section 2.3 “Telephone Line Wiring”.
Step 4: Enroll the Escort5580 Module
(Section 2.4)
Enroll the Escort5580 module according to the
guideline provided in
Section 2.4 “Enrolling the
Escort5580 Module”
.
Step 5: Connect the PL-513 or PSC04
Controller
(Section 2.5)
If you will be adding automation items to the system,
connect the PL-513 or PSC04 Controller according
to the diagram in
Section 2.5 “Connecting the PL-
513 or PSC04 Controller”.
Step 6: Program the Escort5580
You can program the Escort5580 via any local
touchtone telephone. Follow the guidelines in
Section 4 “How to Program”
. You can also program
the Escort5580 using DLS-1 v6.5 or higher
downloading software. Refer to the DLS-1 manual
for more information.
Step 7: Test the System
Test the Escort5580 using both local and remote
telephones. Check all programmed labels and the
operation of all functions including automation
items, if connected.
2.2 Keybus Wiring
The Escort5580 module has 4 terminals marked
Keybus (red, black, yellow and green). Connect
these terminals to the 4 terminals on the main
control panel marked Keybus (red, black, yellow
and green).

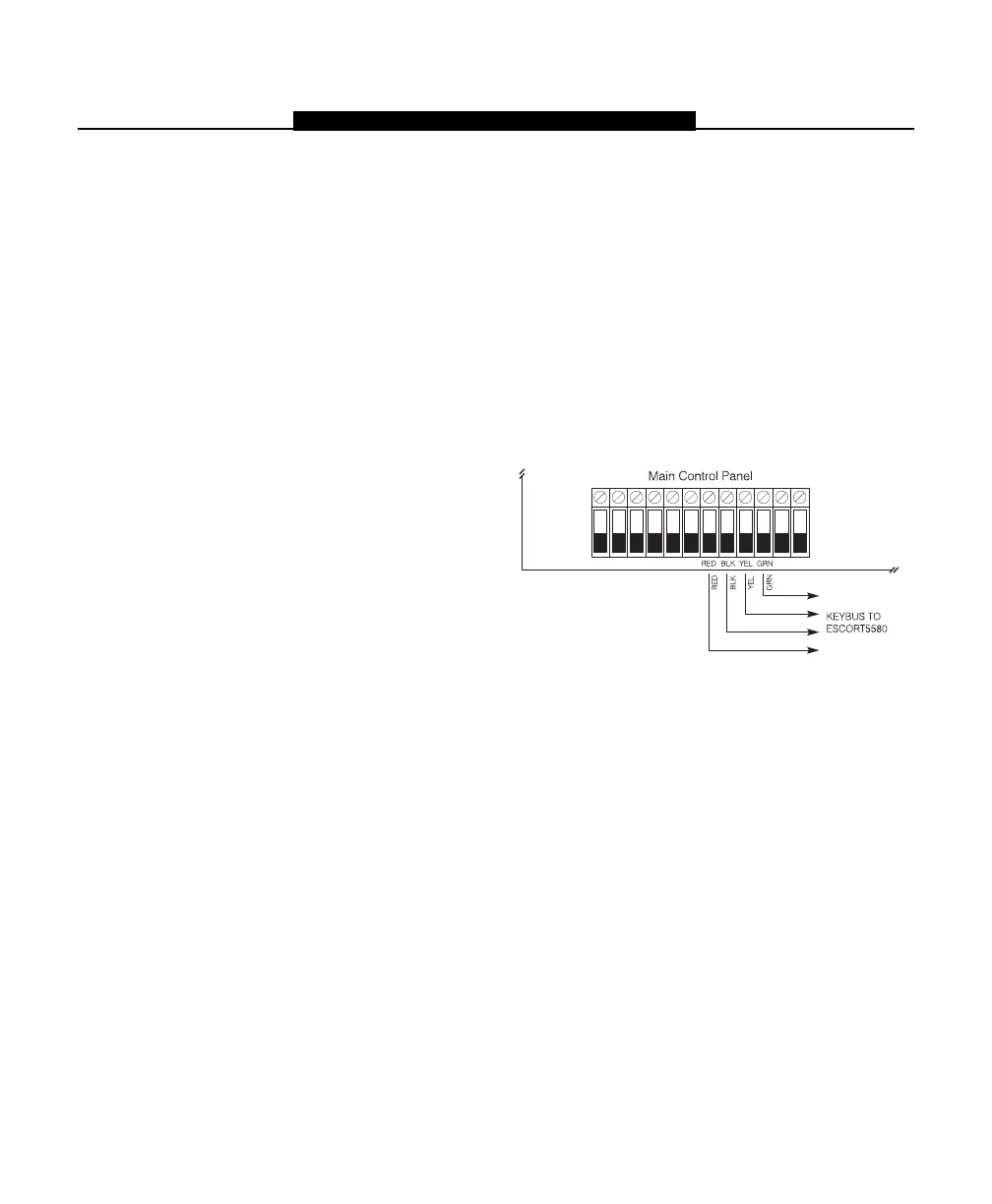

Figure 1: Keybus Connection
2.3 Telephone Line Wiring
The Escort5580 module has 4 terminals for the
telephone line connection (TIP, RING, T1 and R1).
The wiring must be as follows:
• Main Control Panel TIP and RING - incoming
line
• Main Control Panel T1 and R1 - Escort5580 TIP
and RING
• Escort5580 T1 and R1 - house phones
S E C T I O N 2
Getting Started
