Implementing Simulink Models Using
Real-Time Interface
It is assumed that MATLAB, Simulink, Real-Time Workshop, and
Real-Time Interface (RTI) for the DS1104 R&D Controller Board
(RTI1104) are properly installed. See below and How to Work with a
Model on page 46.
How to Start RTI1104
To start RTI1104, the following instructions apply.
To start RTI1104
1 Make sure that the required licenses are available and activated.
For information on handling the license mechanism, refer to
Protected Products and Required Licenses in the dSPACE Software
Installation and Management Guide.
2 Open ControlDesk (via Programs – dSPACE Tools – ControlDesk
in the Windows Start menu) and specify the DS1104 as the
working board (via Platform – Set Working Board from the
menu bar). For details, see How to Set the Working Board in the
ControlDesk Experiment Guide.
3 Start MATLAB.

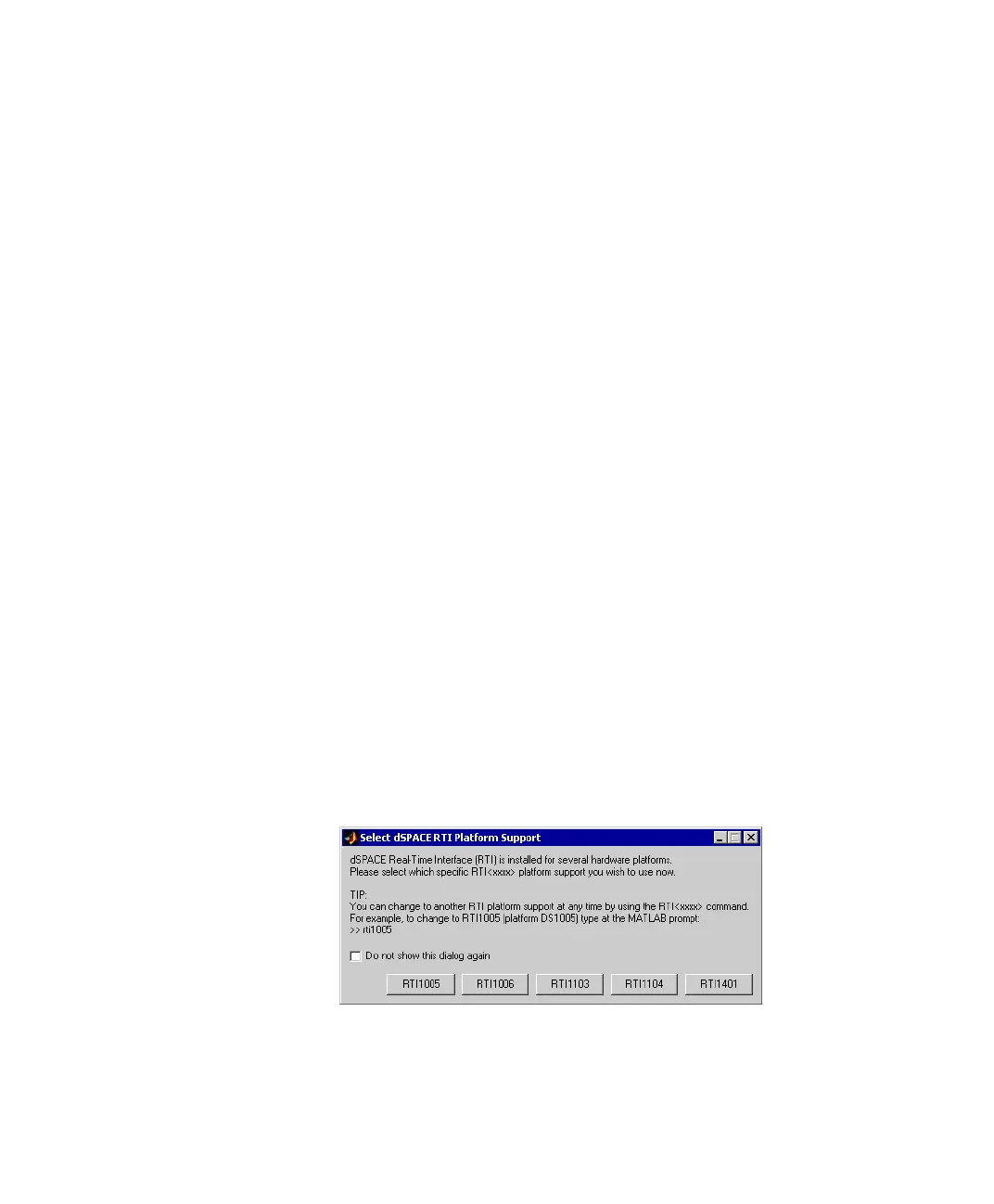

4 In the Select dSPACE RTI Platform Support dialog, select
RTI1104.
