Ducati Hyperstrada User Manual

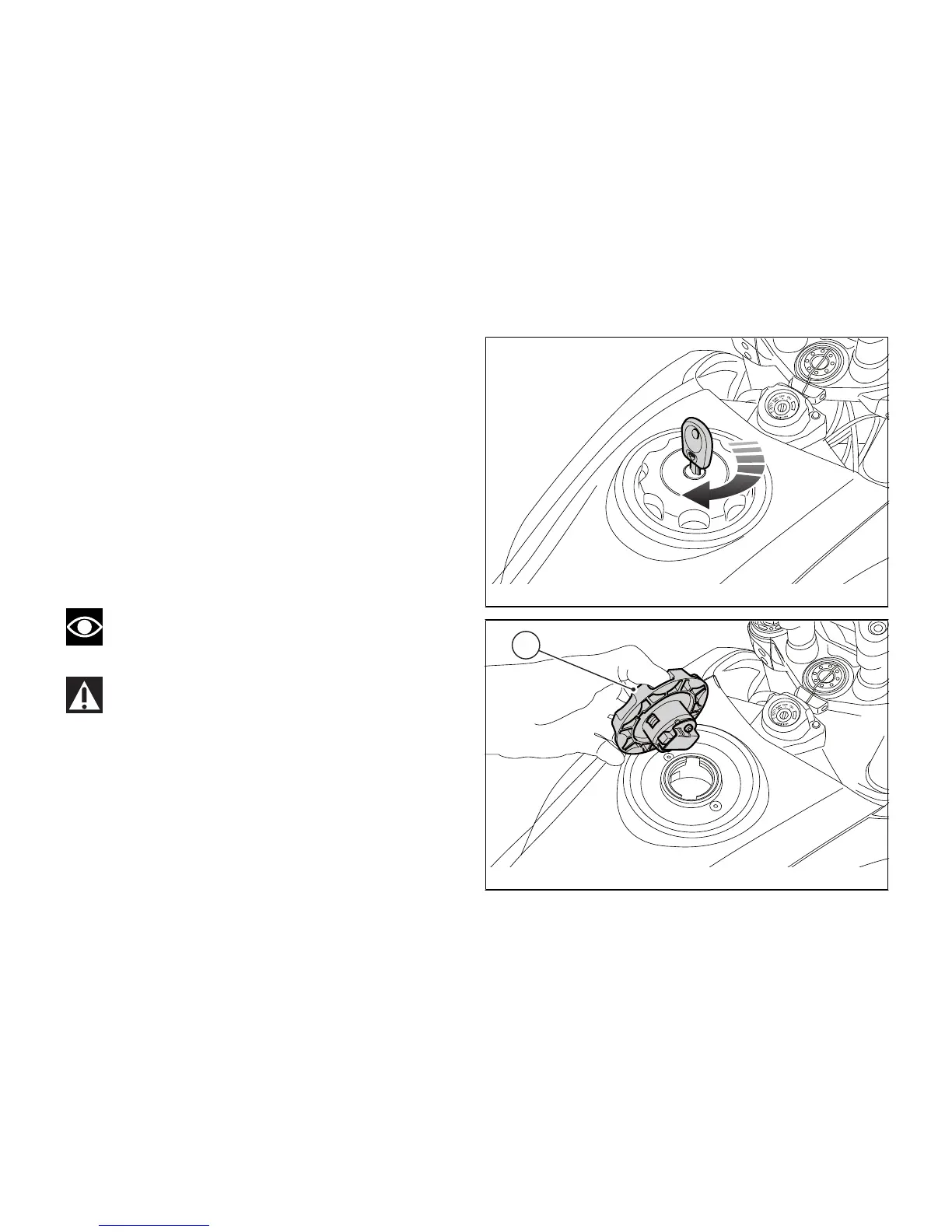

Tank filler plug
Opening
Insert the key into the lock.
Turn the key clockwise 1/4 turn to unlock.
Unscrew the plug (1).
Closing
Tighten the plug (1) with the key inserted and push it
down into its seat.
Turn the key counter-clockwise to the initial position
and remove it.
Note
Plug can only be closed when key is inserted.
Warning
After refuelling, always make sure that the plug
is perfectly in place and closed.
Fig. 88
1
Fig. 89
139

Ducati Hyperstrada Specifications

General

Transmission	6-speed
Frame	Tubular steel Trellis frame
Exhaust	2-1-2 system with catalytic converter and 2 lambda probes
Front Suspension	43 mm upside-down forks
Rear Suspension	Progressive linkage with adjustable Sachs monoshock
Front Brake	2 x 320 mm semi-floating discs, radially mounted Brembo monobloc 4-piston calipers
Rear Brake	245 mm disc, 2-piston caliper
Fuel Tank Capacity	16 liters (4.2 US gal)
Fuel Injection	Electronic fuel injection, 53 mm throttle bodies
