Beam setting
Note
The headlight features a double beam
adjustment, one for the right beam and one for the
left beam
To check the headlight aim, place the motorcycle
upright with the tyres inflated to the correct pressure
and one person sitting astride the motorcycle. The
motorcycle should be perfectly vertical, with its
longitudinal axis at right angles to a wall or screen at
a distance of 10 metres. then draw a horizontal line
dictated by headlamp centre and a vertical one in line
with the longitudinal axis of motorcycle. If possible,
perform this check in dim light. Switch on the low
beam and adjust the aiming of the left and right-hand
beams. The height of the upper limit between the
dark area and the lit area must not be more than nine
tenths of the height from ground of headlight centre.

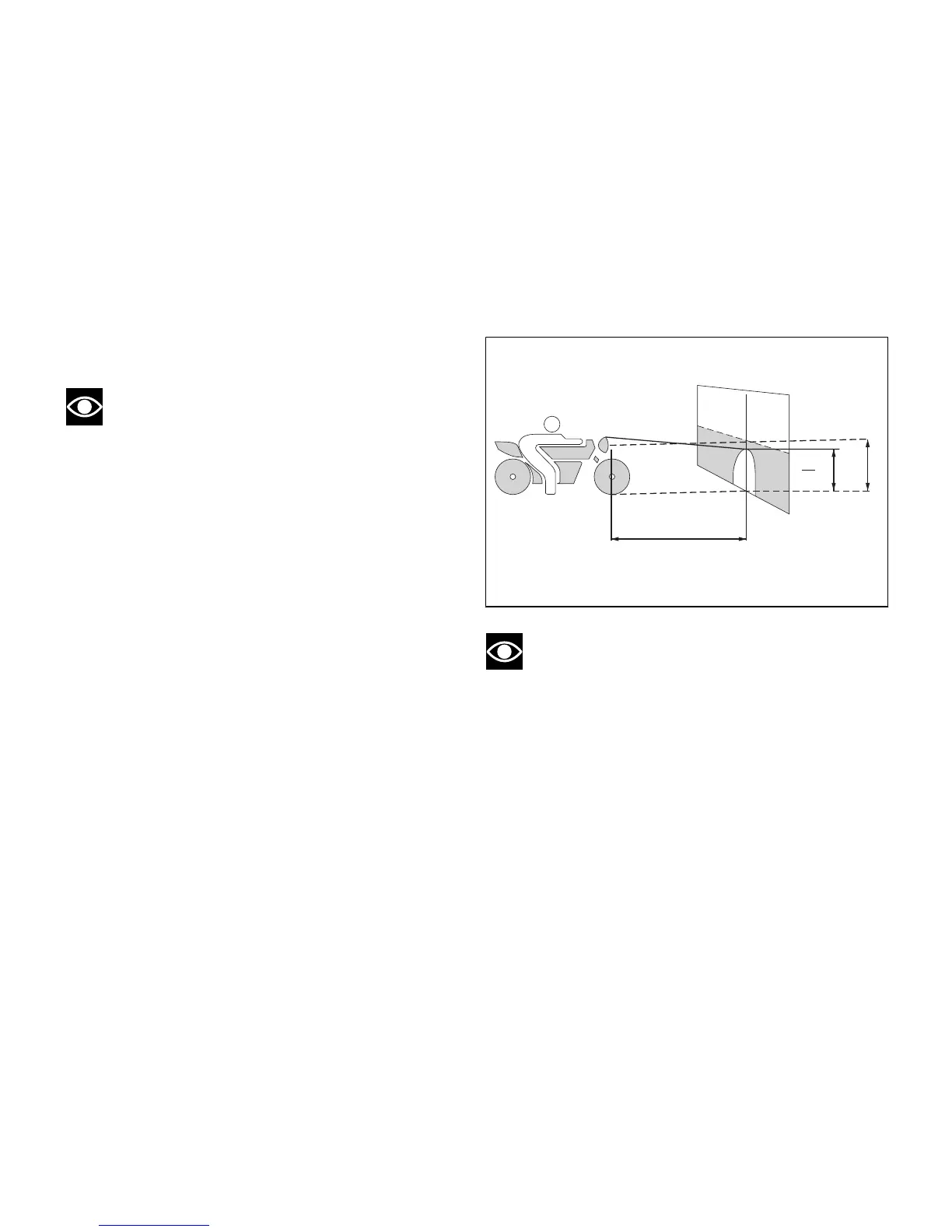

Fig. 149
Note
This is the procedure specified by Italian
regulations for checking the maximum height of the
light beam. Please adapt said procedure to the
provisions in force in your own country.
187
