Ducati Hyperstrada User Manual

Timing system
DESMODROMIC with four valves per cylinder,
operated by eight rocker arms and two overhead
camshafts. It is operated by the crankshaft through
spur gears, belt rollers and toothed belts.

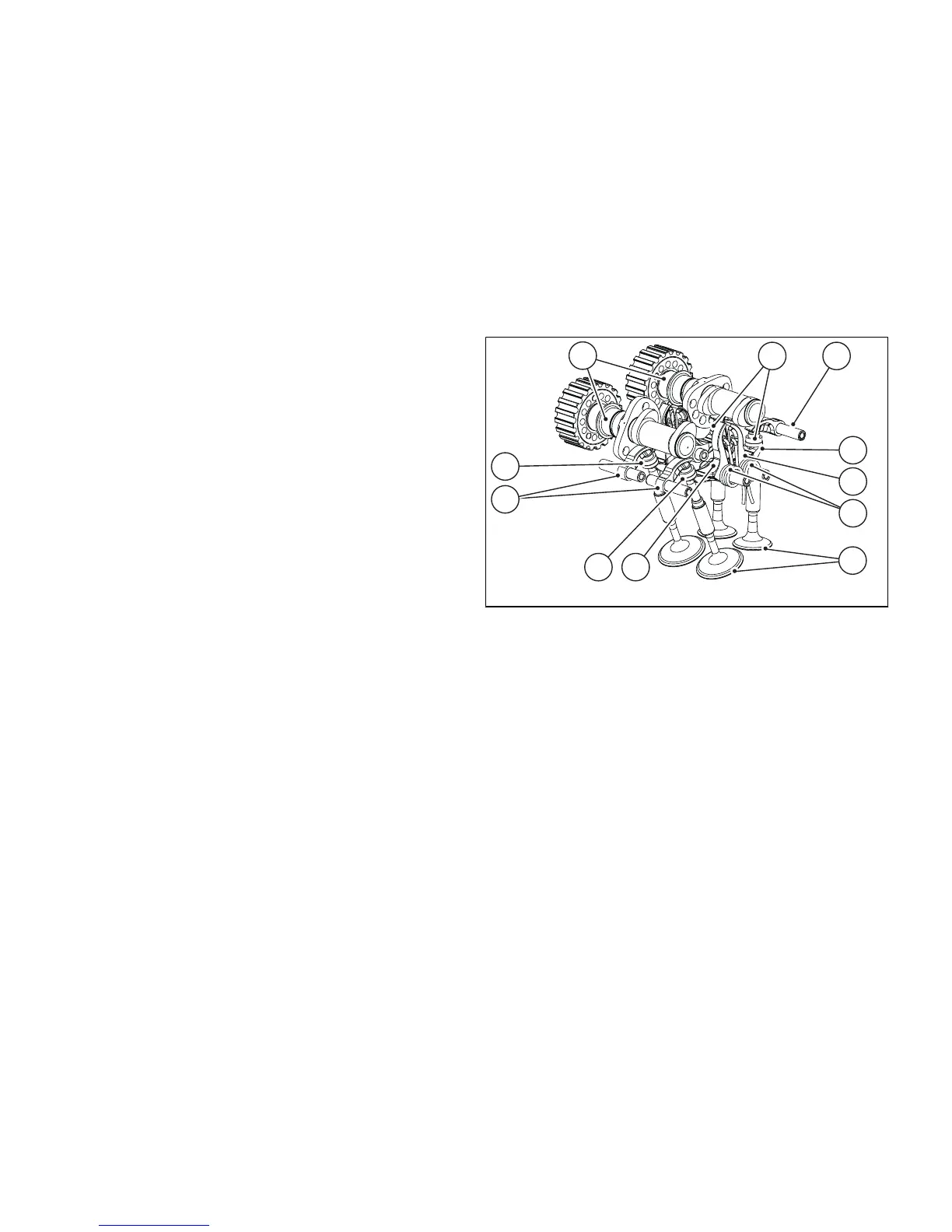

Desmodromic timing system
1) Opening (or upper) rocker
2) Opening rocker shim
3) Closing (or lower) rocker shim
4) Return spring for lower rocker
5) Closing (or lower) rocker
6) Camshaft
7) Valve.
6
1
2
2
2 1
5
3
5
4
7
Fig. 158
206

Ducati Hyperstrada Specifications

General

Transmission	6-speed
Frame	Tubular steel Trellis frame
Exhaust	2-1-2 system with catalytic converter and 2 lambda probes
Front Suspension	43 mm upside-down forks
Rear Suspension	Progressive linkage with adjustable Sachs monoshock
Front Brake	2 x 320 mm semi-floating discs, radially mounted Brembo monobloc 4-piston calipers
Rear Brake	245 mm disc, 2-piston caliper
Fuel Tank Capacity	16 liters (4.2 US gal)
Fuel Injection	Electronic fuel injection, 53 mm throttle bodies
