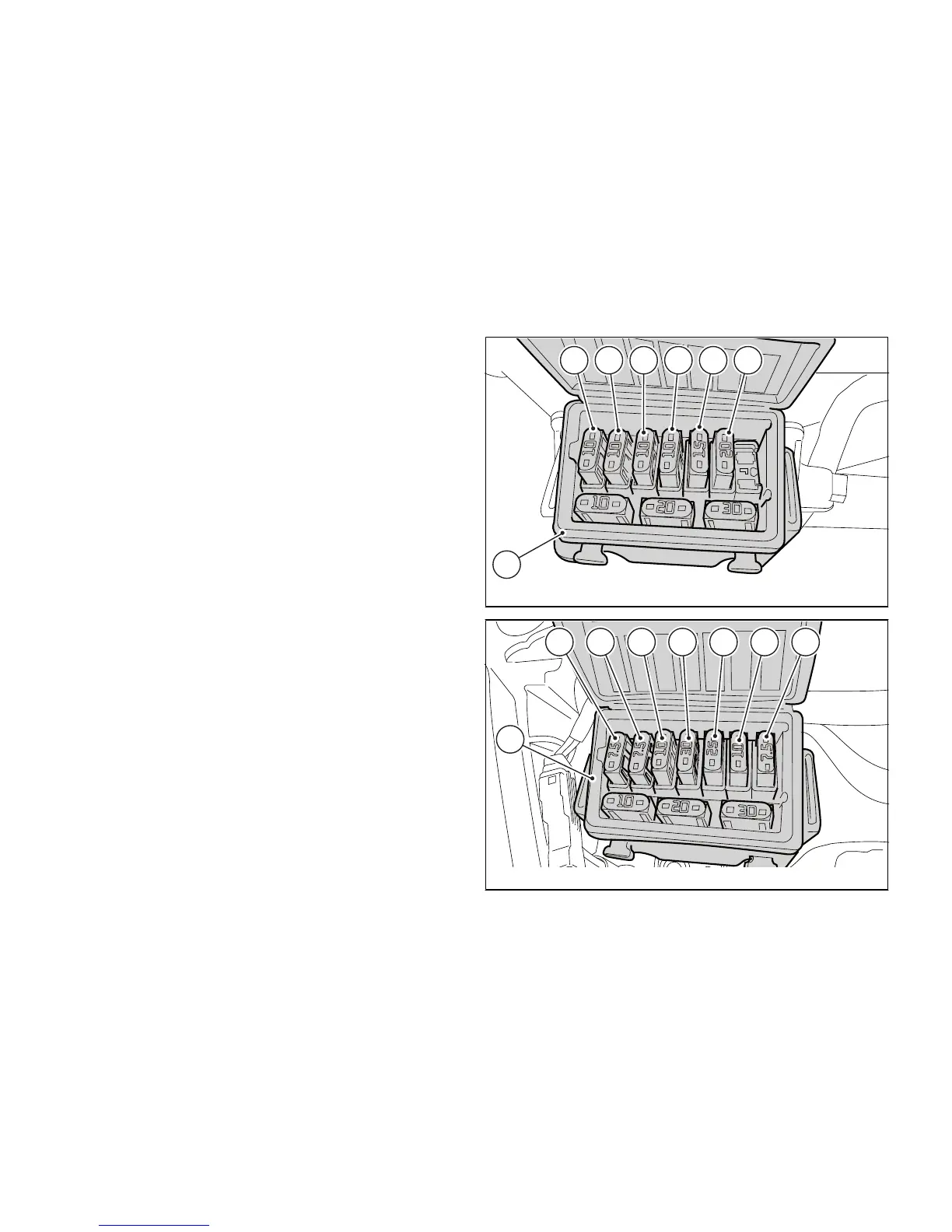

The front fuse box (A, Fig. 159) is located on the LH
side and can be accessed by removing the front LH
side fairing. To expose the fuses, lift the box
protective cover. Mounting position and ampere
capacity are marked on box cover.
The rear fuse box (B, Fig. 160) is located under the
seat, close to the ABS control unit. To gain access to
rear fuse box, remove seat, refer to page 140. To
expose the fuses, take off the box protective cover.
Mounting position and ampere capacity are marked
on box cover.
A
1 2 3 4 5 6
Fig. 159
1
B
2 3 4 5 6 7
Fig. 160
