Ducati MULTISTRADA V4 User Manual

 menu - DRL
This function allows  the status of the DRL in
automatic or manual mode. Available only if daytime
running lights (DRL) are present.
●

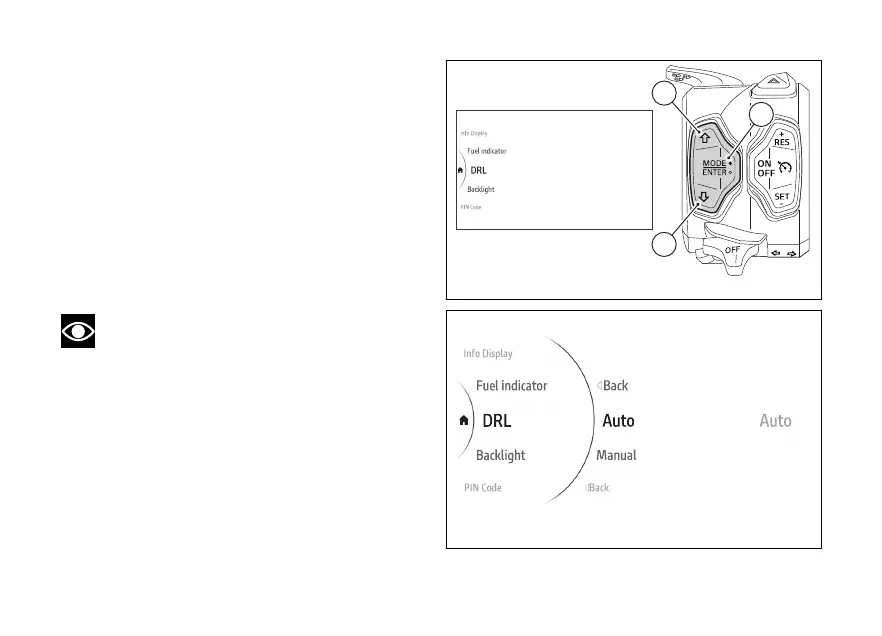

Use  (1) and (2) from the Interactive
Menu to select the  menu item and press
ENTER (3).
●
Select the DRL item and press ENTER (3).
Auto and Manual are displayed in the middle. While
the currently set mode is shown on the right.
Use  (1) and (2) to scroll and select the desired
mode. Press ENTER (3) to confirm.
Note
In case of  disconnection, the "Auto"
mode is automatically set.
1
3
2
Fig 133
Fig 134
157

Ducati MULTISTRADA V4 Specifications

General

Displacement	1, 158 cc
Power	170 hp (125 kW) @ 10, 500 rpm
Torque	125 Nm (92 lb-ft) @ 8, 750 rpm
Transmission	6-speed with Ducati Quick Shift (DQS) up/down
Bore x Stroke	83 mm x 53.5 mm
Compression Ratio	14:1
Front Wheel Travel	170 mm (6.7 in)
Rear Wheel Travel	180 mm (7.1 in)
Front Tire	120/70 ZR19
Rear Tire	170/60 ZR17
Wheelbase	1, 567 mm (61.7 in)
Dry Weight	215 kg (474 lb)
Curb Weight	240 kg (529 lb)
Fuel Capacity	22 l (5.8 US gal)
Engine Type	V4 Granturismo, 4-cylinder, liquid-cooled
Fuel Injection	Electronic fuel injection system, Øeq 46 mm throttle bodies
Exhaust	Single stainless steel muffler with catalytic converter and 2 lambda probes
Final Drive	Chain
Frame	Aluminum monocoque
Front Brake	2 x Ø 330 mm semi-floating discs, radially mounted Brembo Monobloc 4-piston calipers
Rear Brake	Ø 265 mm disc, 2-piston caliper
Seat Height	Adjustable 840-860 mm (33.1-33.9 in)
Safety Equipment	Cornering ABS, Ducati Traction Control
Standard Equipment	Cruise Control, TFT color display
