Ducati MULTISTRADA V4 User Manual

Checking drive chain tension

Have chain tension adjusted by a Ducati Dealer
or authorised Service Centre.
Make the rear wheel turn until you find the position
where chain is tightest. Set the motorcycle on the
side stand. With just a finger, push down the chain at
the point of measurement and release.

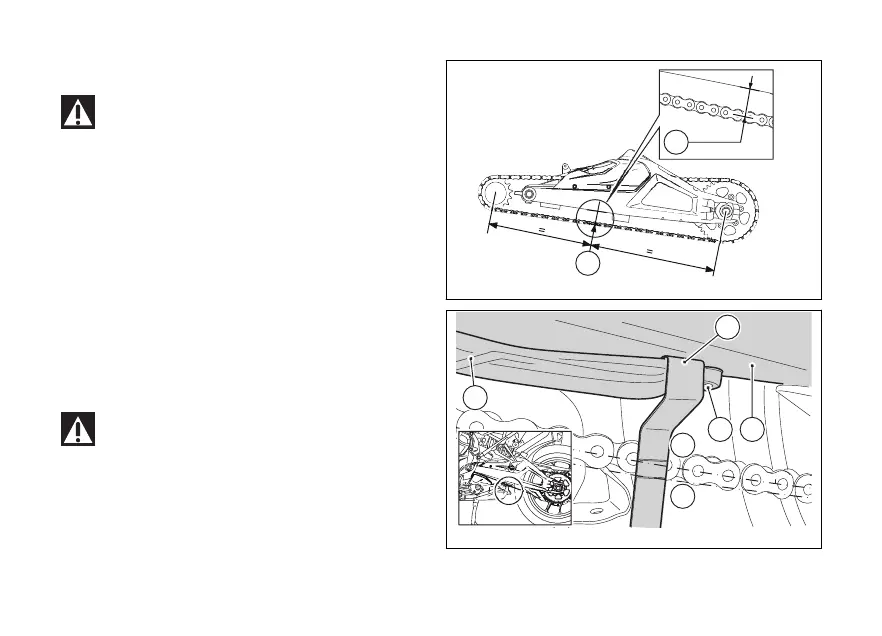

Position the chain tensioning measuring gauge (1)
between the slider (2) and swingarm (3), fully home
on the rear screw (4) and ensure that the centre of
the chain pins is between the notches (B) and (C) of
the gauge.
In this case, the gap (A) between the centre of the
chain pins and the slider, for chain tensioning, is
permissible when: A = 33 ÷ 35 mm (1.30 ÷ 1.38) in.

This only applies to the motorcycle STANDARD
 available upon delivery.
A
A
Fig 221
3
1
2
4
A
B
Fig 222
218

Ducati MULTISTRADA V4 Specifications

General

Displacement	1, 158 cc
Power	170 hp (125 kW) @ 10, 500 rpm
Torque	125 Nm (92 lb-ft) @ 8, 750 rpm
Transmission	6-speed with Ducati Quick Shift (DQS) up/down
Bore x Stroke	83 mm x 53.5 mm
Compression Ratio	14:1
Front Wheel Travel	170 mm (6.7 in)
Rear Wheel Travel	180 mm (7.1 in)
Front Tire	120/70 ZR19
Rear Tire	170/60 ZR17
Wheelbase	1, 567 mm (61.7 in)
Dry Weight	215 kg (474 lb)
Curb Weight	240 kg (529 lb)
Fuel Capacity	22 l (5.8 US gal)
Engine Type	V4 Granturismo, 4-cylinder, liquid-cooled
Fuel Injection	Electronic fuel injection system, Øeq 46 mm throttle bodies
Exhaust	Single stainless steel muffler with catalytic converter and 2 lambda probes
Final Drive	Chain
Frame	Aluminum monocoque
Front Brake	2 x Ø 330 mm semi-floating discs, radially mounted Brembo Monobloc 4-piston calipers
Rear Brake	Ø 265 mm disc, 2-piston caliper
Seat Height	Adjustable 840-860 mm (33.1-33.9 in)
Safety Equipment	Cornering ABS, Ducati Traction Control
Standard Equipment	Cruise Control, TFT color display
