Vehicle 
Before  the motorcycle using another
vehicle, follow the safety instructions below.
1) Remove all loose objects and accessories from
the vehicle;
2) Align the front wheel straight in the riding
direction and lock it properly to prevent any
movement;
3) Engage the first gear;
4) Use the anchoring straps and apply them to
strong components (e.g. frame) and NOT to the
handlebar (or handlebars, where present) or to
components that could break (e.g. handgrips,
rear-view mirrors, etc.);
5) The straps or ropes must NOT rub against any
painted motorcycle components;
6) The suspensions, if possible, must be in a
 compressed position so as to allow less
movement of the vehicle with respect to the
road  during 
Do NOT  the ropes to the handlebar.

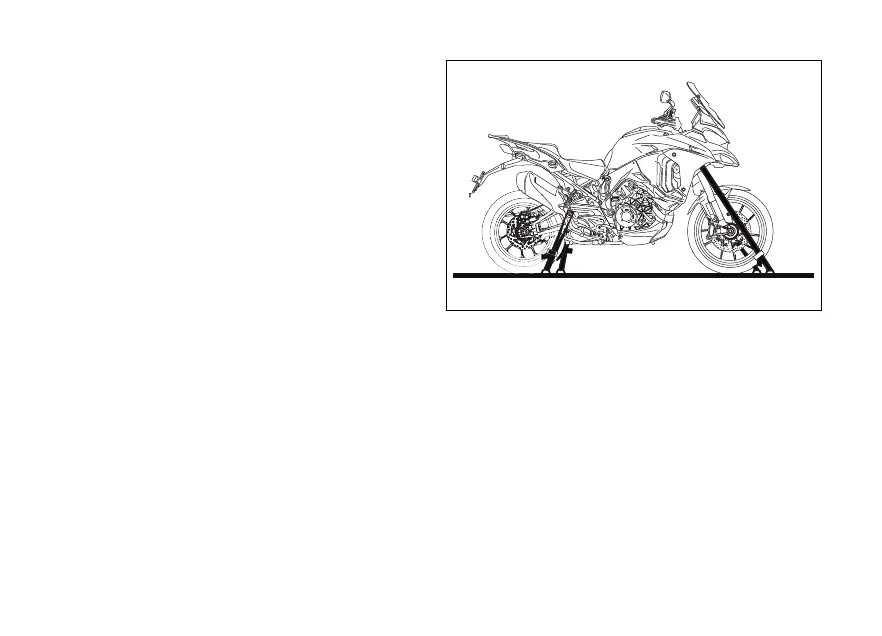

Fig 236
237

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Ducati MULTISTRADA V4 and is the answer not in the manual?

Ducati MULTISTRADA V4 Specifications

General IconGeneral
Displacement1, 158 cc
Power170 hp (125 kW) @ 10, 500 rpm
Torque125 Nm (92 lb-ft) @ 8, 750 rpm
Transmission6-speed with Ducati Quick Shift (DQS) up/down
Bore x Stroke83 mm x 53.5 mm
Compression Ratio14:1
Front Wheel Travel170 mm (6.7 in)
Rear Wheel Travel180 mm (7.1 in)
Front Tire120/70 ZR19
Rear Tire170/60 ZR17
Wheelbase1, 567 mm (61.7 in)
Dry Weight215 kg (474 lb)
Curb Weight240 kg (529 lb)
Fuel Capacity22 l (5.8 US gal)
Engine TypeV4 Granturismo, 4-cylinder, liquid-cooled
Fuel InjectionElectronic fuel injection system, Øeq 46 mm throttle bodies
ExhaustSingle stainless steel muffler with catalytic converter and 2 lambda probes
Final DriveChain
FrameAluminum monocoque
Front Brake2 x Ø 330 mm semi-floating discs, radially mounted Brembo Monobloc 4-piston calipers
Rear BrakeØ 265 mm disc, 2-piston caliper
Seat HeightAdjustable 840-860 mm (33.1-33.9 in)
Safety EquipmentCornering ABS, Ducati Traction Control
Standard EquipmentCruise Control, TFT color display
