Aligning the headlight
Note
Headlight features two adjusters, one for the
RH beam and one for the LH beam.
Check correct headlight aiming. Position the
motorcycle 10metres (32.8 foot) from a wall or a
screen, the motorcycle must be upright
with the tyres inflated to the correct pressure and
with a rider seated, perpendicular to the
longitudinal axis. On the wall or draw a
horizontal line at the same height from the ground
as the centre of the headlight and a line
aligned with the longitudinal axis of the motorcycle.
If possible, this check in dim light.
When adjusting right and beams, the height of
the upper limit between the dark area and the lit area
must not be more than 9/10 of the height from the
ground of the headlight centre.

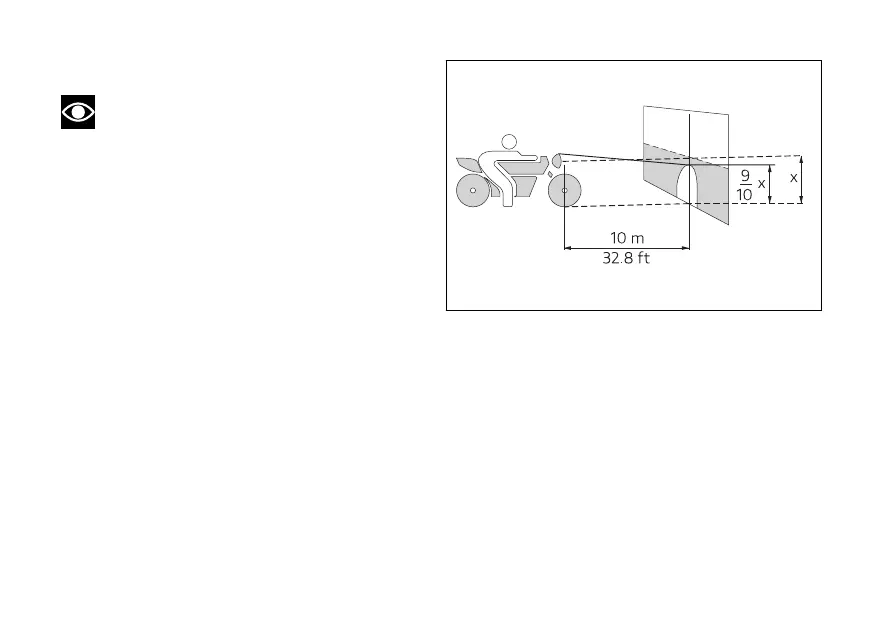

Fig 229
