Ducati MULTISTRADA V4 User Manual

Go to a dark place or to a low light environment.
Switch low beam on and cover the right low beam.

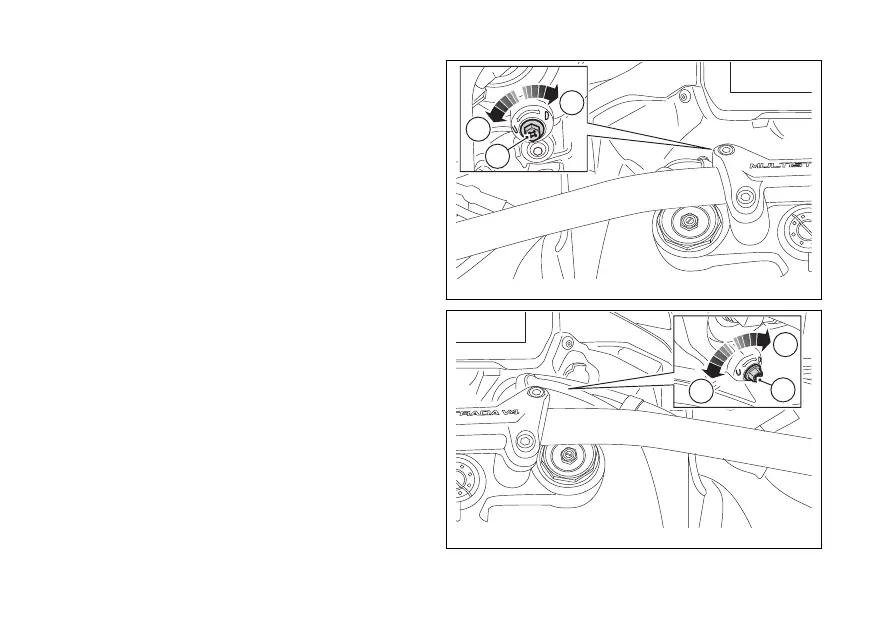

Adjust the uncovered low beam   by
working the adjusting screw (1).
To reach the screw (1) more easily, we recommend
turning the steering all the way to the right.
Turn the screw (1) with a Phillips screwdriver.
Turn screw (1) clockwise to move headlight down (D),
or counter-clockwise to move beam up (U).
Once the  low beam has been adjusted, cover it
and carry out the same procedure using the screw (2)
to adjust the right low beam.
To reach the screw (2) more easily, we recommend
turning the steering all the way to the 
Turn screw (2) clockwise to move headlight down (D),
or counter-clockwise to move beam up (U).
Switch high beam on.
Have the light beam  adjusted at a Ducati
Dealer or Authorised Service Centre.
The headlight lens might fog up if the vehicle is used
under the rain or  washing. Switch headlight on
for a  time to dry up any condensate.
1
U
D
Fig 230
2
U
D
Fig 231
226

Ducati MULTISTRADA V4 Specifications

General

Displacement	1, 158 cc
Power	170 hp (125 kW) @ 10, 500 rpm
Torque	125 Nm (92 lb-ft) @ 8, 750 rpm
Transmission	6-speed with Ducati Quick Shift (DQS) up/down
Bore x Stroke	83 mm x 53.5 mm
Compression Ratio	14:1
Front Wheel Travel	170 mm (6.7 in)
Rear Wheel Travel	180 mm (7.1 in)
Front Tire	120/70 ZR19
Rear Tire	170/60 ZR17
Wheelbase	1, 567 mm (61.7 in)
Dry Weight	215 kg (474 lb)
Curb Weight	240 kg (529 lb)
Fuel Capacity	22 l (5.8 US gal)
Engine Type	V4 Granturismo, 4-cylinder, liquid-cooled
Fuel Injection	Electronic fuel injection system, Øeq 46 mm throttle bodies
Exhaust	Single stainless steel muffler with catalytic converter and 2 lambda probes
Final Drive	Chain
Frame	Aluminum monocoque
Front Brake	2 x Ø 330 mm semi-floating discs, radially mounted Brembo Monobloc 4-piston calipers
Rear Brake	Ø 265 mm disc, 2-piston caliper
Seat Height	Adjustable 840-860 mm (33.1-33.9 in)
Safety Equipment	Cornering ABS, Ducati Traction Control
Standard Equipment	Cruise Control, TFT color display
