Ducati MULTISTRADA V4 User Manual

 menu - Date and time
This function allows  date and time as well as
the relevant formats.
●
Use  (1) and (2) from the Interactive
Menu to select the  menu item and press
ENTER (3).
●
Select the Date and time item and press ENTER
(3).
The items "Set date", "Date format", "Set time" and
"Time format (Fig 149) are displayed. The currently
set values are shown on the right.
With  (1) and (2) it is possible to scroll through
and select the parameter to be set. Press ENTER (3)
to confirm.
Note
If the date or time has not been set yet, dashes
- are displayed instead of the relevant values.
1
3
2

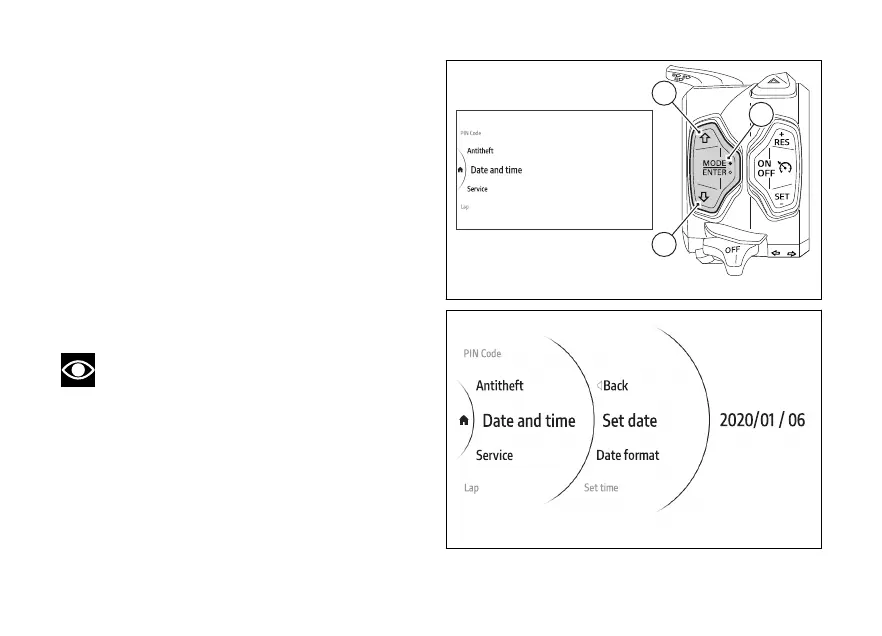

Fig 148
Fig 149
167

Ducati MULTISTRADA V4 Specifications

General

Displacement	1, 158 cc
Power	170 hp (125 kW) @ 10, 500 rpm
Torque	125 Nm (92 lb-ft) @ 8, 750 rpm
Transmission	6-speed with Ducati Quick Shift (DQS) up/down
Bore x Stroke	83 mm x 53.5 mm
Compression Ratio	14:1
Front Wheel Travel	170 mm (6.7 in)
Rear Wheel Travel	180 mm (7.1 in)
Front Tire	120/70 ZR19
Rear Tire	170/60 ZR17
Wheelbase	1, 567 mm (61.7 in)
Dry Weight	215 kg (474 lb)
Curb Weight	240 kg (529 lb)
Fuel Capacity	22 l (5.8 US gal)
Engine Type	V4 Granturismo, 4-cylinder, liquid-cooled
Fuel Injection	Electronic fuel injection system, Øeq 46 mm throttle bodies
Exhaust	Single stainless steel muffler with catalytic converter and 2 lambda probes
Final Drive	Chain
Frame	Aluminum monocoque
Front Brake	2 x Ø 330 mm semi-floating discs, radially mounted Brembo Monobloc 4-piston calipers
Rear Brake	Ø 265 mm disc, 2-piston caliper
Seat Height	Adjustable 840-860 mm (33.1-33.9 in)
Safety Equipment	Cornering ABS, Ducati Traction Control
Standard Equipment	Cruise Control, TFT color display
