Ducati MULTISTRADA V4 User Manual

Set date
This function allows  the date, in the example
shown here the date format is year/month/day.
●
Use  (1) and (2) from the Interactive
Menu to select the  menu item and press
ENTER (3).
●
Select the Date and time item and press ENTER
(3).
●
Select the Set date item and press ENTER (3).

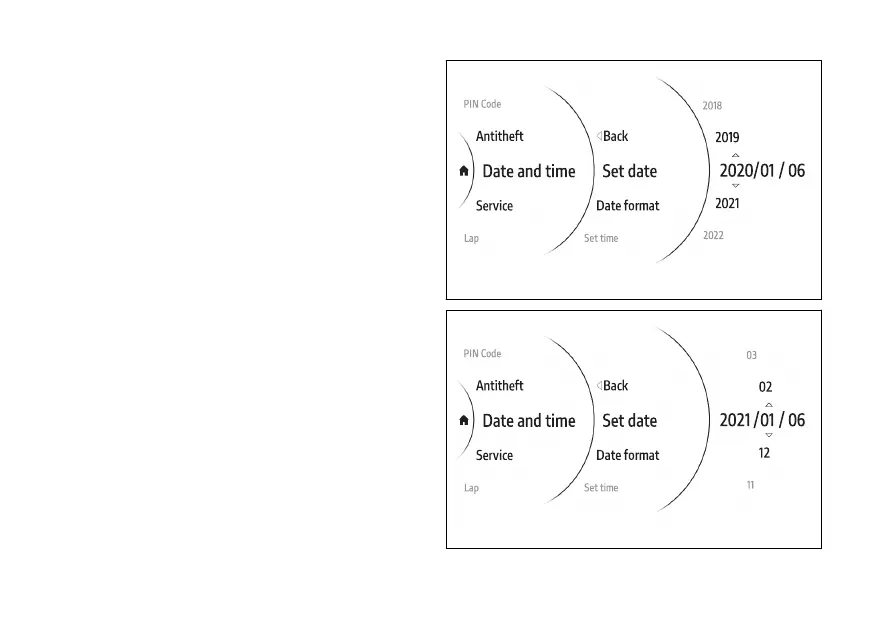

The first parameter of the date
(- the year in the example - Fig 150)becomes
selectable and is displayed with two arrows placed
above and below it; the available values for the
displayed parameter are also displayed. Use 
(1) and (2) to scroll and select the desired value. Press
ENTER (3) to confirm and move on to the following
parameter.
The arrows and available values appear for the
second parameter, which is the
(month in the example shown here, Fig 151). Use
 (1) and (2) to scroll and select the desired
value. Press ENTER (3) to confirm and move on to
the following parameter.
Fig 150
Fig 151
168

Ducati MULTISTRADA V4 Specifications

General

Displacement	1, 158 cc
Power	170 hp (125 kW) @ 10, 500 rpm
Torque	125 Nm (92 lb-ft) @ 8, 750 rpm
Transmission	6-speed with Ducati Quick Shift (DQS) up/down
Bore x Stroke	83 mm x 53.5 mm
Compression Ratio	14:1
Front Wheel Travel	170 mm (6.7 in)
Rear Wheel Travel	180 mm (7.1 in)
Front Tire	120/70 ZR19
Rear Tire	170/60 ZR17
Wheelbase	1, 567 mm (61.7 in)
Dry Weight	215 kg (474 lb)
Curb Weight	240 kg (529 lb)
Fuel Capacity	22 l (5.8 US gal)
Engine Type	V4 Granturismo, 4-cylinder, liquid-cooled
Fuel Injection	Electronic fuel injection system, Øeq 46 mm throttle bodies
Exhaust	Single stainless steel muffler with catalytic converter and 2 lambda probes
Final Drive	Chain
Frame	Aluminum monocoque
Front Brake	2 x Ø 330 mm semi-floating discs, radially mounted Brembo Monobloc 4-piston calipers
Rear Brake	Ø 265 mm disc, 2-piston caliper
Seat Height	Adjustable 840-860 mm (33.1-33.9 in)
Safety Equipment	Cornering ABS, Ducati Traction Control
Standard Equipment	Cruise Control, TFT color display
