Rear fuse box (C) key
Pos El. item Rat.
12 Key1 EMS/ABS/IMU 5 A
13 Key2 Dash/BBS 7.5 A
14 +15 Pos. light 5 A
15
16 Socket 5 A
17 +30 Injection relay 20 A
18 +30 Diagnosis /
Charge
7.5 A

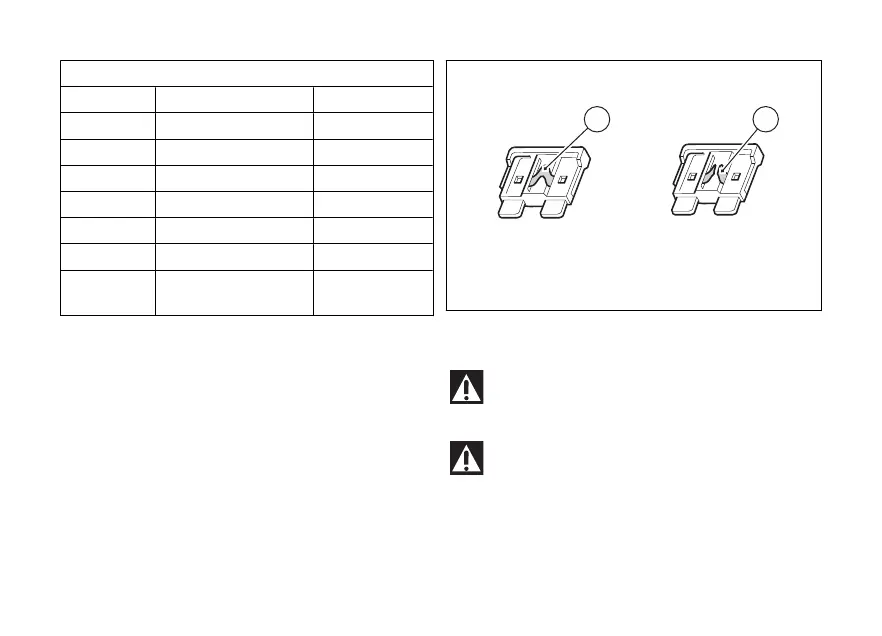

A blown fuse can be identified by breakage of the
inner filament (E).
Switch the ignition key to OFF before replacing
the fuse to avoid possible
Never use a fuse with a rating other than
specified. Failure to observe this rule may damage
the electric system or even cause fire.
Fig 242
259
