Printed in Germany • Edition 02.14 • Nr. 254 722
9 Curve settings/
modulation degree

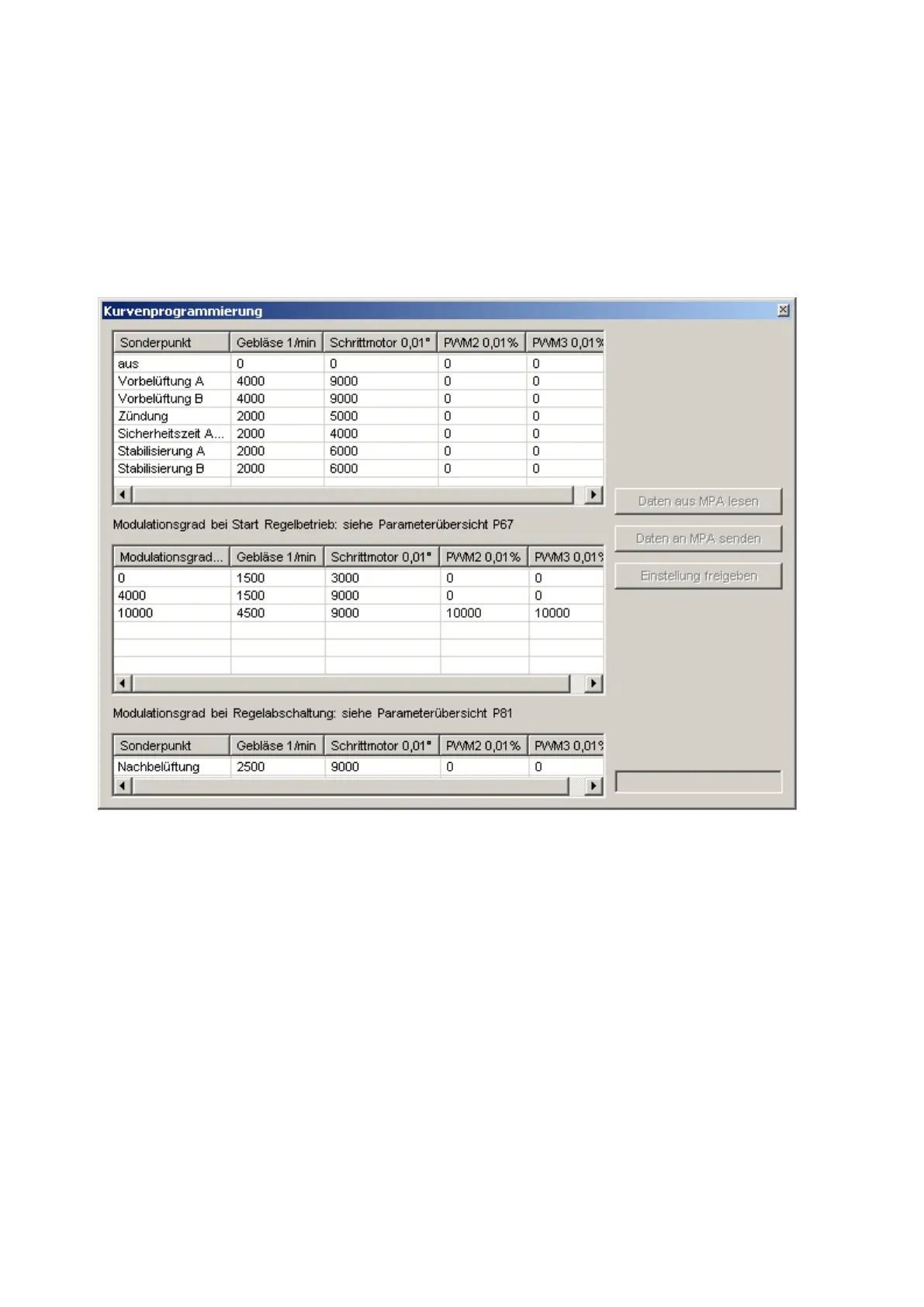

9.1. Stick and VisionBox
The programming of curves is only
possible using the VisionBox and a
parameter record stick! The curves
cannot be processed via the 3 seg-
ments display!
Here you can:
a) read the current settings of the
MPA,
b) change the setting of the modula-
tion degree point and the special
points by a right mouse click,
c) transmit the modied settings
temporarily to the MPA for test
purposes.
Attention! Settings are reset after
a restart of the MPA!
It is possible to plug in the desired
parameter record stick or to start
the respective interface of the ap-
plication software of the connected
VisionBox under "View Program-
ming of curves".
d) apply the modied settings in the
MPA.
Attention! Applied settings are
permanently active and remain
stored.
PWM 2 and PWM 3 can be used ac-
cording to the connected extension
module for analogue output signals
(for ex. 0...10 V or 4...20 mA).
