27

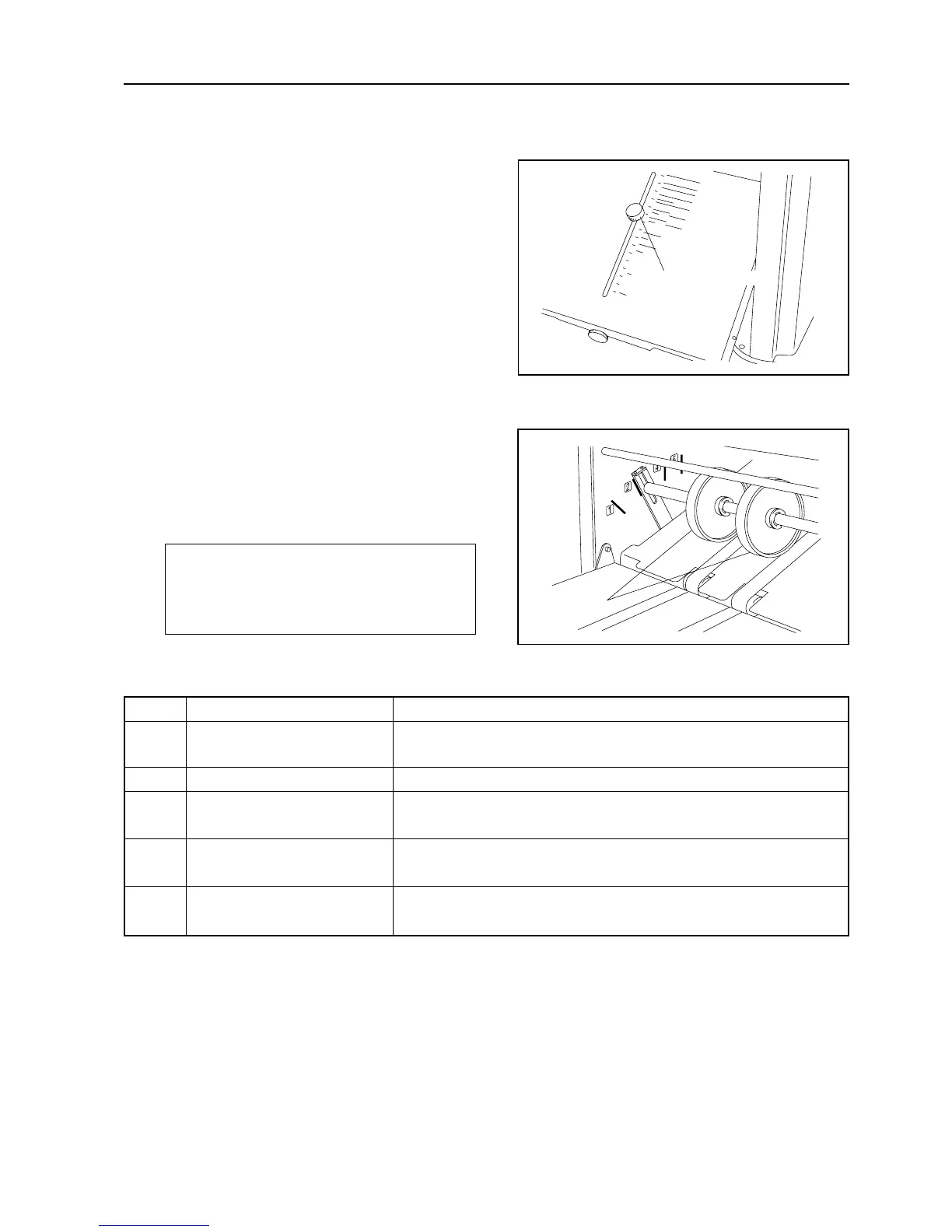

4 Adjust the rough adjustment knob of
the second folding plate to the mark
corresponding to measurement B.
• When carrying out special folding, folding sizes
should be within the following ranges.
Folding range (A) for the first folding plate:
1-5/8 to 12-7/8 inch
Folding range (B) for the second folding plate:
1-5/8 to 8-1/2 inch
Max. paper length (C) when folded:
8-1/2 inch
5 Adjust the position of the stacker
rollers.
• Referring to the table of stacke roller positions,
position the stacker rollers.
As the figures in this table of stacker roller
positions are approximations, select the best
position taking into consideration the folding
speed and paper quality.
7. OPERATION PROCEDURES
Length of Paper Fold
7 — 8-1/2 inch
6 — 7 inch
5 — 6 inch
4 — 5 inch
1-5/8 — 4 inch
Folding Mode
LD : Single Fold, Irregular Accordion Fold, Brochure Fold
Single fold of paper bigger than LD.
LG : Irregular Accordion Fold, Brochure Fold
LT : Single Fold, Irregular Accordion Fold, Brochure Fold
LD : Letter Fold, Accordion Fold
LG : Letter Fold, Accordion Fold
LD : Double Fold
LT : Double Fold, Letter Fold, Accordion Fold
LG : Double Fold
Number
1
2
3
4
5
Rough adjustment knob
Stacker rollers
