Duplo DUPRINTER DP-440 - Removal of Rear Cover; Removal of Battery PCB Unit,P-Memory PCB Unit, Main PCB Unit and Master Sensor; Z Exterior

110
z Exterior
chap.3

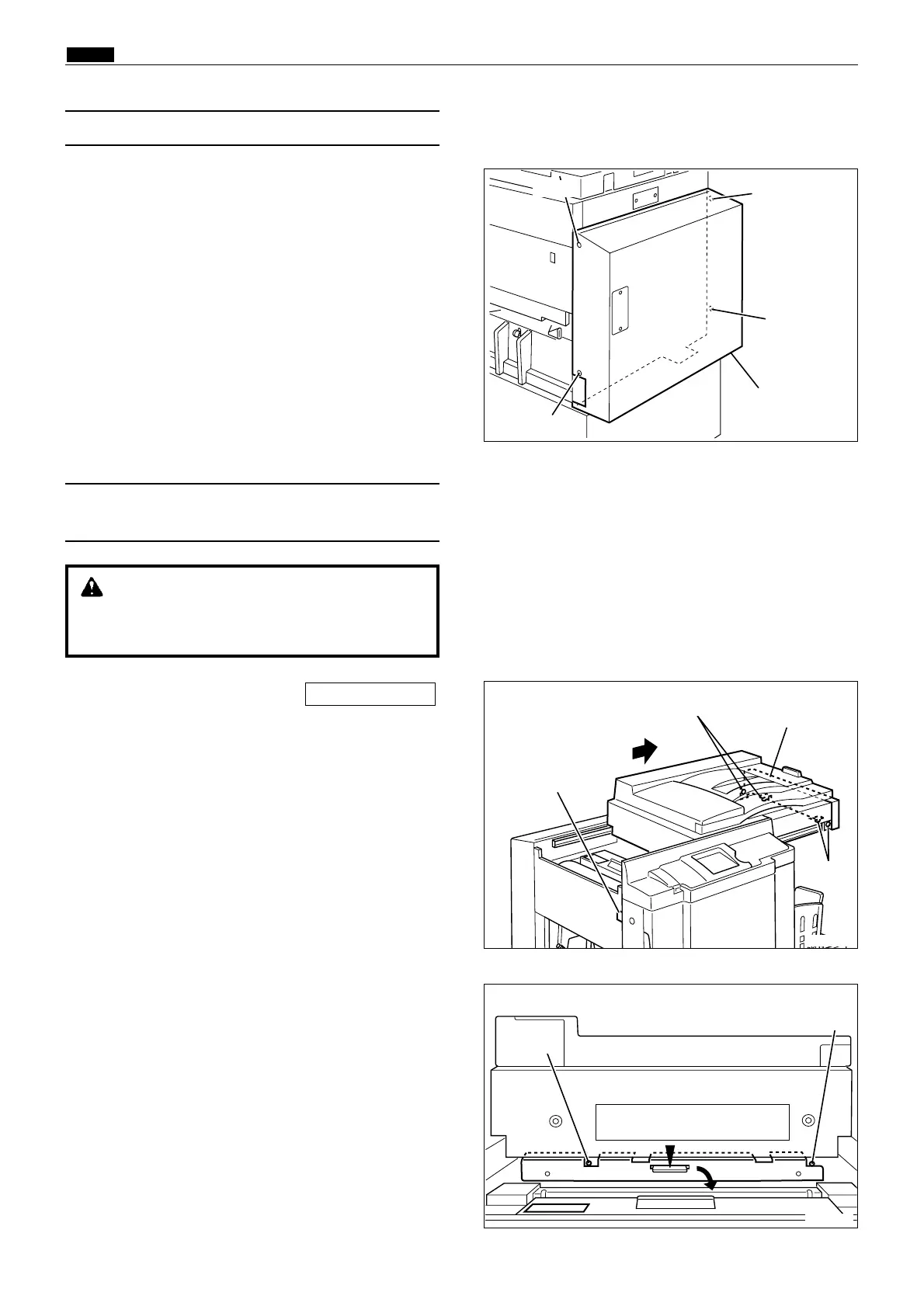

(4) Removal of Rear Cover
1) Remove the 4 screws indicated, then remove the
rear cover.
440036
Screw
Rear cover
(5) Removal of Main PCB Unit ,P-memory PCB
Unit, Battery PCB unit and Master Sensor
1) Remove the scanner cover(L,R).
2) Press the Scanner switch to slide the scanner to
its far position.
\See page 109
WARNING
¡Always remove the power cord plug from
the outlet before replacing a PCB Unit.
440103
440104
4) Loosen the 2 screws, and slide the connector
bracket A downwards.
Scanner switch
Screw
Screw
Screw
ScrewScrew
3) Remove the 4 screws indicated, then remove the
scanner side cover R.
Scanner side cover R
Screws
Pinch the connector bracket A
and push down.
Screws
