Duplo DUPRINTER DP-440 - Removal of Master Clump; Removal of Base Unit

140
m Drum Section
chap.3

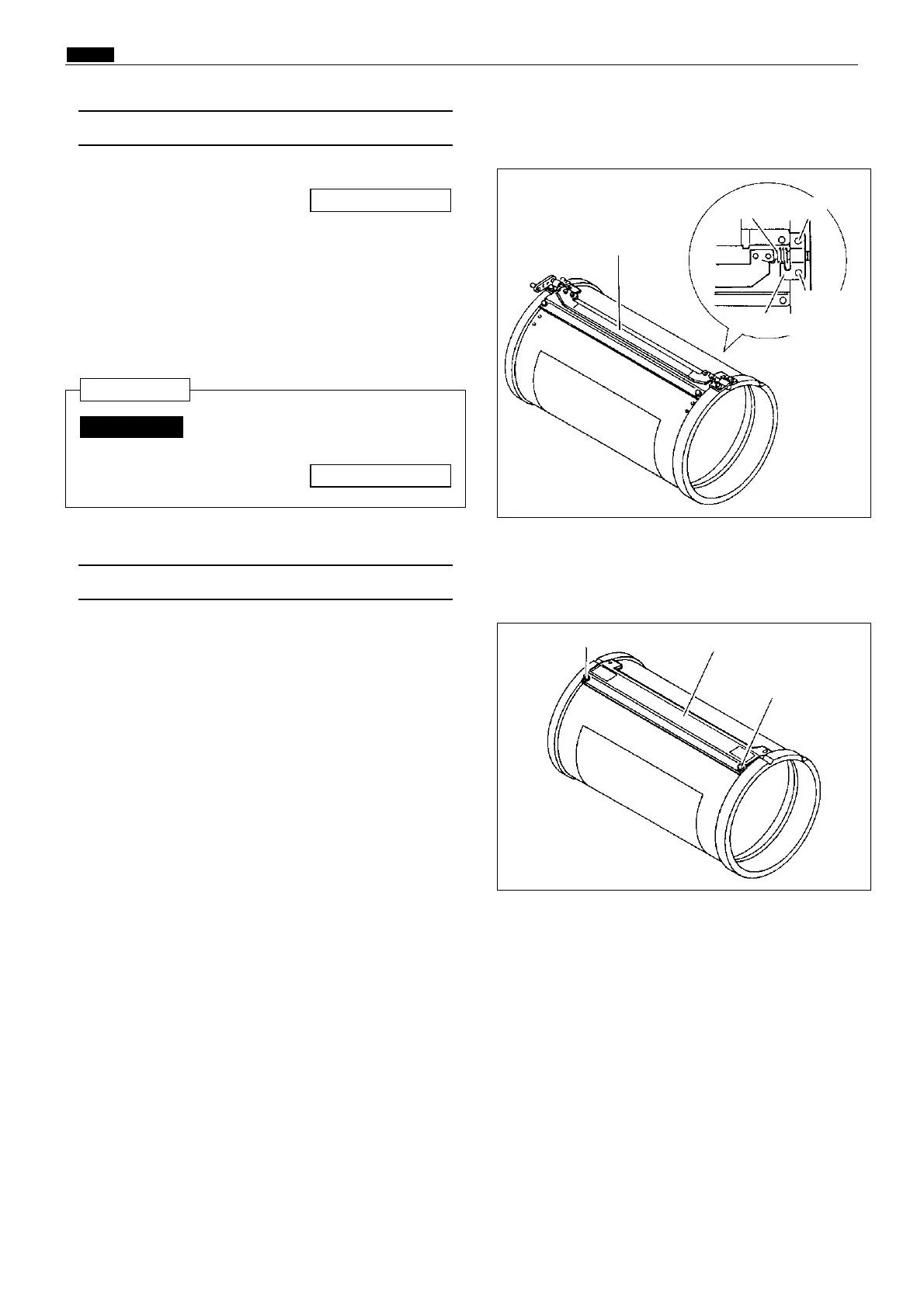

(2) Removal of Master Clump
(3) Removal of Base Unit
1) Remove the screen.
2) Remove 2 screws on the operation side.
3) Remove the bearing plate and spring.
4) Remove 2 screws on the anti-operation side to
take out the bearing plate.
5) Remove the master clump. The master clump is
attached to the base with the magnet.
\See page 139
Adjust the master clump after
installation.
\See page 171
IMPORTANT :
1) Remove the master clump.
2) Remove 2 screws, and remove the base unit.
Reinstallation
Screw
Screw
Screw
Screw
Bearing plate
Spring
Master clump
Base unit
